PART DESCRIPTIONS
4
PART DESCRIPTIONS
Items Width Depth Height Weight
FRONT CABINET 1,220 mm (48.04 in) 900 mm (35.44 in) 1,900 mm (74.81 in) 227 kg (500.45 lb)
REAR CABINET 1,200 mm (47.25 in) 850 mm (33.47 in) 1,470 mm (57.88 in) 236 kg (520.3 lb)
JOINT 1,200 mm (47.25 in) 600 mm (23.63 in) 90 mm (3.55 in) 18 kg (39.69 lb)
BILLBOARD 1,170 mm (46.07 in) 900 mm (35.44 in) 220 mm (8.67 in) 5 kg (11.03 lb)
4

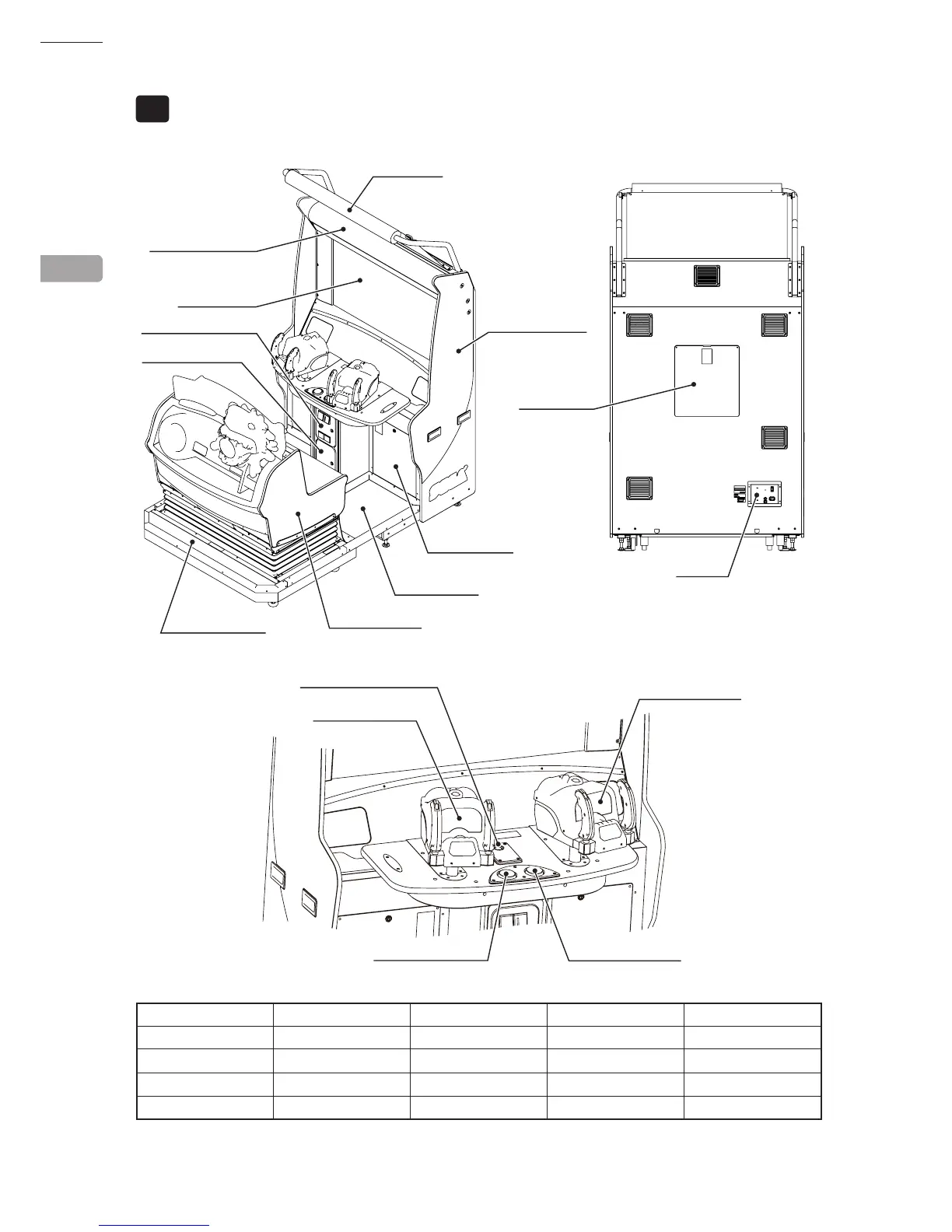

1P START BUTTON
FRONT CABINET
BILLBOARD
2P CONTROLLER
FRONT FL COVER
42 TYPE LCD
COIN CHUTE DOOR
CASHBOX DOOR
REAR FL COVER
JOINT FLOOR
REAR CABINET
FRONT DOOR
AC UNIT
BACK DOOR
2P START BUTTON
1P CONTROLLER
MOTION STOP BUTTON
