BEFORE USING THE MACHINEâ–ºPERIPHERAL DEVICES
INNER FINISHER
This device outputs sorted paper while staggering each set of paper. As needed, it staples each set.
PART NAMES

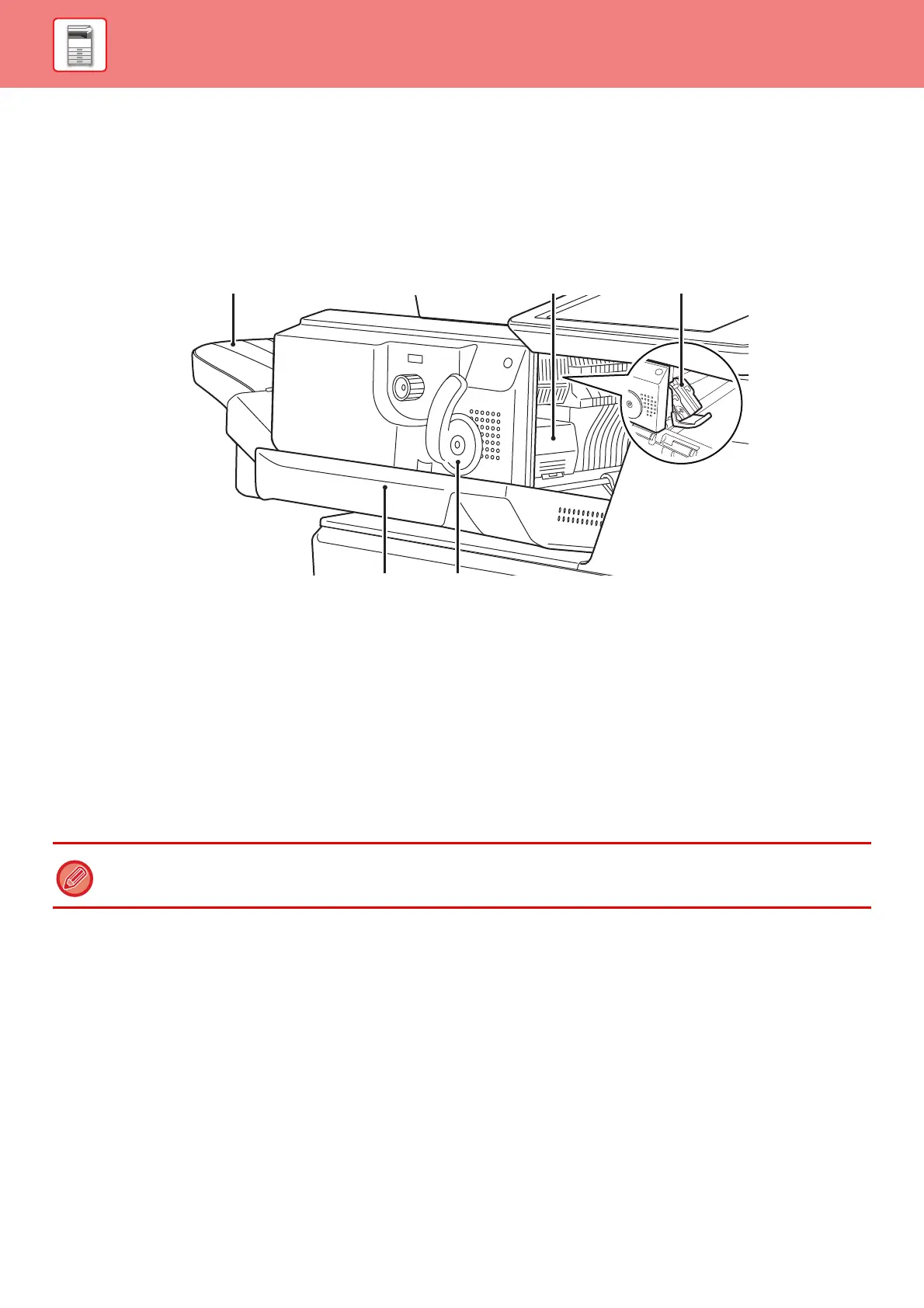

The following describes the parts that appear when the finisher is open.
(1) Output tray
Stapled and offset output is delivered to this tray.
The tray is slidable. To print on large paper, extend the
tray.
(2) Front cover
Open this cover to remove a paper misfeed, replace
staples, or remove a staple jam.
(3) Staple case
This holds the staple cartridge.
Pull the case out to replace the staple cartridge, or
remove a staple jam.
(4) Staple case release lever
Use this lever to remove the staple case.
(5) Lever
Use this lever to move the finisher.
(1) (4) (3)
(2) (5)
Exercise caution when you turn on the power and when printing take place, as the output tray may move up and down.
