10.13 Terminal box GT640

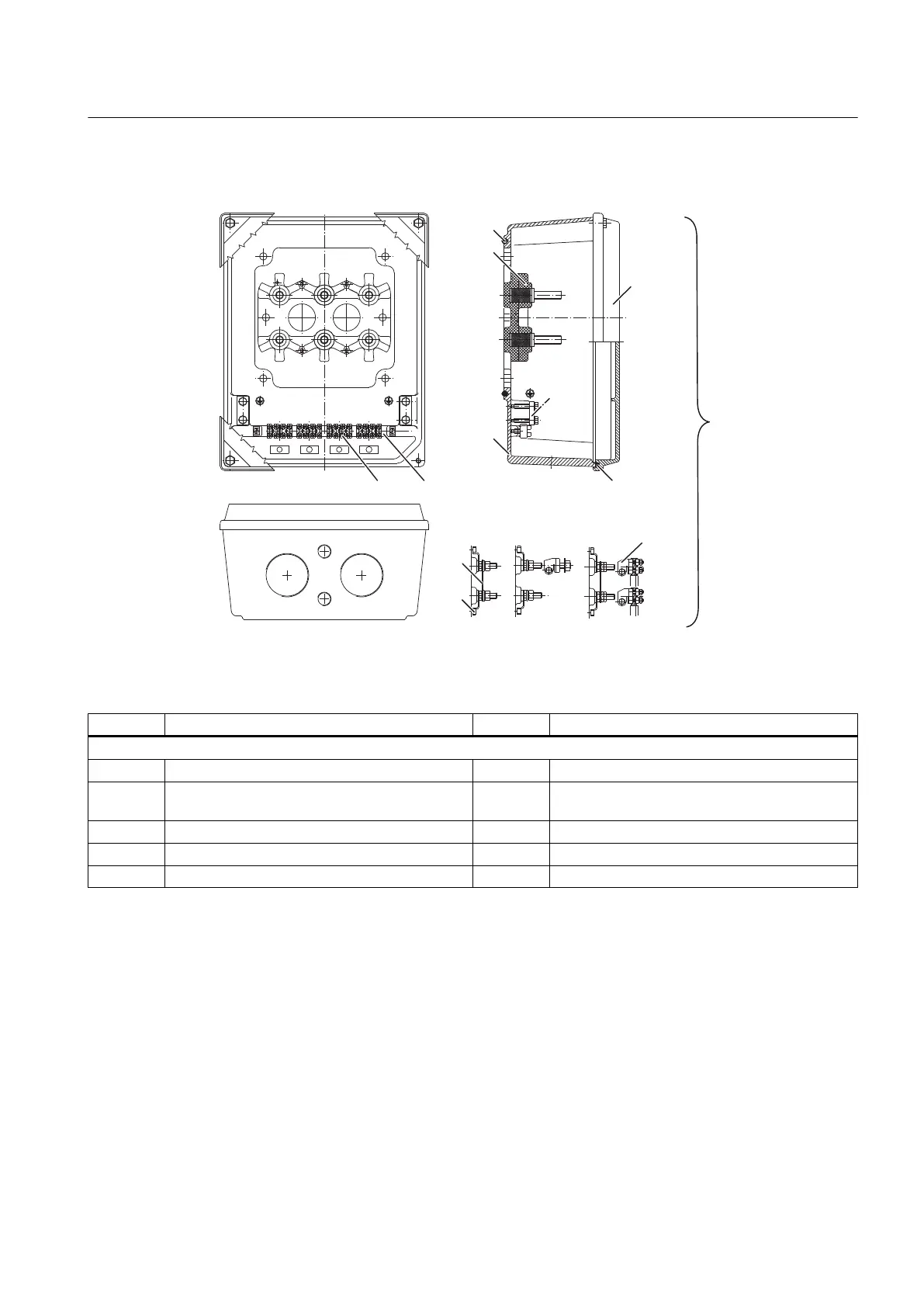

Image 10-8 Terminal box GT640
Table 10-9 Terminal box GT640
Part Description Part Description
20.00 Terminal box without cable entry comprising the following components:
20.20 Housing 21.20 Bushing insulator
20.27 Mounting rail 21.61 Terminals for auxiliary circuits, max. connection
2.5 mm
2
20.28 Seal 22.01 Saddle terminal, complete
20.30 Cover 22.11 Connecting plate with internal cable
20.38 Seal 22.40 Terminal link (two holes)
The terminal box can only be ordered as one component.
The maximum connection cross-section for the main circuit is 240 mm
2
.
Spare parts
10.13 Terminal box GT640
SIMOTICS TN Series N-compact 1LA8
Operating Instructions 05/2016 127
