Rating plate
The rating plate shows the identification data and the most important technical data. The data
on the rating plate and the contractual agreements define the limits of proper usage.
10$; 0,1
5RWRU648&$*(./(1,(&
*HZ:WW
1R16,0%7K&O)
,3
9
+]
$
N:

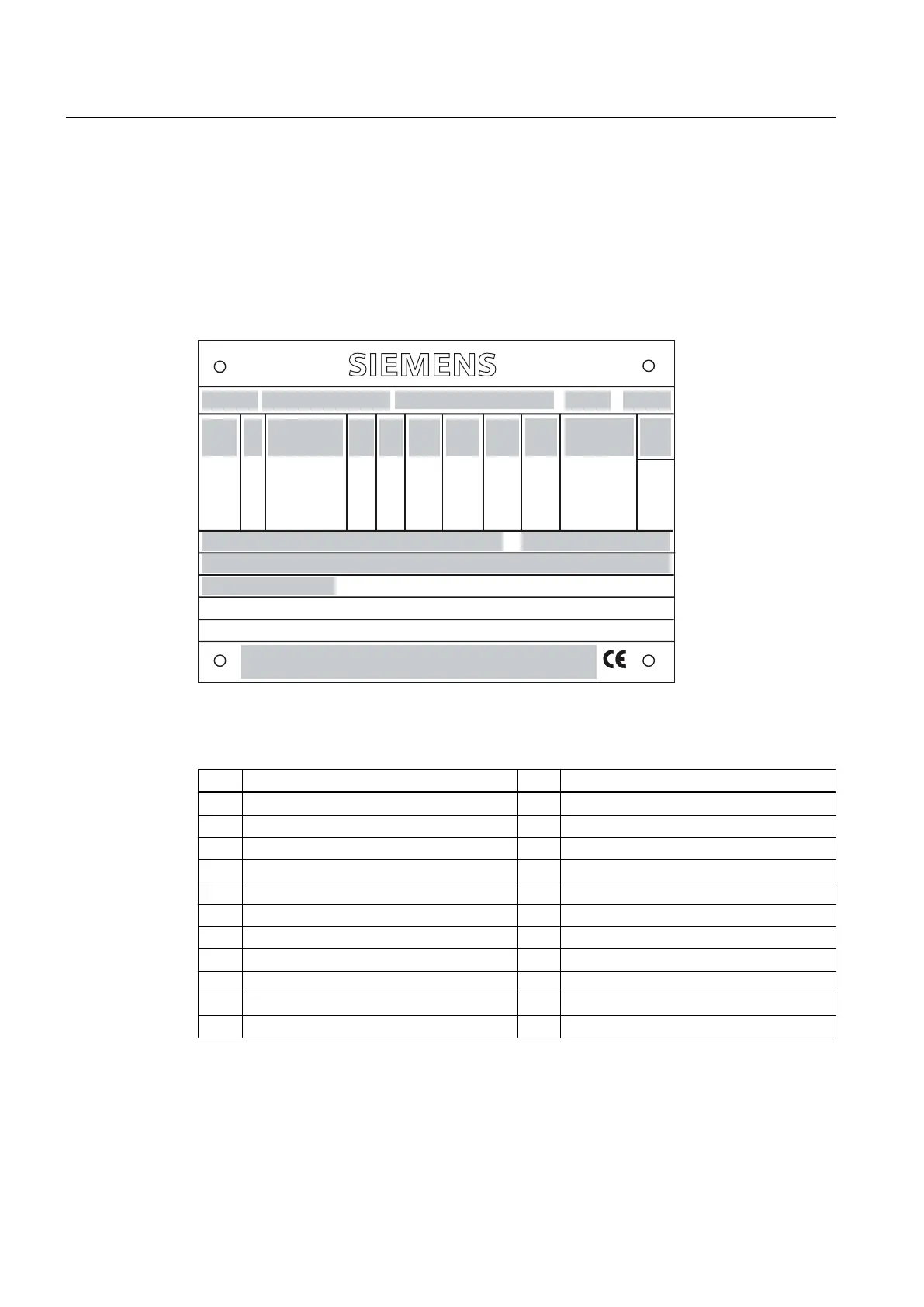

Image 3-1 Schematic diagram of rating plate
Table 3-2 Data on the rating plate
Item Description Item Description
(1) Type of motor (12) Rated speed [rpm]
(2) Motor type (13) Starting current ratio
(3) Serial number (14) (empty)
(4) Type of construction (15) Certificate number
(5) Temperature class (16) Degree of protection
(6) Rated voltage [V] and connections (17) Rotor class
(7) Rated frequency [Hz] (18) Motor weight [kg]
(8) (Content depending on the version) (19) Additional information (optional)
(9) Rated current [A] (20) Maximum speed [rpm]
(10) Rated power [kW] (21) Country of manufacture / City
(11) Power factor [cos φ]
Description
SIMOTICS TN Series N-compact 1LA8
22 Operating Instructions 05/2016
