6.2.4 Terminal box 1XB1634

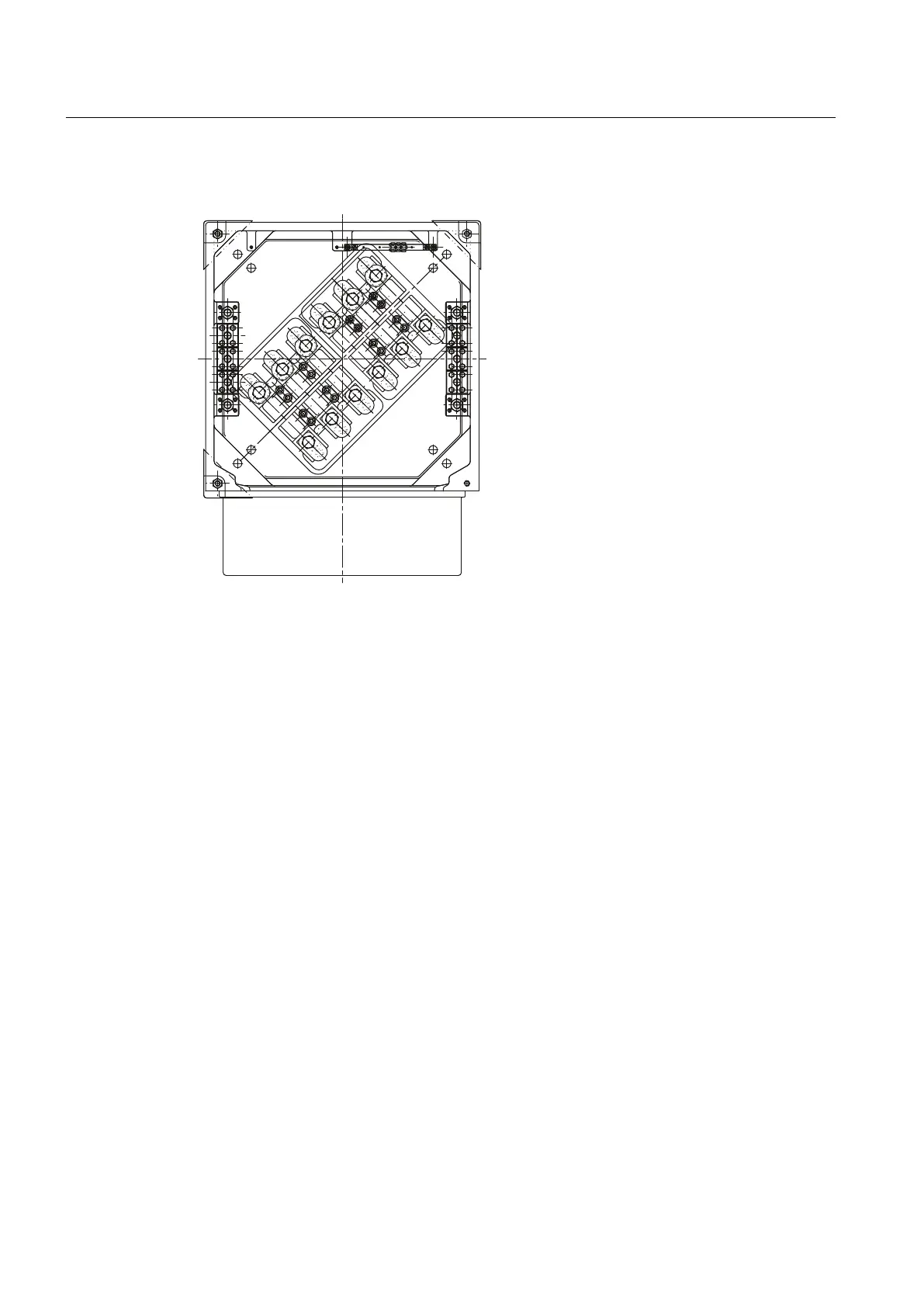

Image 6-4 Terminal box 1XB1634
The connecting cables are introduced into the terminal box 1XB1634 through cable glands
with threaded holes 4 x M80 x 2 and 2 x M25 x 1.5. The cable glands are not included in the
standard scope of supply. The version with onion sealing ring is optional.
For more information, see:
● Inserting the cable into the 1XB16... terminal box with cable gland (Page 68)
● Inserting the cable into the 1XB.. terminal box with ring seal (Page 69)
● Connecting cables with cable lugs (Page 71)
● Connection without cable lugs (Page 71)
Electrical connection
6.2 Terminal box
SIMOTICS TN Series N-compact 1LA8
62 Operating Instructions 05/2016
