14-1
TP27, TP37 Equipment Manual
Release 01/00
Unit Description TP27-6
This chapter provides information on:
S dimensions

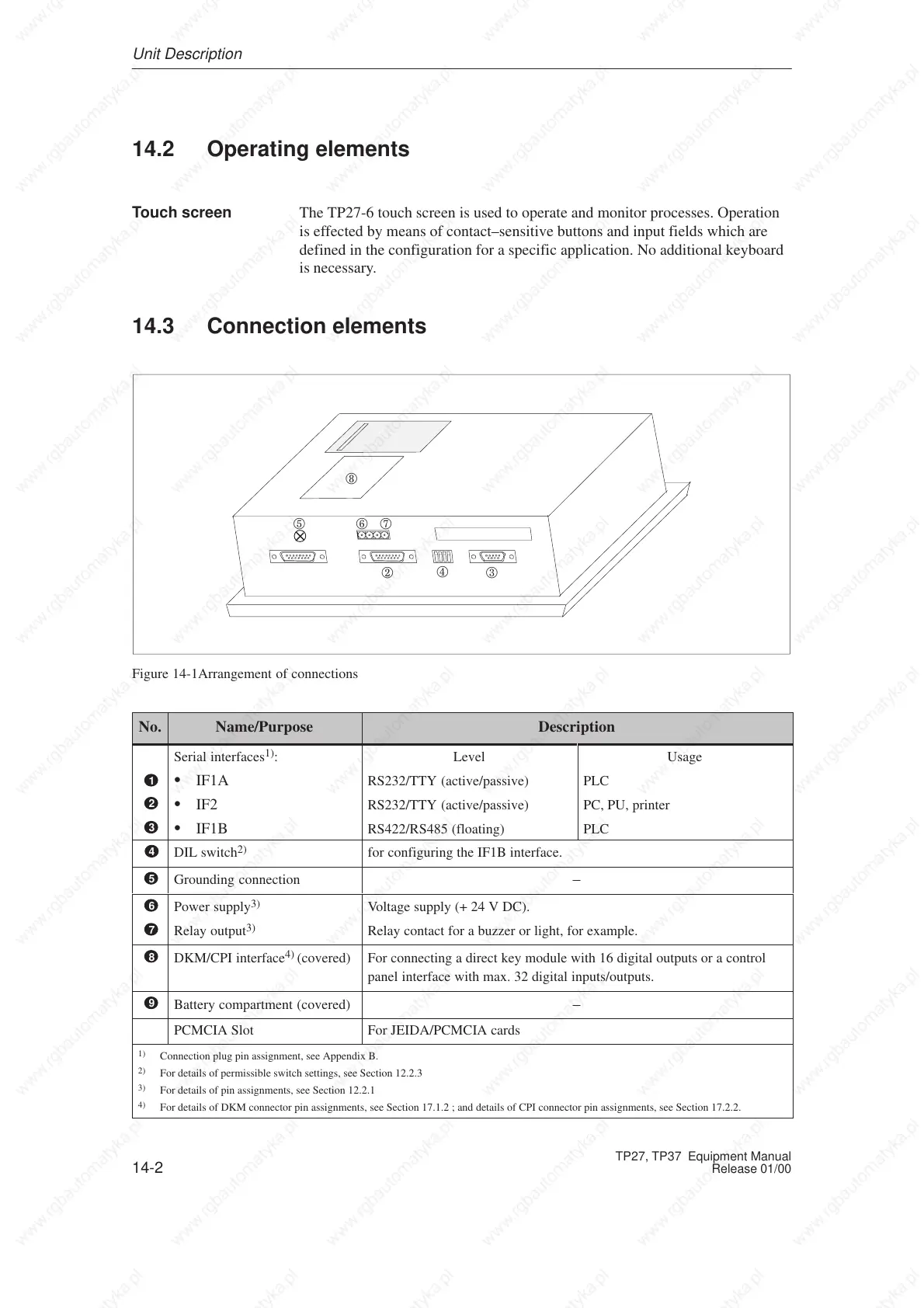

S operating and display elements
S connection elements and
S communication options
of Touch Panel TP27-6.
14.1 Dimensions
The following figure indicates the dimensions of the TP27-6 with the housing
of the direct key module/control panel which is available on option.
ÇÇ
ÇÇ
ÇÇ
ÇÇ
SIMATIC TP27
202
97
65
212
4
CPI/DKM
156
Side viewFront view
Plan view
ÇÇÇÇÇ
ÇÇÇÇÇ
CPI/DKM
146
ÇÇ
ÇÇ
= option
The TP27-6 requires a mounting cutout (WxH) of 203
+1
mm x 147
+1
mm.
In this chapter
Unit dimensions
Mounting cutout
14
