15-2

TP27, TP37 Equipment Manual

Release 01/00

15.1 Dimensions

The following figure indicates the dimensions of the TP27-10 with the housing

of the direct key module/control panel which is available on option.

Side view

Front view

Plan view

ÉÉ

SIMATIC TP27

335

275

247.4

105

ÉÉÉÉÉÉÉÉ

CPI/DKM

309.4

= option

ÉÉ

The TP27-10 requires a mounting cutout (WxH) of 310

mm x 248

mm.

Unit dimensions

Mounting cutout

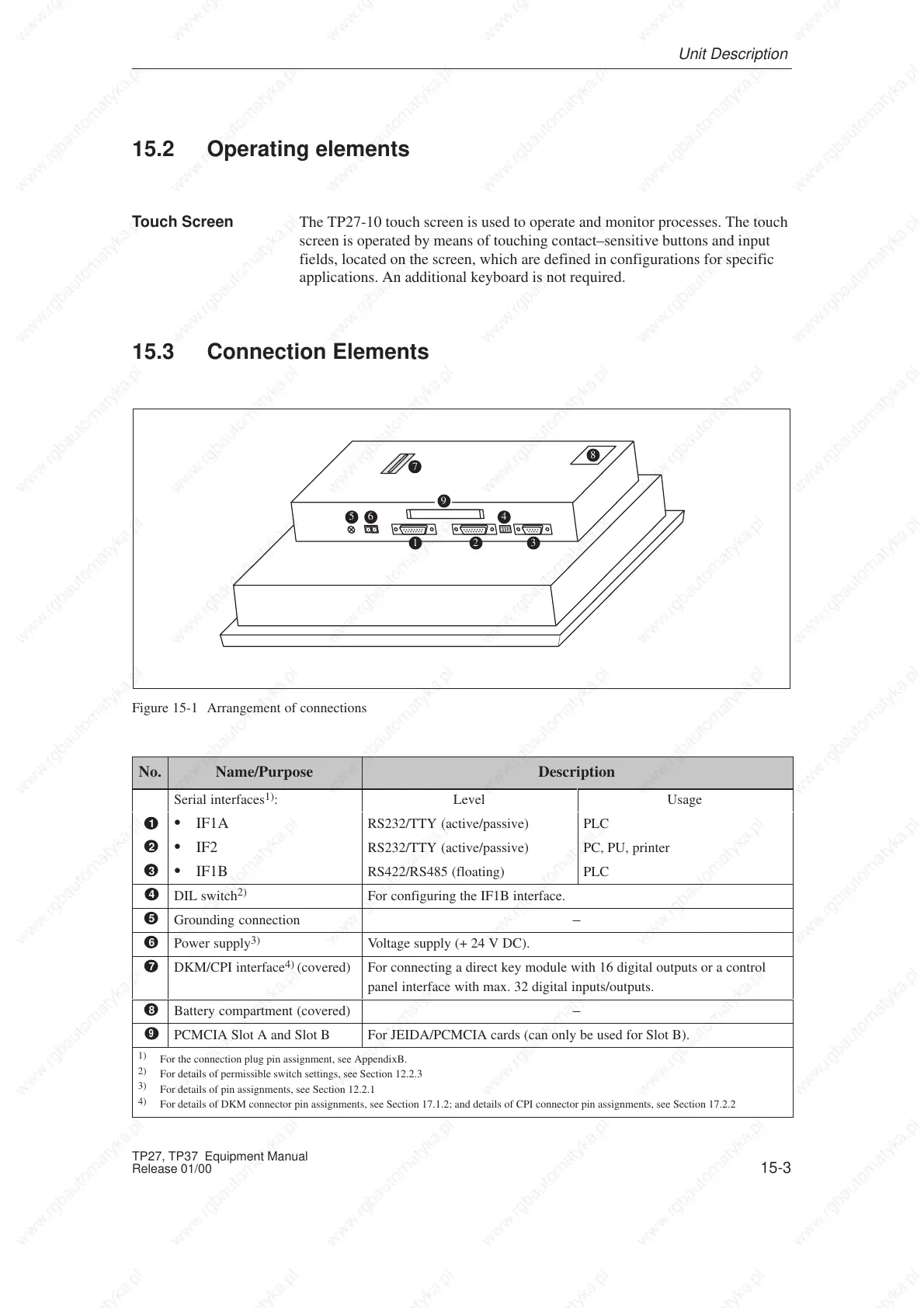

Unit Description

Default Chapter8
