16-2

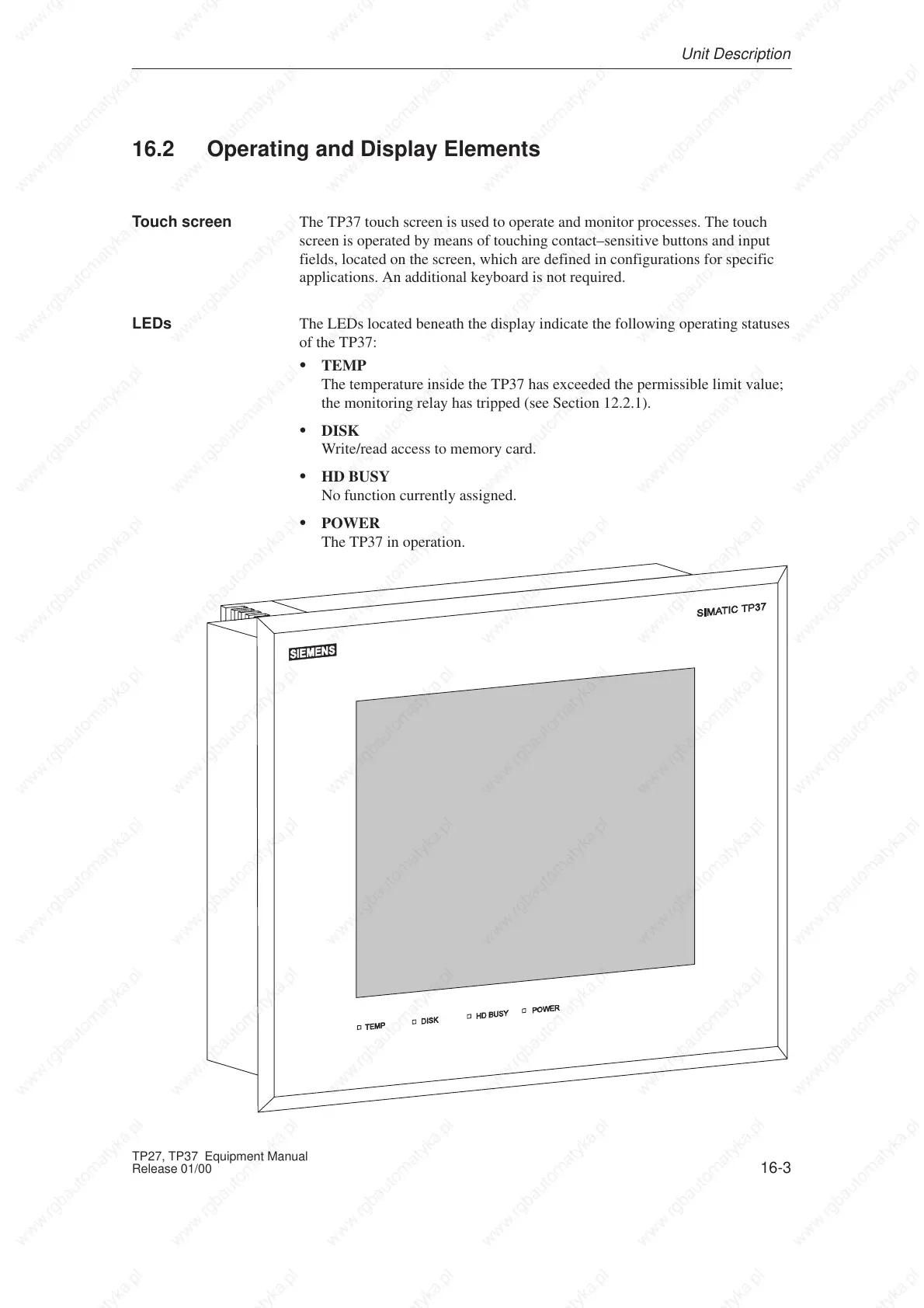

TP27, TP37 Equipment Manual

Release 01/00

16.1 Dimensions

The figure below indicates the dimensions of the TP37 with the housing of the

direct key module/control panel which is available on option.

SIMATIC

TP37

308

123

335

246

275

Side view

Front view

Plan view

ÇÇ

CPI/DKM

ÇÇÇÇÇÇÇÇ

CPI/DKM

ÇÇ

= option

155

The TP37 requires a mounting cutout (WxH) of 310

mm x 248

mm.

Unit dimensions

Mounting cutout
