6-11
TP27, TP37 Equipment Manual
Release 01/00
6.2.1 Opening a Message Page
An overview of the alarm and message events still pending on the Touch Panel
is provided from
S the alarm message screen and
S the event message page.
Open message pages are constantly updated.
In order to open an alarm message page, touch
S the message indicator
or
S the OPEN ALARM MESSAGE SCREEN button on the
Edit Message standard screen
To open the event message page, touch the OPEN EVENT MESSAGE
PAGE button on the Edit Message
standard screen
The event message screen is sorted chronologicaly. The sorted order of the
alarm message screen also depends on the First/Last parameters set on the
System Settings standard page.

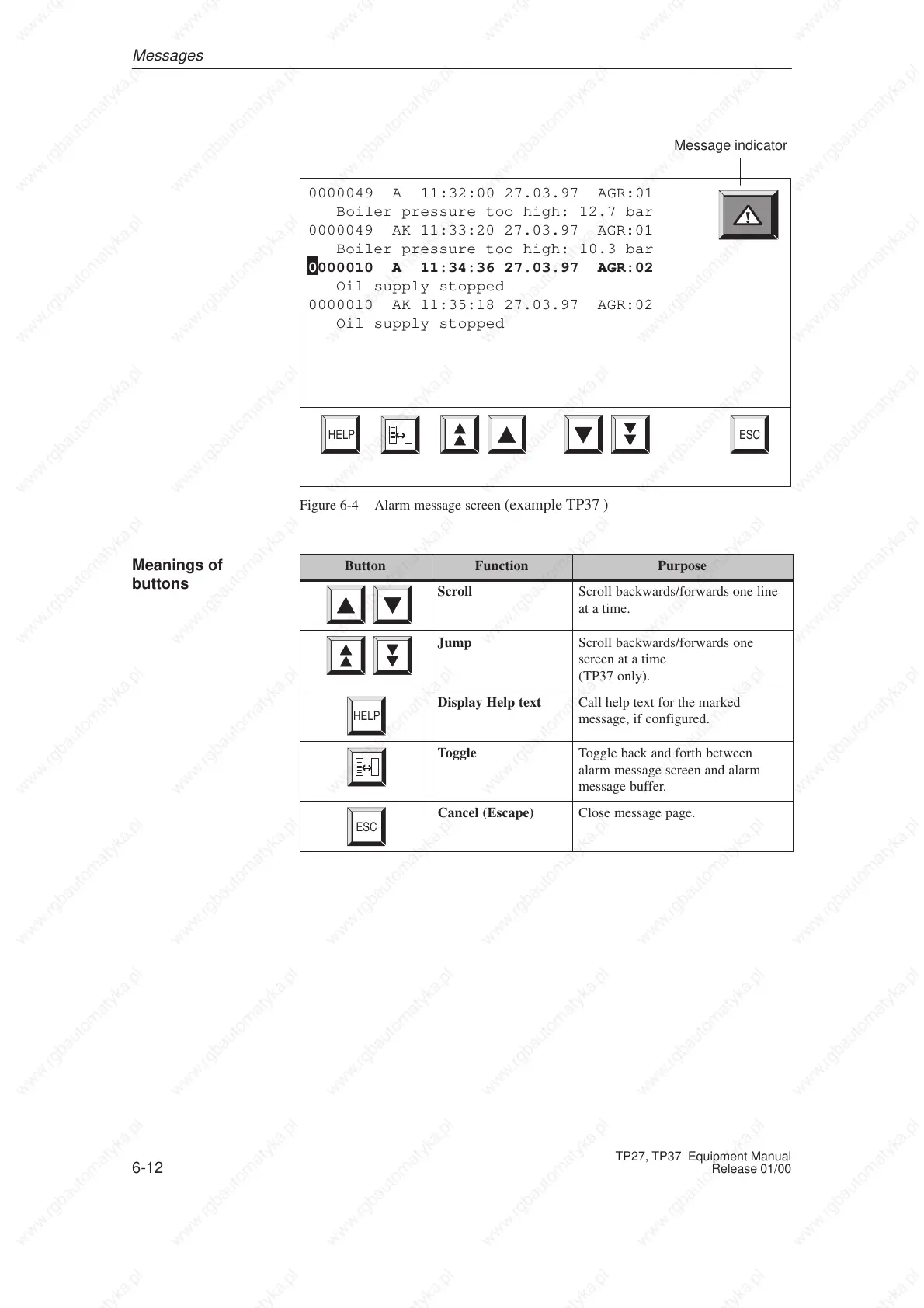

Figure 6-4 depicts an example of an alarm mes-
sage screen.
Depending on the setting, either the oldest (first) or latest (last) message is dis-
played where several messages are pending. This setting can be modified on-
line on the Touch Panel by means of the System Settings standard screen. To
do this, touch the MESSAGE DISPLAY field and select either the FIRST or LAST
parameter from the selection window.
Purpose
Alarm message
page
Event message
page
Structure
Displaying
first/last message
Messages
