A recipe consists of a series of recipe entries. Each entry contains no more than
one input field (tag).
The Mixture recipe might contain the following entries:
Name:
Orange:
Water:
Sugar:
Flavor:
l
l
kg
g
Input fields (variables)
Values are assigned to the input field variables on the Touch Panel and stored.
Together, these values form one data record of the recipe.
Several data records can be created for one recipe. This enables the fruit juice
system, for example, to produce drinks of different kinds. It uses a different
data record for each drink:
Name:
Orange:
Water:
Sugar:
Flavor:
“Mixture” recipe
entries
Beverage
90 l
10 l
1.5 kg
200 g
Nectar
70 l
30 l
1.5 kg
400 g
Juice
95 l
5 l
0.5 kg
100 g
Data record 2 Data record 3Data record 1

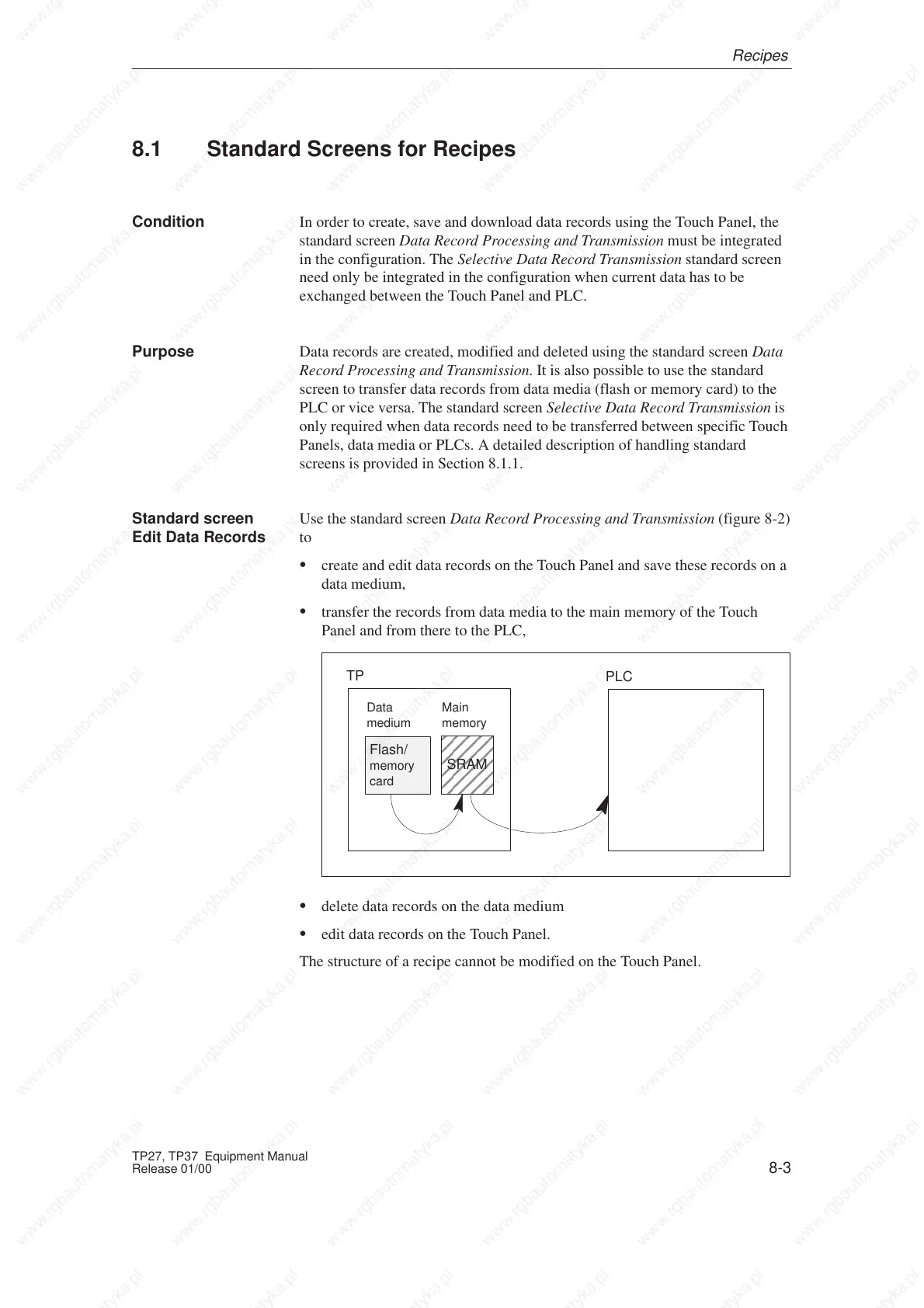

All data records are stored in the Touch Panel. Only the currently active data
record is stored on the PLC. This saves memory space on the PLC.
A recipe is created under a symbolic name in the configuration. The recipe is
then selected using this symbolic name on the Touch Panel.
Ingredients of a
recipe
Data records on
the Touch Panel
Identifying recipes
Recipes
