Operation
102 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
15 Indicators and control elements

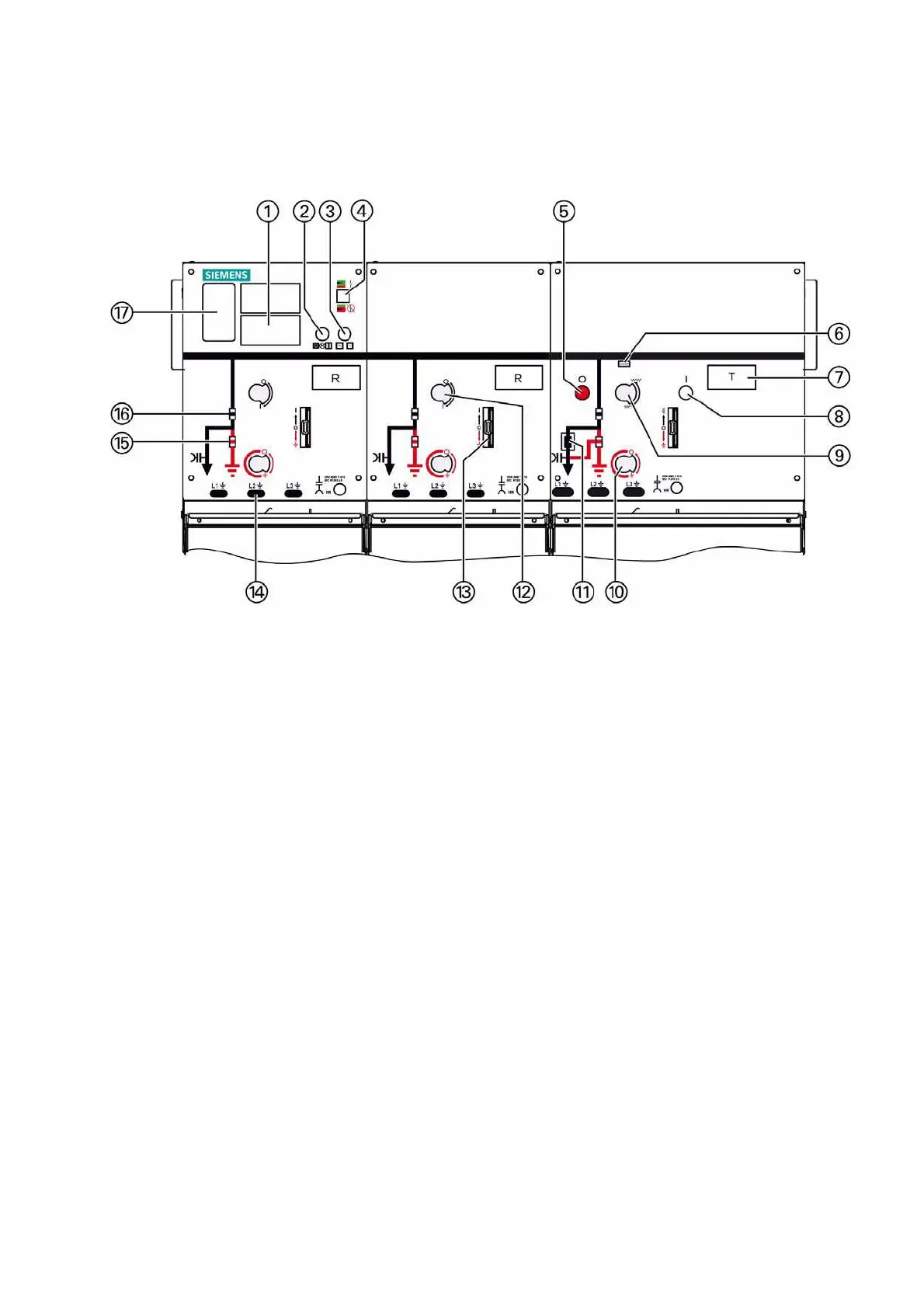

Fig. 71: 8DJH: RRT block
a
Short-circuit/earth-fault indicator
;
Manual operation for the mechanism of
the earthing function CLOSED/OPEN
s
ON/OFF-pushbutton for motor operating mechanism (option)
A
"Fuse tripped" indicator
d
Local/remote switch for motor operating mechanism (option)
S
Manual operation for the mechanism of ’
the load-break function CLOSED/OPEN
f
Ready-for-service indicator
D
Control gate/locking device
(option for three-position switch-disconnector)
g
OFF pushbutton (transformer feeder only)
F
Socket of capacitive voltage detecting system (HR system)
h
Spring "charged/not charged“ indicator
G
Position indicator for earthing switch
j
Feeder designation labels
H
Position indicator for disconnector
k
ON pushbutton (transformer feeder only)
J
Rating plate
l
Actuating opening for SPRING CHARGING
