Installation
82 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
12.5 Retrofit of motor operating mechanism
Options for
motor operating
mechanism
The manual operating mechanisms of 8DJH switchgear can be equipped with motor
operating mechanisms for the three-position switch-disconnector.

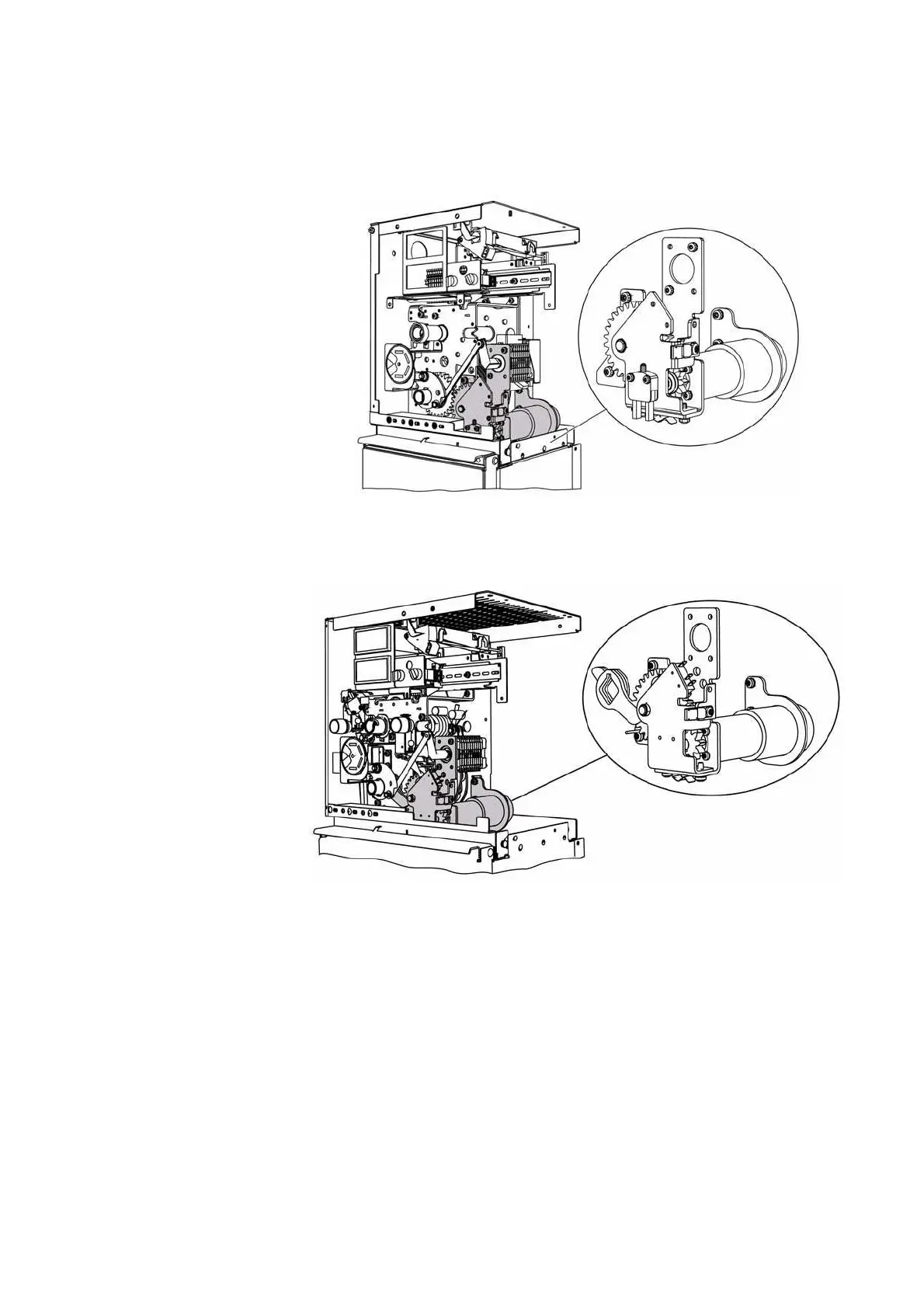

Fig. 53: Motor block assembly of spring-operated mechanism in ring-main feeder
Fig. 54: Motor block assembly of spring-operated/stored-energy mechanism
in transformer feeder
