500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 81
Installation
12.4 Switchgear earthing
In the case of non-extendable switchgear, the switchgear is connected to the substation
earth through an earthing bolt.
Ö In blocks with up to 4 panels, it is enough to the connect them to the substation
earth once.
Ö In panel groups of more than 4 panels, earth every fifth panel.

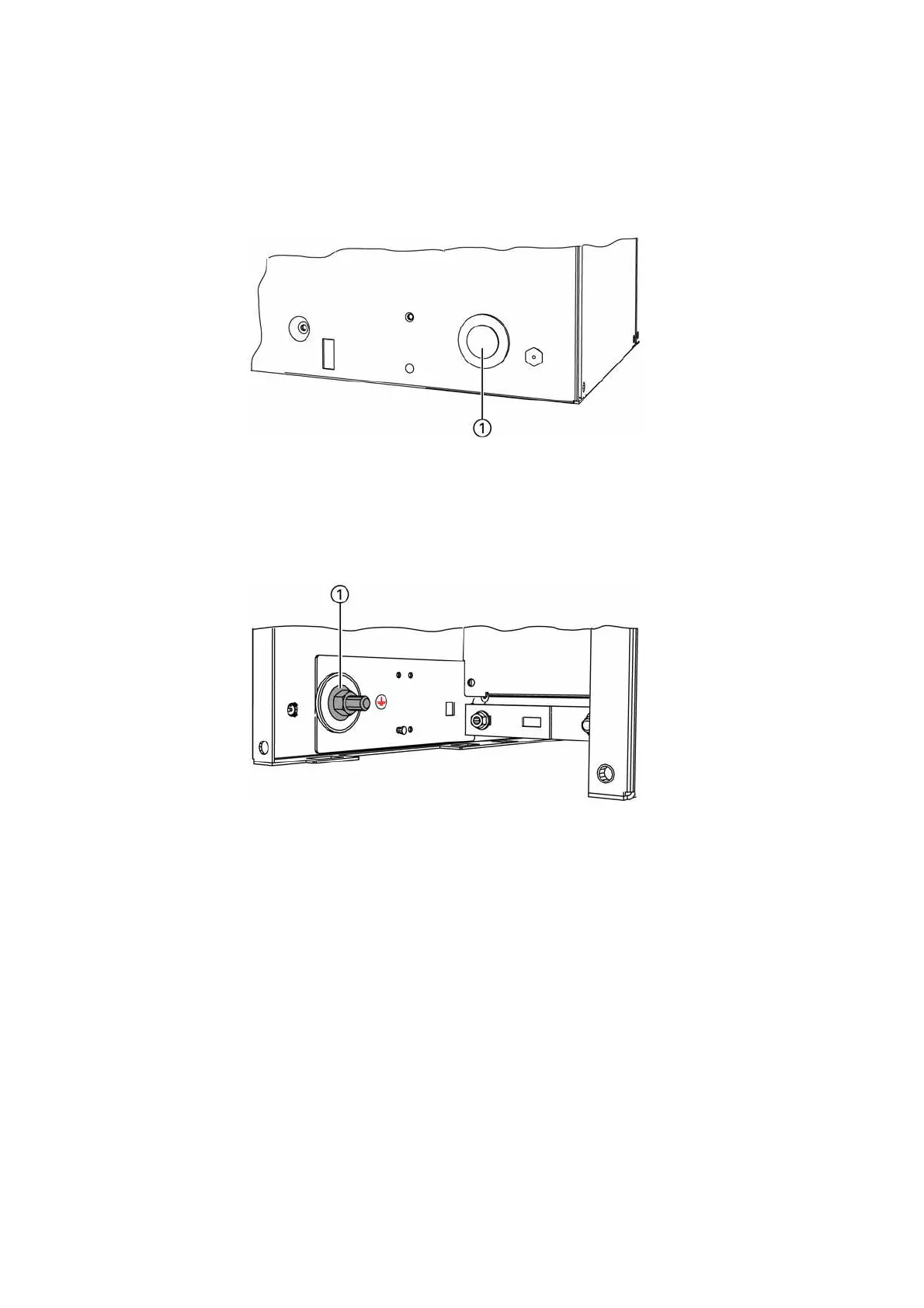

Fig. 51: Earthing via earthing point in non-extendable
switchgear on the left or right switchgear side - view
from outside on the right
a
Earthing point
(earthing bolt M12)
Fig. 52: View into cable compartment

Siemens 8DJH Series Specifications

General

Insulation medium	SF6 gas
Enclosure	Metal-enclosed
Type	Gas-insulated switchgear
Operating mechanism	Spring mechanism
Dimensions	Varies depending on configuration
Weight	Varies depending on configuration
