500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 39
Description
7.12 Accessories
Accessories, standard
(selection)
• Operating and installation instructions
• Operating lever for disconnector, switch-disconnector and circuit-breaker
• Double-bit key (option)

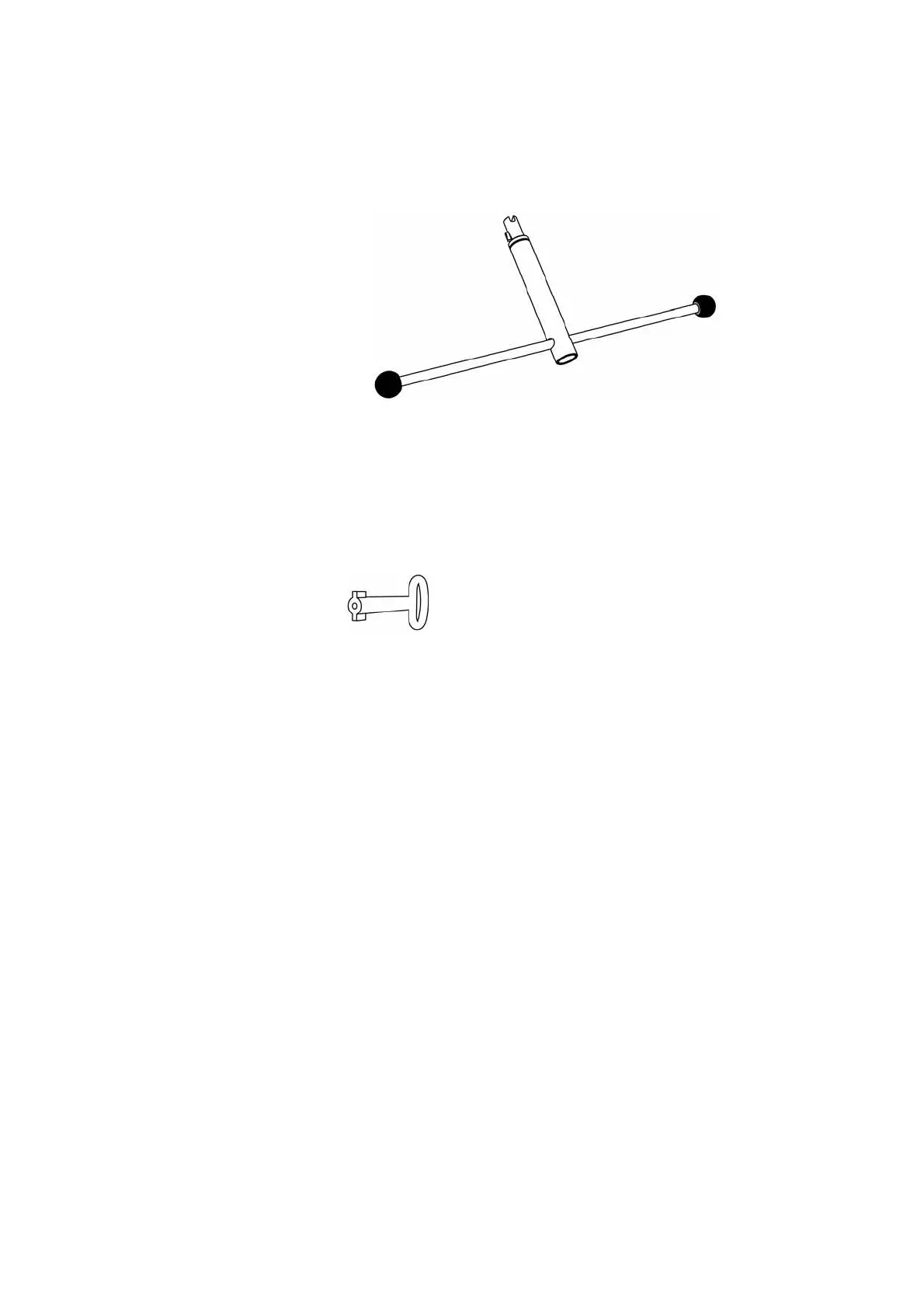

Fig. 31: Standard: Single-lever operation with black handle and coding as universal lever.
Alternative 1: One operating lever with red handle for earthing and de-earthing,
and one operating lever with black handle for load breaking.
Alternative 2: Single-lever operation via anti-reflex lever with and without coding.
Fig. 32: Double-bit key with a diameter of
3 mm for low-voltage door

Siemens 8DJH Series Specifications

General

Insulation medium	SF6 gas
Enclosure	Metal-enclosed
Type	Gas-insulated switchgear
Operating mechanism	Spring mechanism
Dimensions	Varies depending on configuration
Weight	Varies depending on configuration
