500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 117
Operation

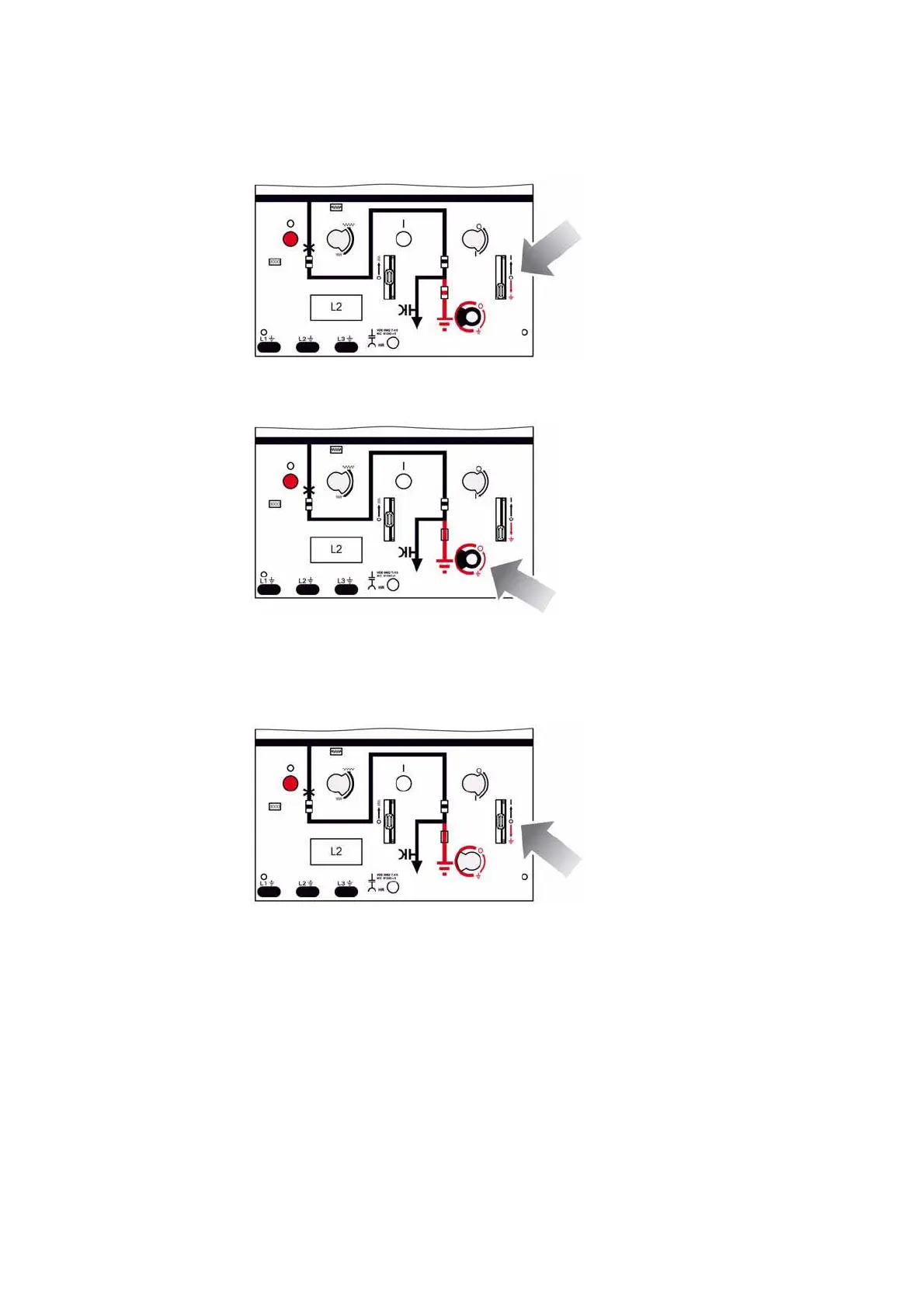

17.6 Three-position disconnector in the circuit-breaker panel type 2: EARTHED position
Ö Push the control gate of the disconnector downwards.
The actuating opening is free.
Ö Insert the operating lever and turn 55° clockwise.
Ö Remove the operating lever.
Ö The control gate moves to the center position automatically.
The actuating opening is closed.
r The circuit-breaker panel is earthed.
