S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
9-8 A5E00105492-03
3*IRUFRPPLVVLRQLQJRUPDLQWHQDQFH
1. Use a stub cable to connect the commissioning and maintenance PG to the
other subnet nodes. The bus connector of these nodes must be equipped with a
PG socket.

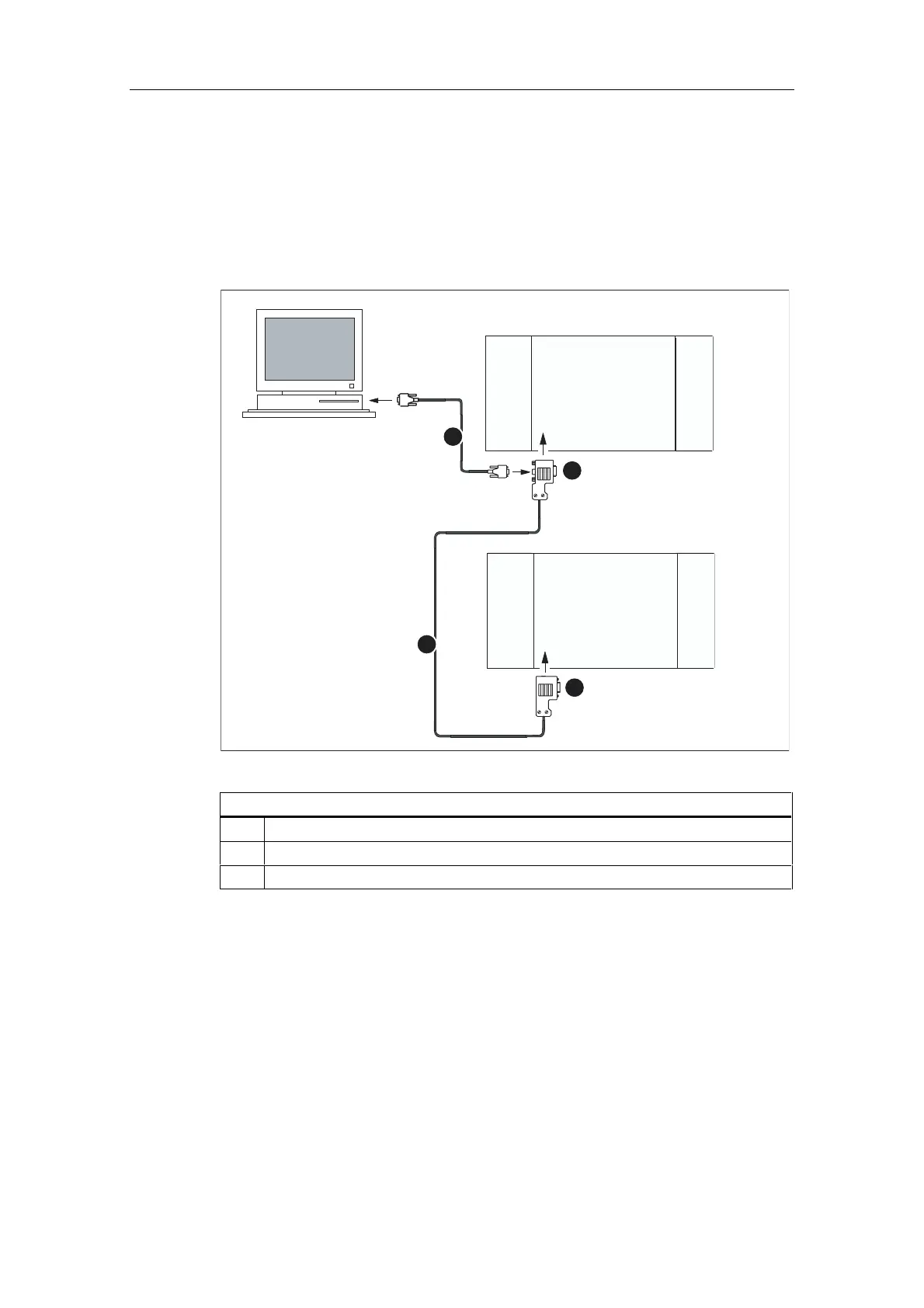

The figure below shows the interconnection of two networked S7-300 and a PG.
SF
BUSF
DC5V
FRCE
RUN
ST OP
SIEM EN S
PS
SM
SF
BUSF
DC5V
FRCE
RUN
STOP
SIEMENS
CPU
PS
SM
PG
1
2
2
3
CPU
Figure 9-3 Connecting a PG to a subnet
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
 Stub cable used to create connection between PG and CPU
 Inserted terminating resistor of bus connector
 PROFIBUS bus cable used to network the two CPUs

