Installing and Starting the Ethernet CP with STEP 7
54
SIMATIC NET NCM S7 for Industrial Ethernet
C79000-G8976-C129–06
2.2.4 Setting Further CP Properties
Overview
In addition to the network attachment, you can also make further settings for the
specific module or you can call functions.
1. Select the Ethernet CP in the hardware configuration.
2. Select Edit
"
Object Properties. In the dialog, you will see further tabs in
addition to the “General” tab described in Section 2.2.2 depending on the type
and CP, some of which are shown in the example of a CP 443-1:

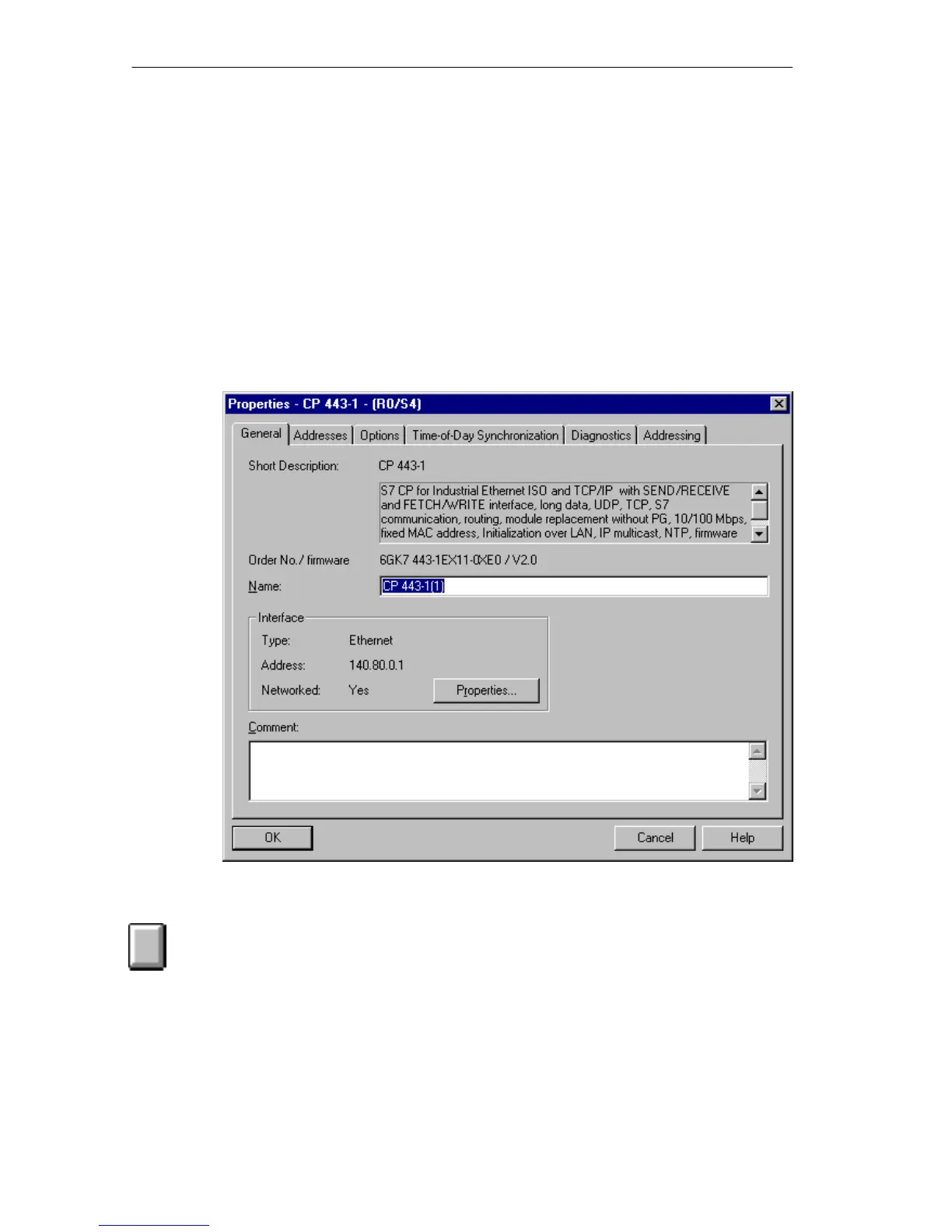

Figure 2-5 Example of the “General” Tab of the “Properties CP” Dialog Box for the CP 443-1 TCP
Please read the description of the Properties dialog of the CP in the integrated
help. The functions are explained in detail there.
Addresses Tab
The Addresses tab displays the address at which the module can be addressed by
the user program. You require this address when calling the FCs for transport
connections –> see Chapter 5.
