Infrastructure & Cities Sector 7 Parameterization PArA 05.11.2013
7 Parameterization PArA
Here, set the parameters associated directly with the controller’s adaptation to the
controlled system after the plant has been put into operation.

Note!
The display of the individual parameters depends on the type of controller.
Basic display
7867d12e/0712
ESC
>2 s
or timeout
Enter
O
Pr
Enter
User level OPr
Navigation principle
Enter
ESC
One level
back
One level
down
Next/previous parameter
PArA
Enter
Parameter level PArA
HYS3
HYS6
At1 Ht1 At2 Ht2
Heating controller:
Cooling controller:
, , , ,
, ,
, ,
HYS1 HYS2
HYS4 HYS5
Pb1 dt rt db tt
, , , ,
Enter
Configuration level ConF
InP
Cntr
rAFC
AF
OutP
binF
diSP
IntF
Analog inputs
Controller
Thermal shock protection
Alarm function
Controlling outputs
Binary inputs
Display
Interface
C
on
F
b

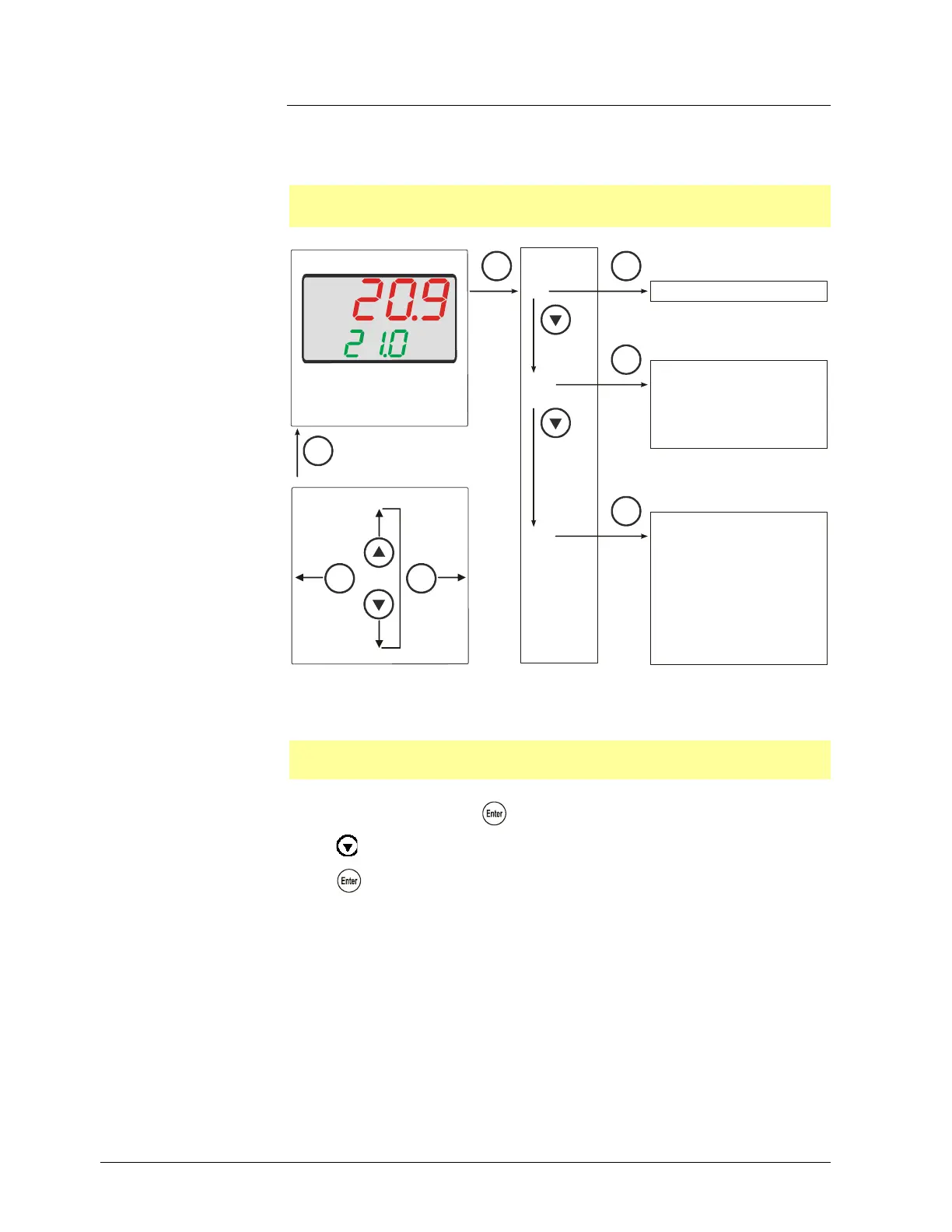

Figure 26: Parameterization
Access to this level can be locked.

Reference!
See chapter 8.9 Display diSP.
*
From the basic display, press so that OPr appears
*
Press
so that PArA appears
*
Press so that the first parameter of the parameter level is displayed
