54/93
Building Technologies Division User Manual RWF55... CC1U7867en
Infrastructure & Cities Sector 8 Configuration ConF 05.11.2013

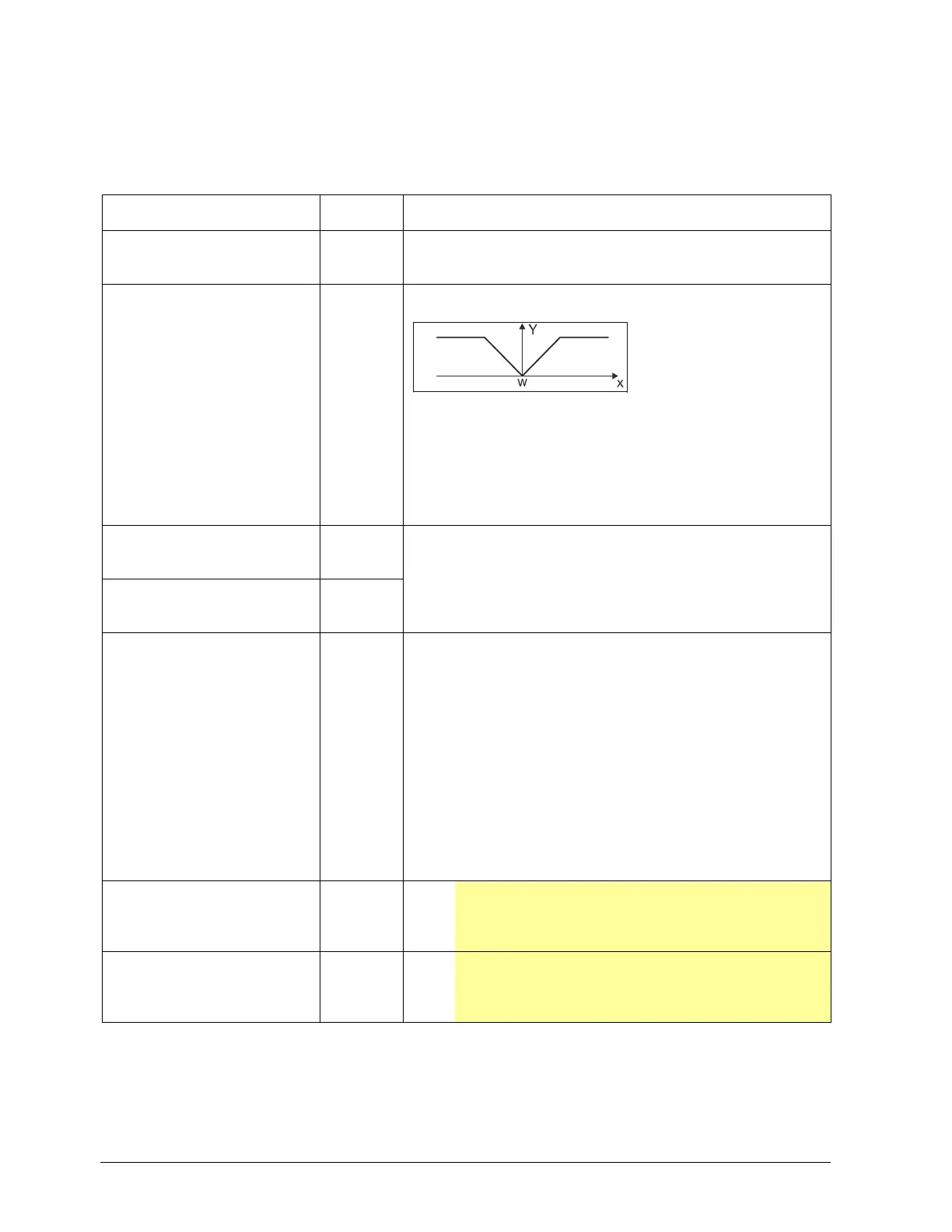

8.4 Controller Cntr
Here, the type of controller, operating action, setpoint limits and presettings for self-
optimization are selected.
ConF Cntr
Parameter Value/
selection
Description
Controller type
CtYP
Controller type
1 3-position controller
2 Modulating controller
Operating action
CACt
Control direction
0 Cooling controller
1 Heating controller
(1)
(0)
7866d14/0512
(0) = cooling controller:
The controller’s angular positioning (Y) is >0 when the actual value
(x) lies above the setpoint (w)
(1) = heating controller:
The controller’s angular positioning (Y) is >0 when the actual value
(x) lies below the setpoint (w)
Setpoint limitation start
SPL
Setpoint limitation low
-1999...
0...
+9999
Setpoint limitation prevents values from being entered outside the
defined range.
The setpoint limits are not active in the case of predefining
setpoints via the interface. In the case of an external setpoint with
correction, the correction value is limited to SPL / SPH.
Setpoint limitation end
SPH
Setpoint limitation high
-1999...
+100...
+9999
Self-optimization 0 Free
1 Locked
Self-optimization can only be disabled or enabled via the ACS411
setup program
If disabled via ACS411 PC software, self-optimization cannot be
started via the controller’s buttons
Setting in the ACS411 setup program
Controller Self-optimization
Self-optimization is also disabled when the parameter level is
locked
Lower working range limit
oLLo
Lower operation range limit
-1999...
+9999
Note!
If the setpoint with the respective hysteresis exceeds the
upper working range limit, the switch-on threshold is
substituted by the working range limit.
Upper working range limit
oLHi
Upper working range limit
-1999...
+9999
Note!
If the setpoint with the respective hysteresis drops below
the lower working range limit, the switch-off threshold is
substituted by the working range limit.
