7.1 Basics
F-TM ServoDrive
56 Equipment Manual, 02/2020, A5E47579503-AA
"Parameters" area
Contents in the "Parameters" area of the F-TM ServoDrive TM engineering.
● Drive:
Drive data record, general settings, motor, gearbox, thermal model, brake module
● Setpoint channel:
Reference values, application limits, speed-ramp sensor
● Open-loop/closed-loop control:
Control type, controller settings, speed controller, current controller
● Messages/monitoring
Motor (thermal motor model), intermediate circuit voltage, braking resistor (load), power
end stage (load)
Note
The F
-TM ServoDrive is not able to provide a holding torque for locking the drive.
In the application, especially note that abrupt movement of the axis can occur whe
n lifting
and lowering loads.
7.1.2 Drive parameters
Parameter tooltips
In STEP 7 engineering of the F-TM ServoDrive, all displayed drive parameters are linked
with tooltips. You will find detailed information on the parameter in the tooltips, e.g.
parameter name, properties, factory setting, value range, descriptions, notes and
dependencies.

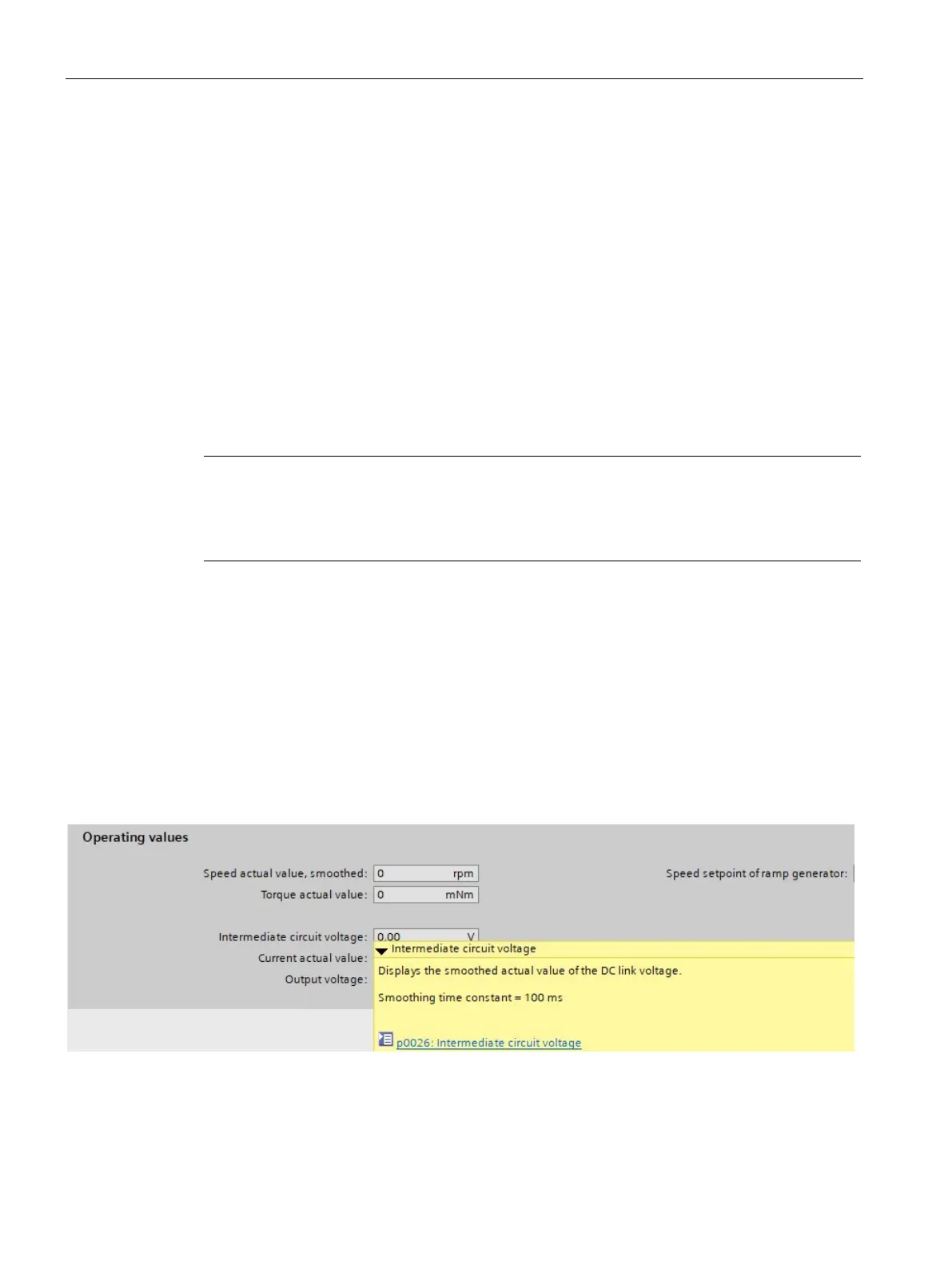

Figure 7-1 DC link voltage tooltip
