F-TM ServoDrive
Equipment Manual, 02/2020, A5E47579503-AA
88
Interrupts, error messages and diagnostics and
system alarms
10
10.1 Status and error displays
LED display

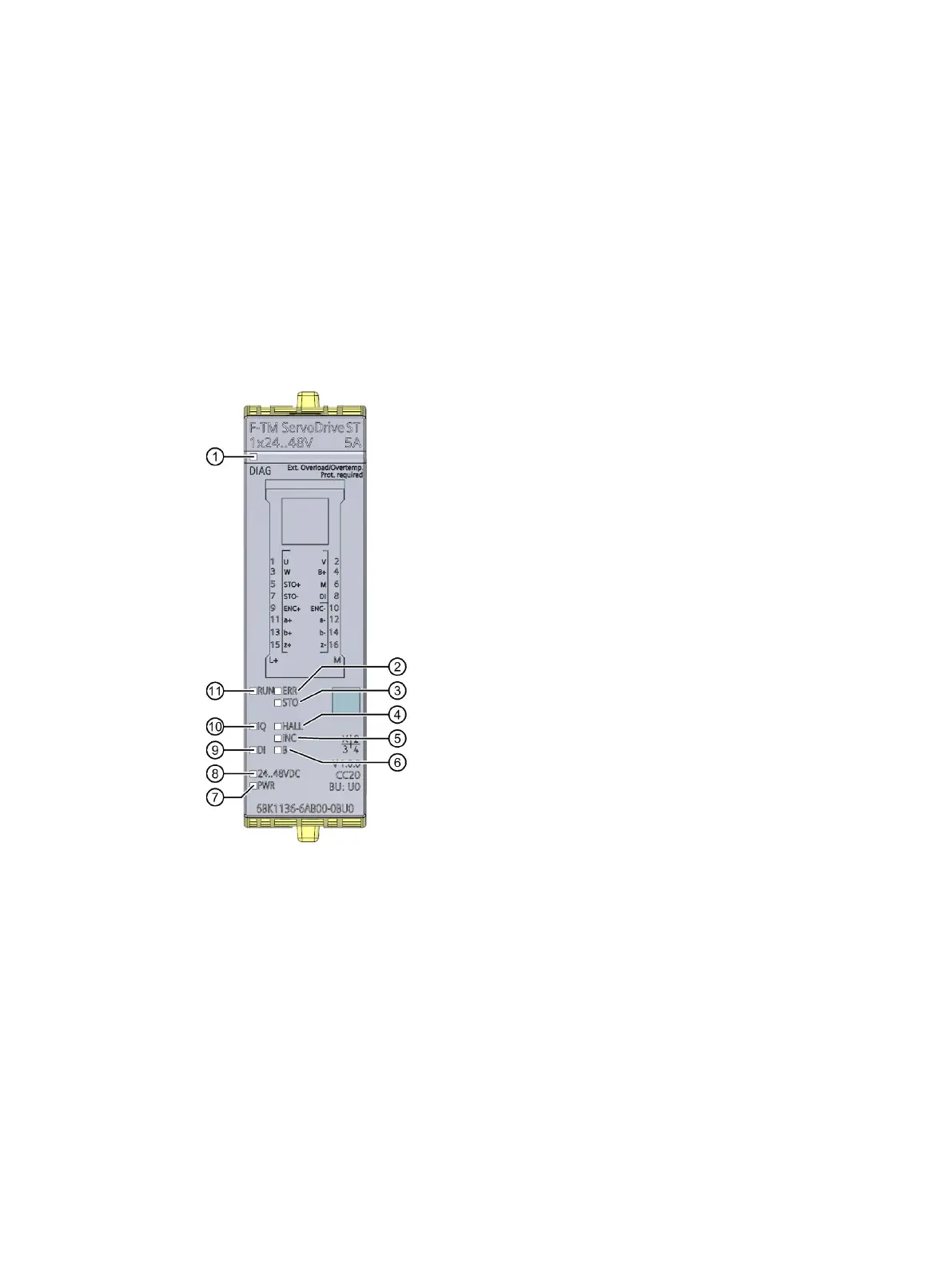

The figure below shows the LEDs on the F-TM ServoDrive.
①
DIAG (red/green)
⑦
PWR (green)
②
ERR (red)
⑧
24..48V (green)
③
STO (yellow)
Display not safety-related
⑨
DI (green)
④
HALL (green)
⑩
IQ (green)
⑤
INC (green)
⑪
RUN (green)
⑥
B (green)
Figure 10-1 LED display on F-TM ServoDrive
