Parameterizing the Mobile Panel
5.8 General settings
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
115
5.8.7 Backing up registry information and temporary data
You can install and uninstall your own software on and from the HMI device. You need to
back up the registry settings to flash memory after installation or removal.
You can also save the data in the memory buffer to flash memory.
Requirement
The Control Panel is open.
Procedure

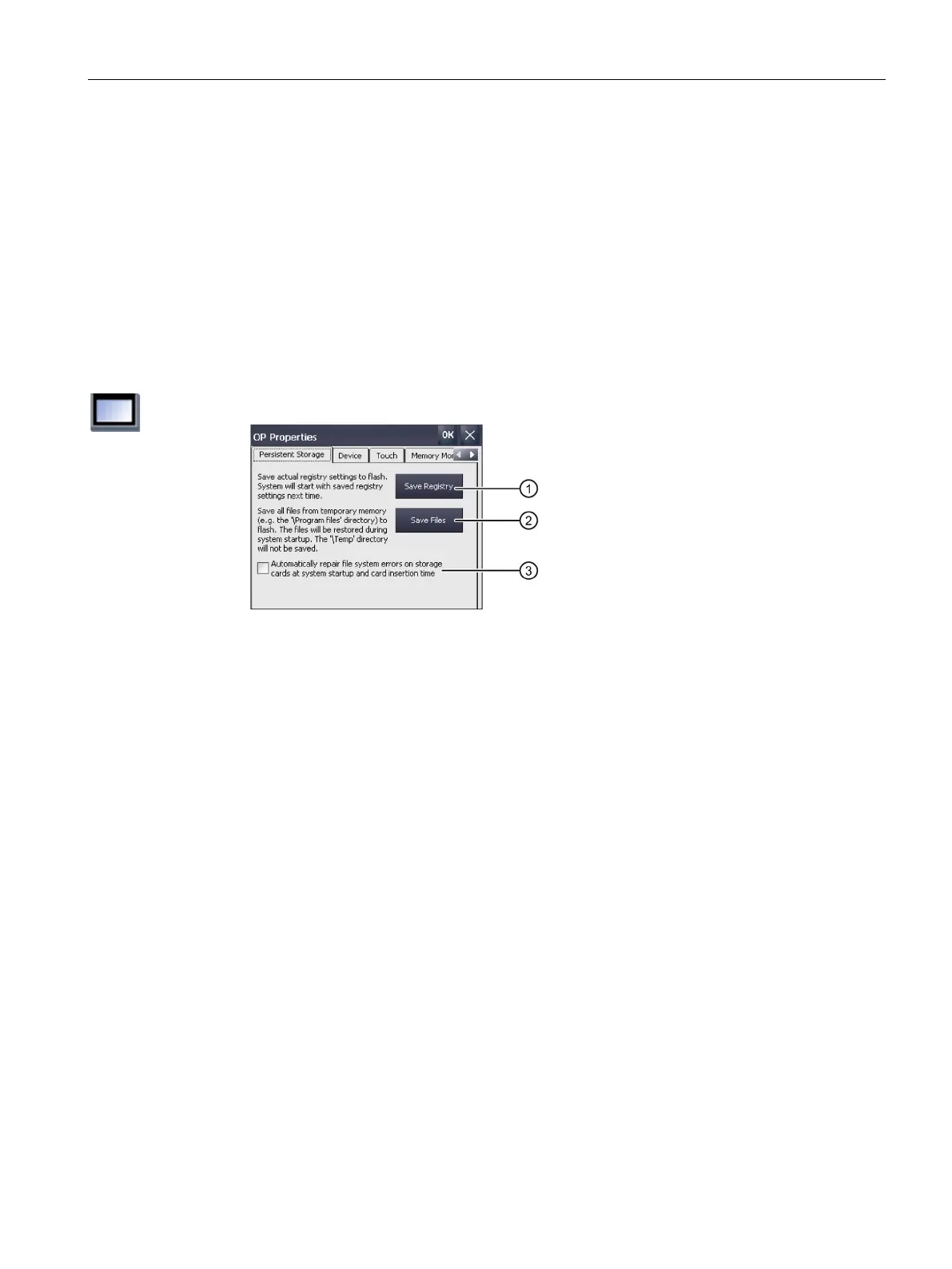

1. Open the "OP Properties" dialog using the "OP" icon.
Button for saving registry information
Button for saving temporary files
Automatically repairs file system errors on plug-in storage media during HMI device startup
and when a storage medium is inserted.
2. To back up the current registry entries, press the "Save Registry" button.
The current registry entries will be backed up in the flash memory. The HMI device loads
the saved registry information the next time it boots.
3. To back up temporary files, press the "Save Files" button.
All files from the temporary memory will be backed up in the flash memory. You can
access the files saved under "Start > Documents". These files are written back when the
HMI device is started. The "\Temp" directory is not saved.
4. If you want file system errors on the memory card to be repaired automatically, select the
"Automatically repair file ..." check box.
If the check box is cleared, a necessary repair of the file system on memory cards is only
performed on request.
5. Confirm your entries with "OK".
The dialog closes.
At the next startup, the HMI device will use the registry entries and temporary files set.
