1.3 KTP Mobile connecting cable
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
17
1.3
KTP Mobile connecting cable
You connect the Mobile Panel to the connection box using the rugged connecting cable. The
tensile and flexural strength of the connecting cable is geared toward the actual usage
conditions.
Functions of the connecting cable:
● Power supply of the Mobile Panel
● Ethernet connection between Mobile Panel and connection box
● Transmission of the signals for emergency stop / stop button and enabling button
● Transmission of the box ID

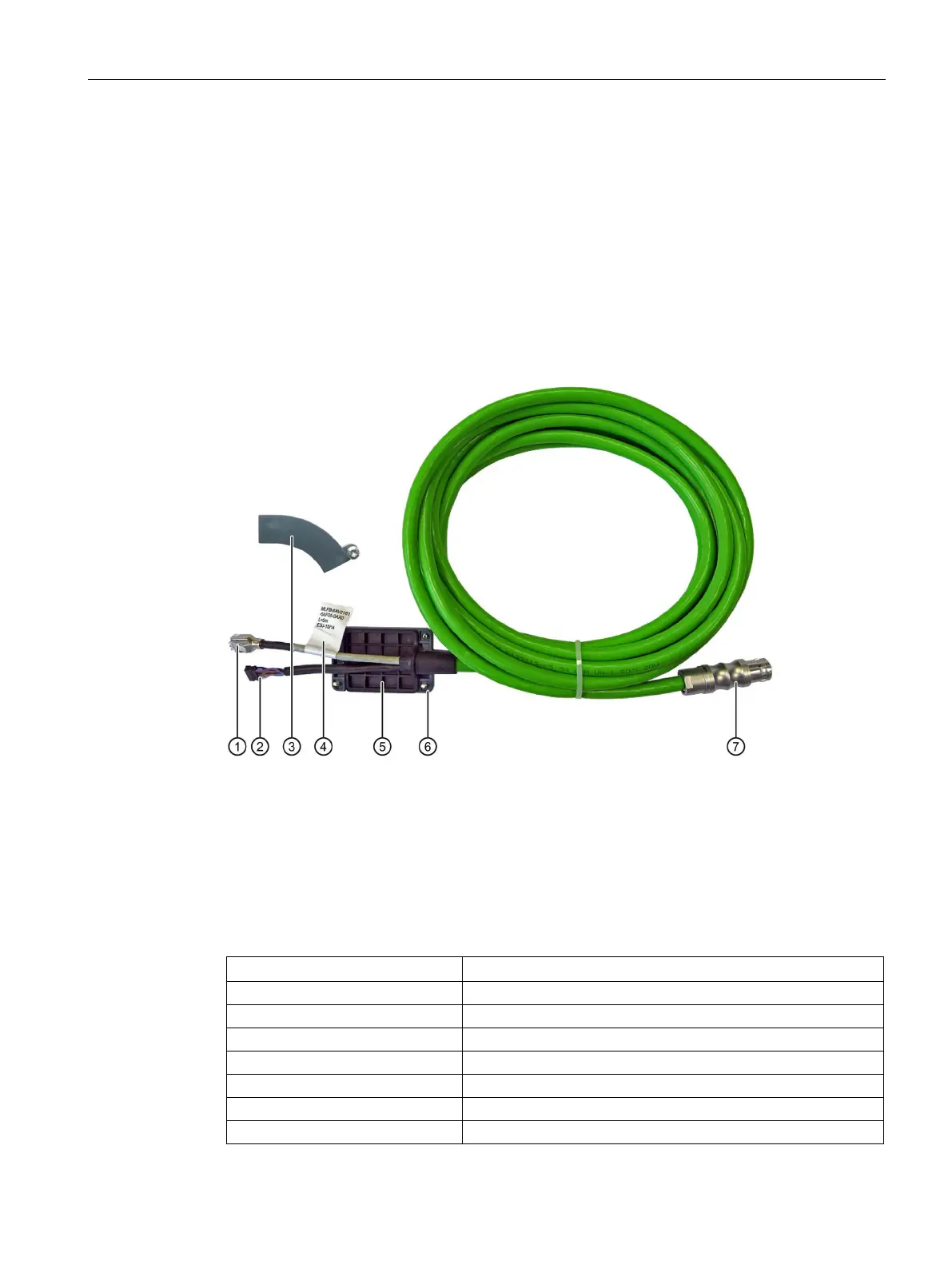

①
RJ45 connector
②
Plug connector, 12-pin
③
Retainer, not required for KTP400F Mobile.
④
Label with order number, length specification and product version
⑤
Seal
⑥
Terminal compartment cover
⑦
Connector for the connection box
The KTP Mobile connecting cable is available in the following lengths:
Product name and length
Article number
KTP Mobile 2 m connecting cable
6AV2181-5AF02-0AX0
KTP Mobile 5 m connecting cable
6AV2181-5AF05-0AX0
KTP Mobile 8 m connecting cable
6AV2181-5AF08-0AX0
KTP Mobile 10 m connecting cable
6AV2181-5AF10-0AX0
KTP Mobile 15 m connecting cable
6AV2181-5AF15-0AX0
KTP Mobile 20 m connecting cable
6AV2181-5AF20-0AX0
KTP Mobile 25m connecting cable
6AV2181-5AF25-0AX0
