Installing system components
3.4 Attaching the KTP Mobile wall-mounting bracket
Mobile Panels 2nd Generation
50 Operating Instructions, 09/2018, A5E33876626-AC
3.4.3
Fasteneing the KTP Mobile wall-mounting bracket
Requirement
The requirements refer to the installation of the wall-mounting bracket to a control cabinet.
● A level bolting surface
● 3 M5 bolts and a suitable screwdriver
● 3 M5 nuts and a suitable wrench
Procedure
1.
Place the wall
-mounting bracket level
on the mounting surface.
2.

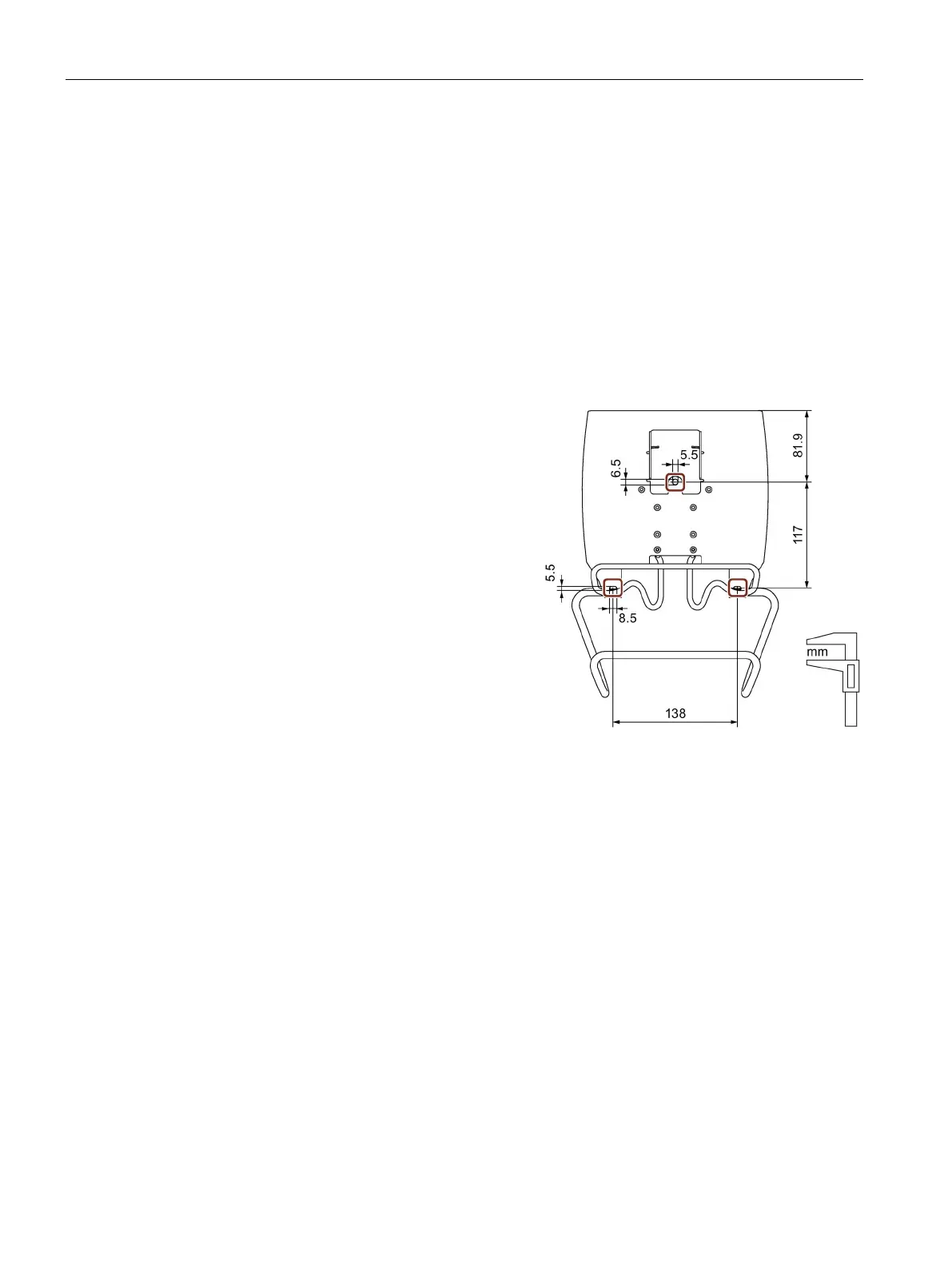

Mark the drill holes at the indicated
locations in the figure on the right.
3.
Drill 3 holes for M5 type bolts based on
your mounting requirements.
4.
Fasten the wall
-mounting bracket with
the bolts and nuts.
See also
KTP Mobile wall-mounting bracket dimension drawing (Page 232)
