8.3 Dimension drawings
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
123
8.3.4
Dimension drawing of 15" device with resistive single-touch screen

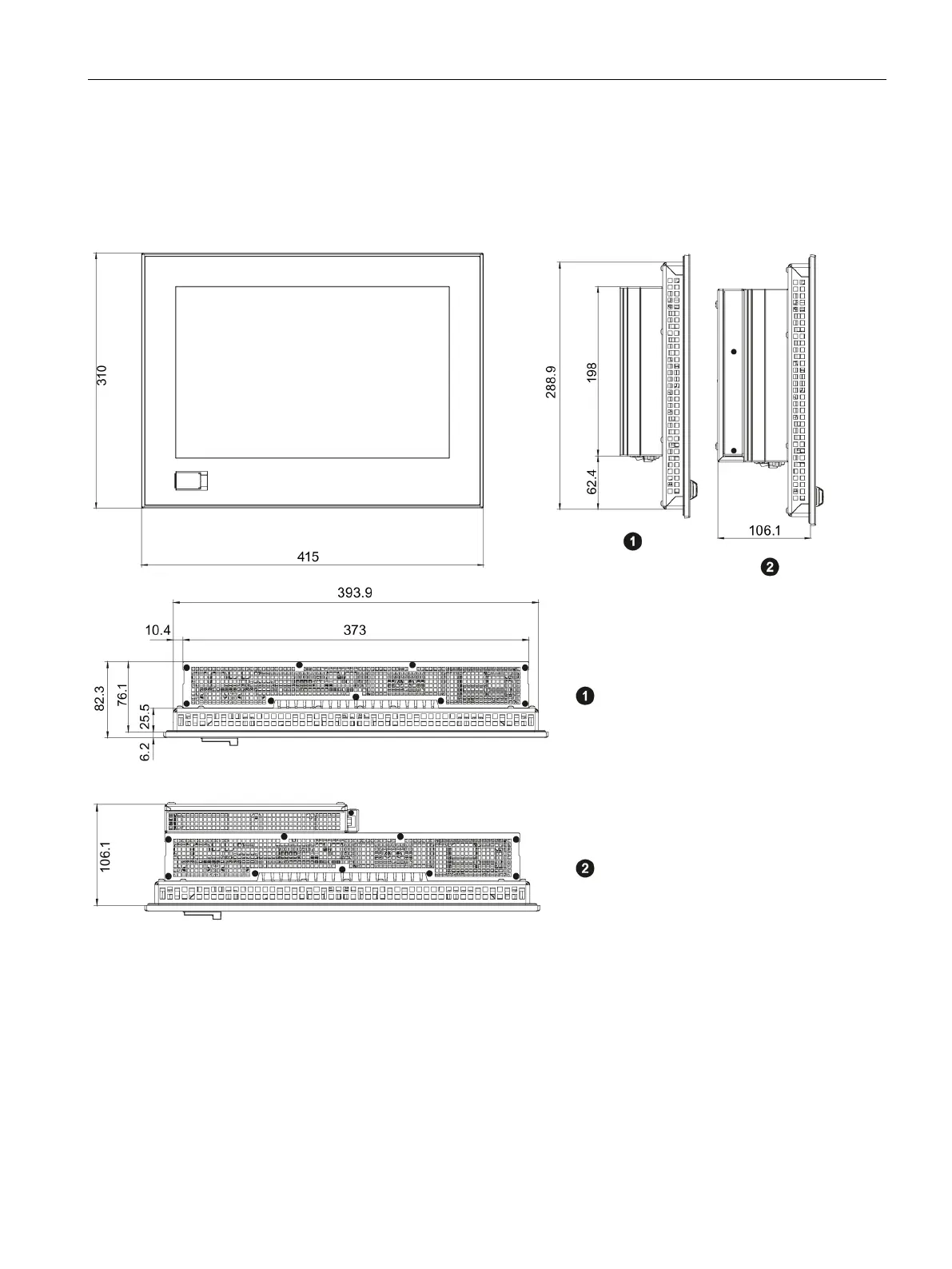

The figure shows the front view and directly associated side view and top view of a device
without PCI expansion. The side view and top view of a device with PCI expansion are
shown beyond at a distance.
1
Device without PCI expansion
2
Device with PCI expansion
