Overview
1.2 Design of the built-in units
SIMATIC IPC477E
14 Operating Instructions, 12/2016, A5E37455003-AB
1.2.3
Devices with expansions
1.2.3.1
Devices with PCIe card

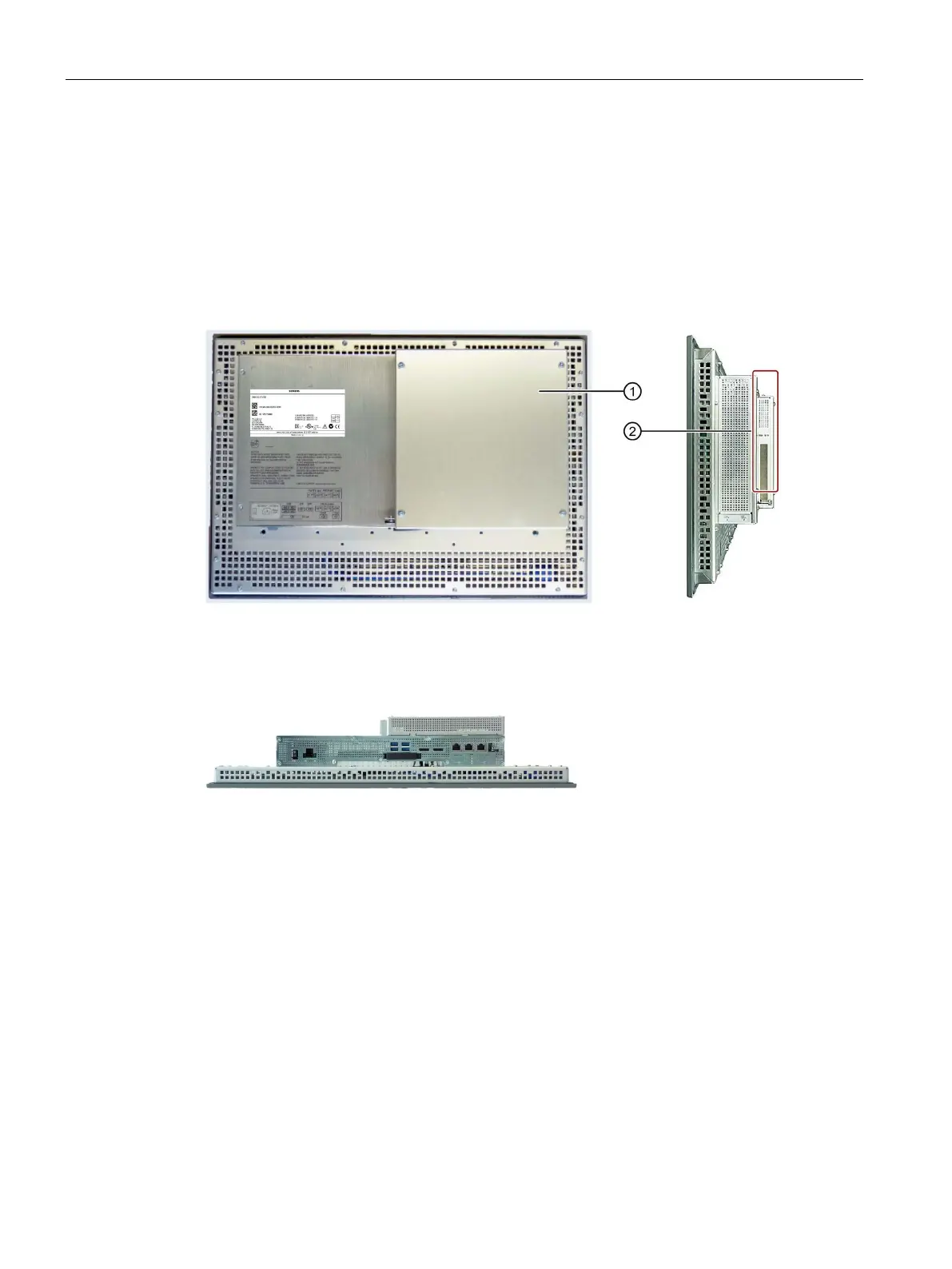

The following figures show the 15" device with resistive single-touch screen and a PCIe
expansion as an example.
Rear view and side view
①
Rear panel
②
PCIe card
Bottom view
