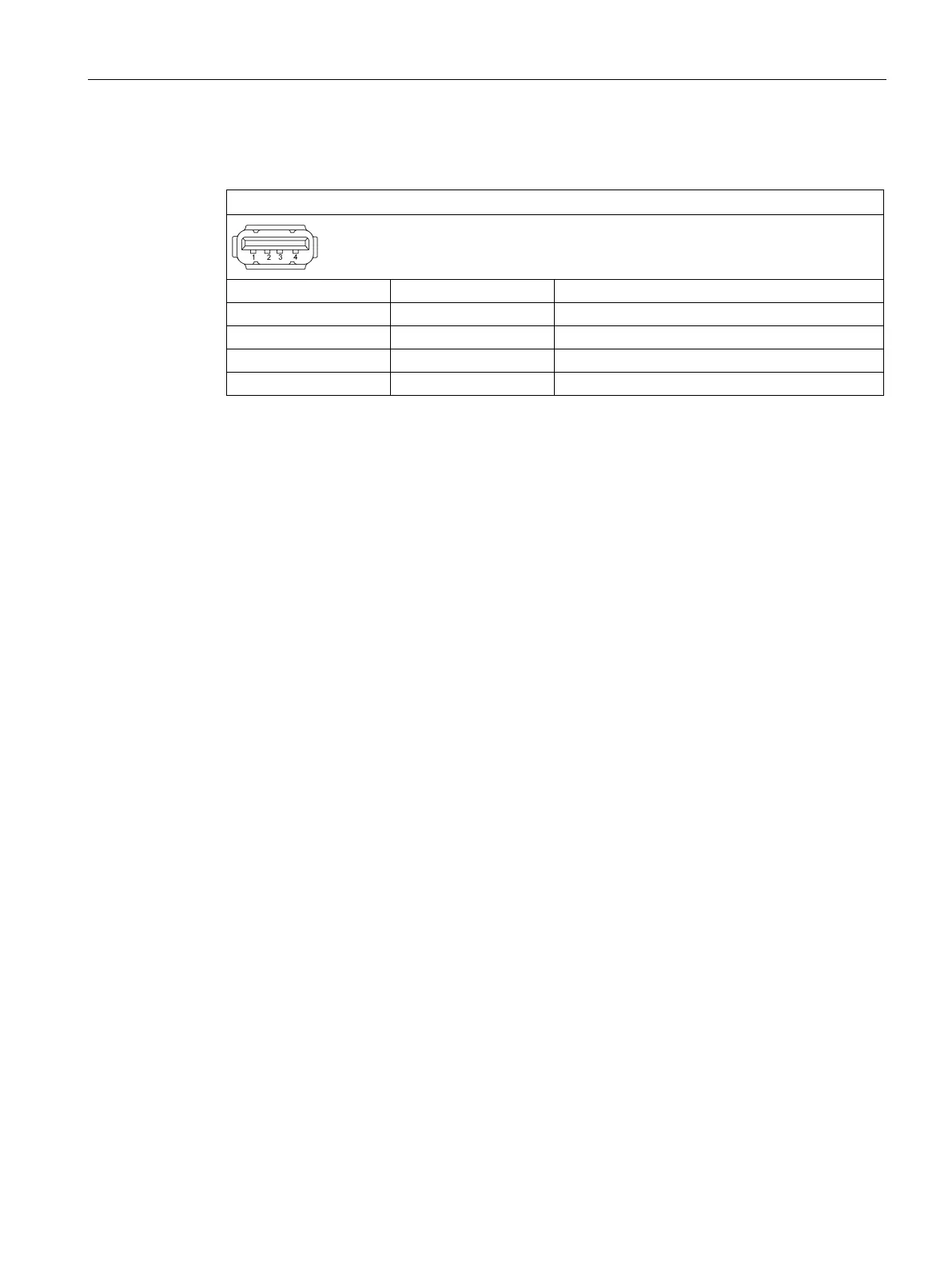

Technical information
8.5 Hardware descriptions
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
141
8.5.1.6
USB 2.0
USB 2.0 port
Pin no.
Short description
Meaning
1 USB_P5V_fused (O) + 5 V (fused) for external USB interface
2
USB_D0M (I/O)
Data-, USB channel 0
3
USB_D0P (I/O)
Data+, USB channel 0
4
USB_GND
Ground for external USB interface
