Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
35
3.2.2
Mounting clips or mounting brackets, position for IP65-compliant installation

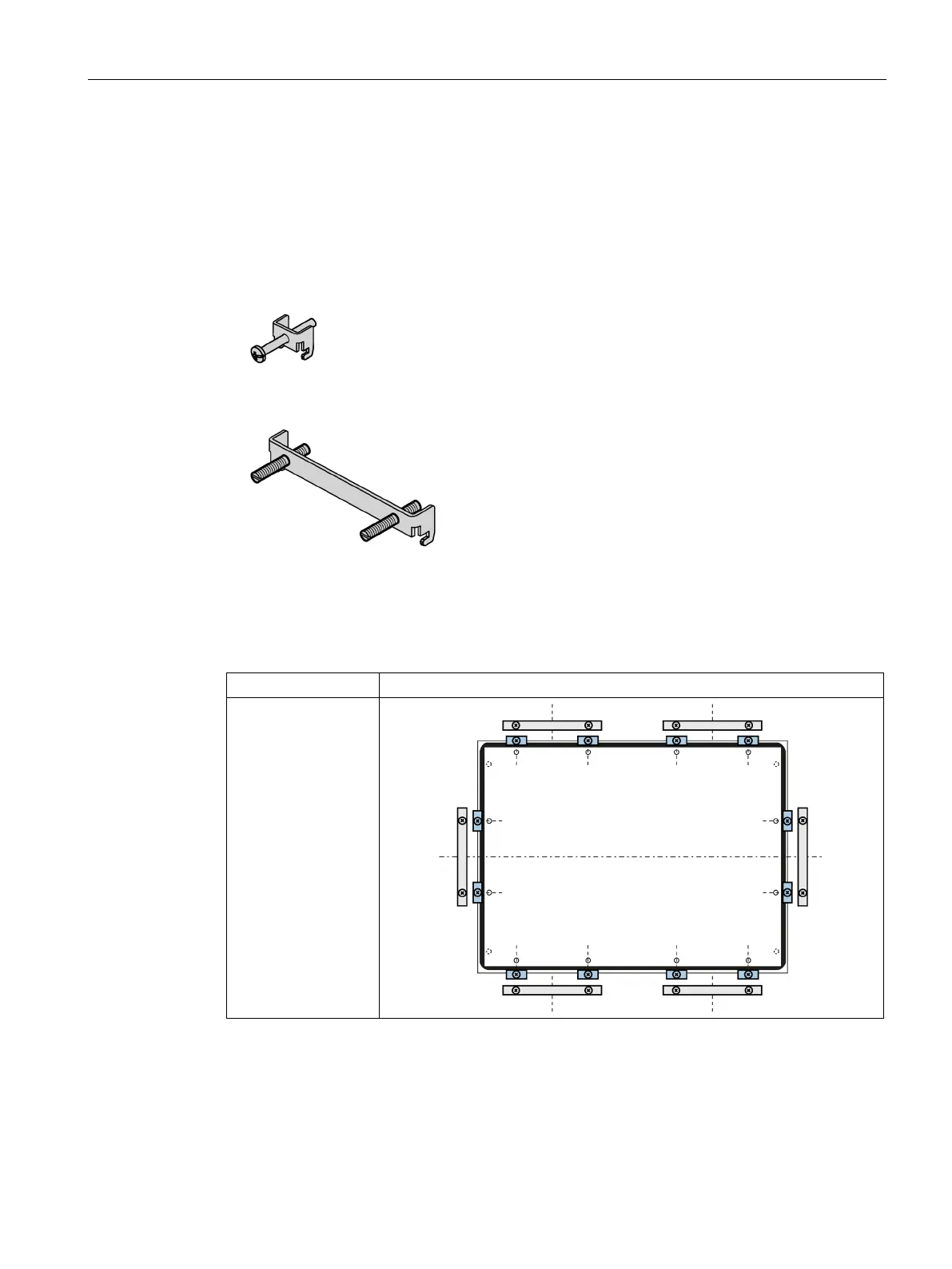

Types of mounting clips and mounting brackets
You can mount the device as follows:
● Device with 15", 19" or 22" display:
With 12 mounting clips, steel (included in the product package)
● Device with 15", 19" or 22" display:
With 6 mounting brackets (available as accessories)
Positions of the mounting clips or mounting brackets for IP65
To achieve IP65 degree of protection for the device, the mounting clips or mounting brackets
must be installed at the positions shown below.
Device
Position
Touch screen device
with:
• 15" display
• 19" display
• 22" display
