1.2 Design of the built-in units
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
13
1.2.2
Devices with capacitive multi-touch screen

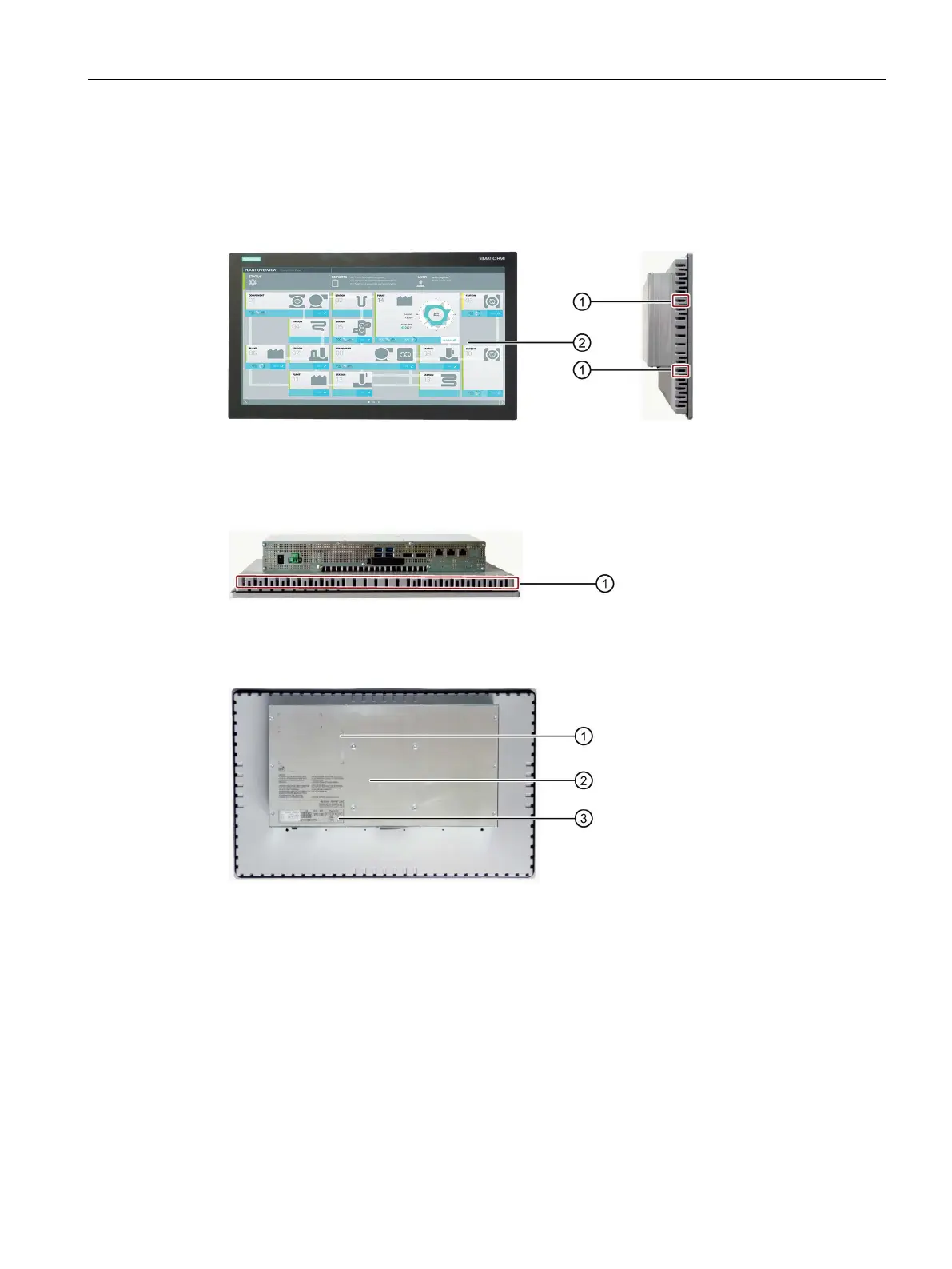

The following figures show the 19" device without PCIe card as an example.
Front and side views
①
Recesses, each of which for a mounting clip
②
Display with touch screen
Bottom view
①
Recesses for one mounting clip each
Rear view
①
Rating plate
②
Rear panel
③
Labeling for the interfaces
