Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
53
3.3.5
Securing cables on the built-in unit
3.3.5.1
Attaching the strain relief
Different strain-relief assemblies are available to secure the cables.
The strain relief assemblies and the fasteners required for it are included in the product
package.
The following cables can be secured:
● 24 V DC power supply cable
● RS232 cable
● USB cable
● DisplayPort line
● Ethernet cable
Requirement
● The device is installed
● Strain relief
● Screws
● Cable ties
● T10 screwdriver
Procedure
Attaching the strain relief is described as an example here. The procedure is the same for all
device variants.

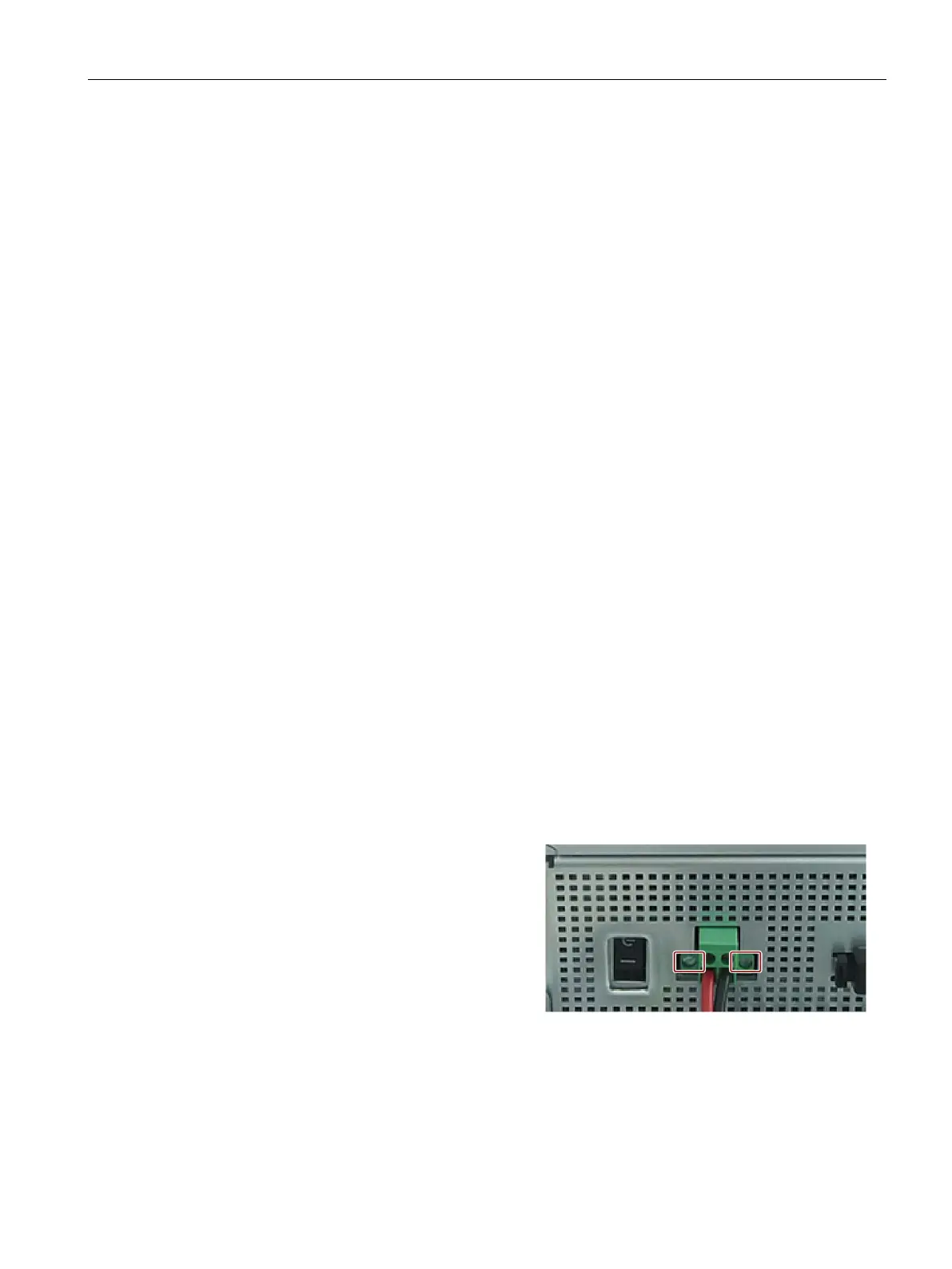

Installation the 24 V DC power supply connection
1.
The 24
V DC power supply connec-
tion is screwed on to the device at
the marked positions. Secure the
connection cable to the nearest a
t-
t
achment eyelet with a cable tie.
