Siemens SIMOTICS S-1FL6 Compact Operating Instructions

Getting Started
A5E37208904-003, 04/2017
33
3.2
Mounting the motor
NOTICE
Damage to the encoder
Do not exert any shock at the shaft end; otherwise, the encoder may be damaged.
For mounting conditions, see Technical data - servo motors (Page 25).

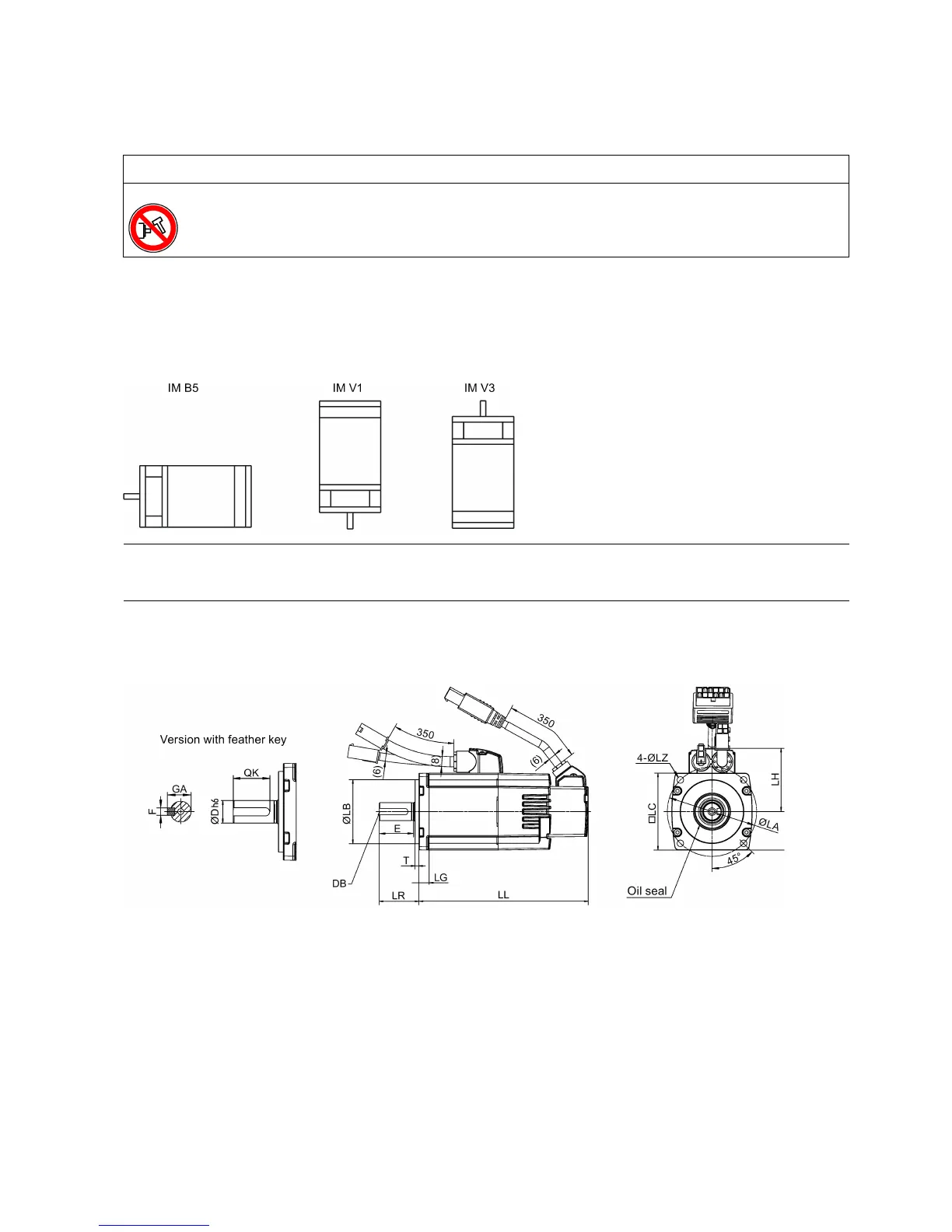

Mounting orientation
SIMOTICS S-1FL6 supports flange mounting only and three types of constructions, so it can be installed in three
orientations as shown in the following figure.
Note
When configuring the IM V3 type of construction, pay particular attention to the permissible axial force (weight force of the
drive elements) and the necessary degree of protection.
Motor dimensions (unit: mm)
Low inertia servo motor, shaft height: 20 mm, 30 mm, and 40 mm
