Siemens SIMOTICS S-1FL6 Compact Operating Instructions

Getting Started
46 A5E37208904-003, 04/2017

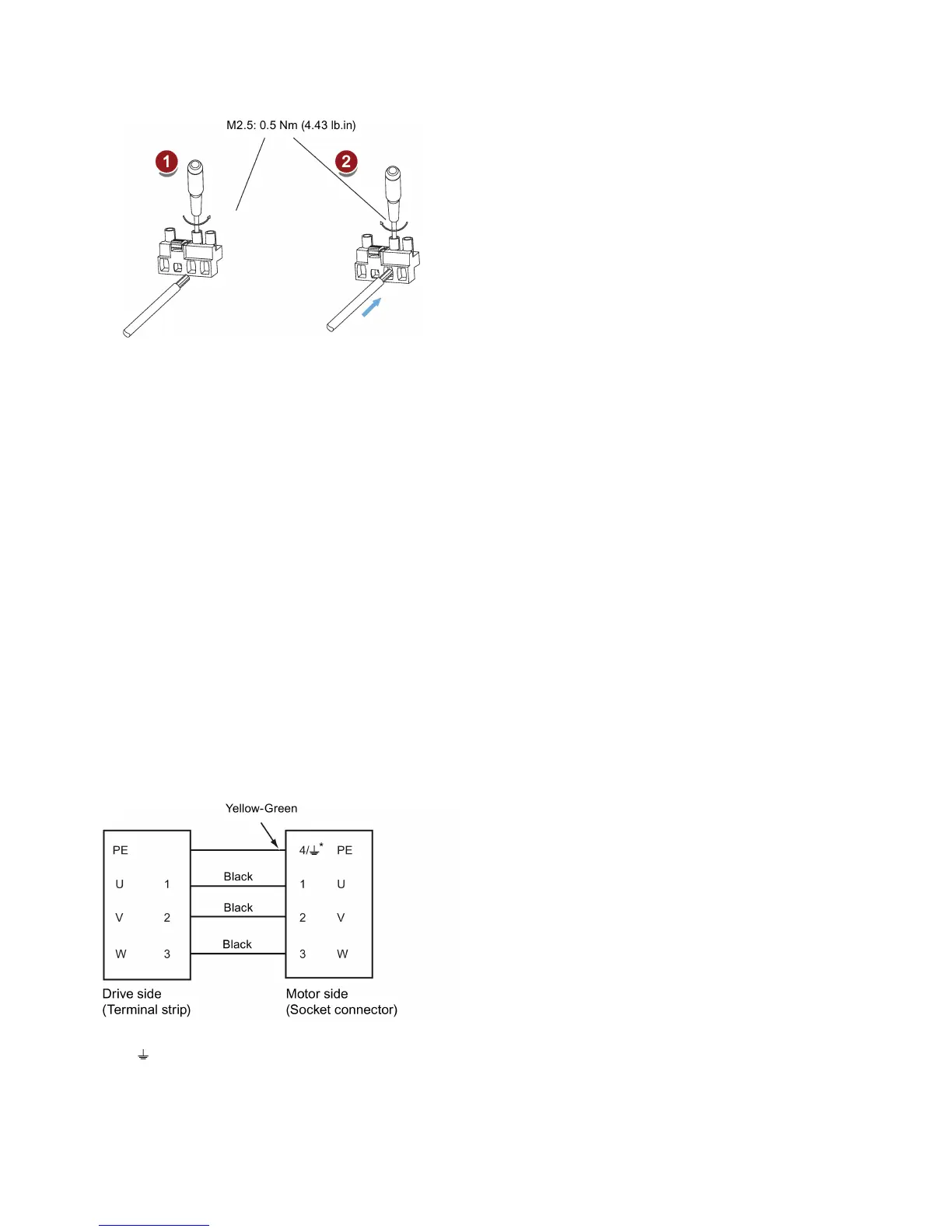

● For FSC and FSD
400 V variant
● For FSAA and FSA
You can attach the line supply cable with the same method for 200 V variant drives of frame sizes FSC and FSD.
● For FSB and FSC
The FSB and FSC servo drives are equipped with barrier terminals for line supply connection. You can fix the line supply
cable on the servo drives by using the M4 screws with a tightening torque of 2.25 Nm (19.91 lb.in).
4.2.2
Motor power - U, V, W
Motor output - drive side
SINAMICS V90 PN 200 V variant
Recommended minimum cable cross-section:
FSB: 0.75 mm
2
FSC and FSD (1 kW): 0.75 mm
2
FSD (1.5 kW to 2 kW): 2.5 mm
2
SINAMICS V90 PN 400 V variant
Recommended minimum cable cross-section:
FSAA and FSA: 1.5 mm
2
FSB and FSC: 2.5 mm
2
Wiring
*
4: high inertia motors with straight connectors and all low inertia motors
: high inertia motors with angular connectors
