7.4.2 Type plate
Type plate

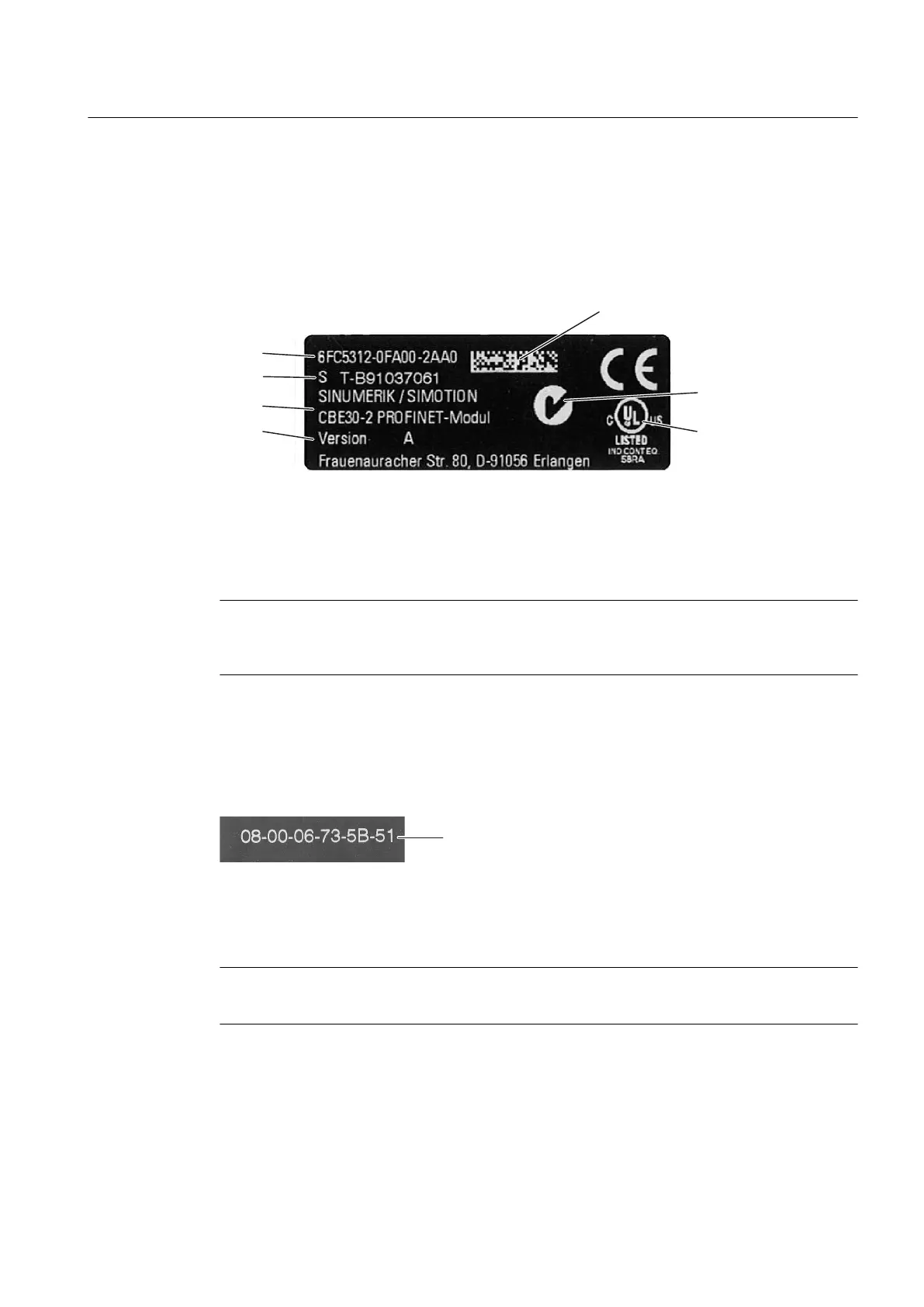

The figure below contains all the information included on the type plate.
+DUGZDUHUHYLVLRQOHYHO
0
RGXOHGHVLJQDWLRQ
6HULDOQXPEHU
2UGHU1R
'DWDPDWUL[FRGH
&7LFN
F8/XV
Figure 7-8 CBE30-2 type plate
You
might need to access the information provided on the type plate after mounting. Because
the type plate is located on the under side of the CBE30‑2, we recommend that you note the
serial number before installing it.
Note
The contents of the individual type plate fields of the CBE30‑2 may differ from those described
in this manual (e.g. updated product status, approvals and markings not yet issued, etc.).
MAC address
A second plate for the MAC address of the PROFINET interfaces is attached to the top side
of the board:
Figure 7-9 CBE30-2 MAC address
This plate is only visible when the CBE30-2 has been removed. You need the MAC address
to assign an IP address.
Note
The MAC address is affixed to the top side of the CBE30-2, behind the RJ45 sockets.
Supplementary system components
7.4 CBE30-2 Ethernet communication board
SIMOTION D4x5-2
Manual, 04/2014 111
