3.2.3 RESET button
Arrangement
The RESET button is located behind the blanking cover on the SIMOTION D4x5‑2.
Performing a reset operation
A
reset causes the entire system to be reset and requires the system to be ramped-up again.
It is similar to a "Power On Reset" except that the 24 V power supply does not have to be
switched off.
3.3 7-segment and LED displays
Arrangement of the displays
The front side of the SIMOTION D4x5-2 has ten LED displays arranged arranged vertically in
one row. There is also a 7‑segment display below the blanking cover.
/('GLVSOD\V
[
VHJPHQWGLVSOD\

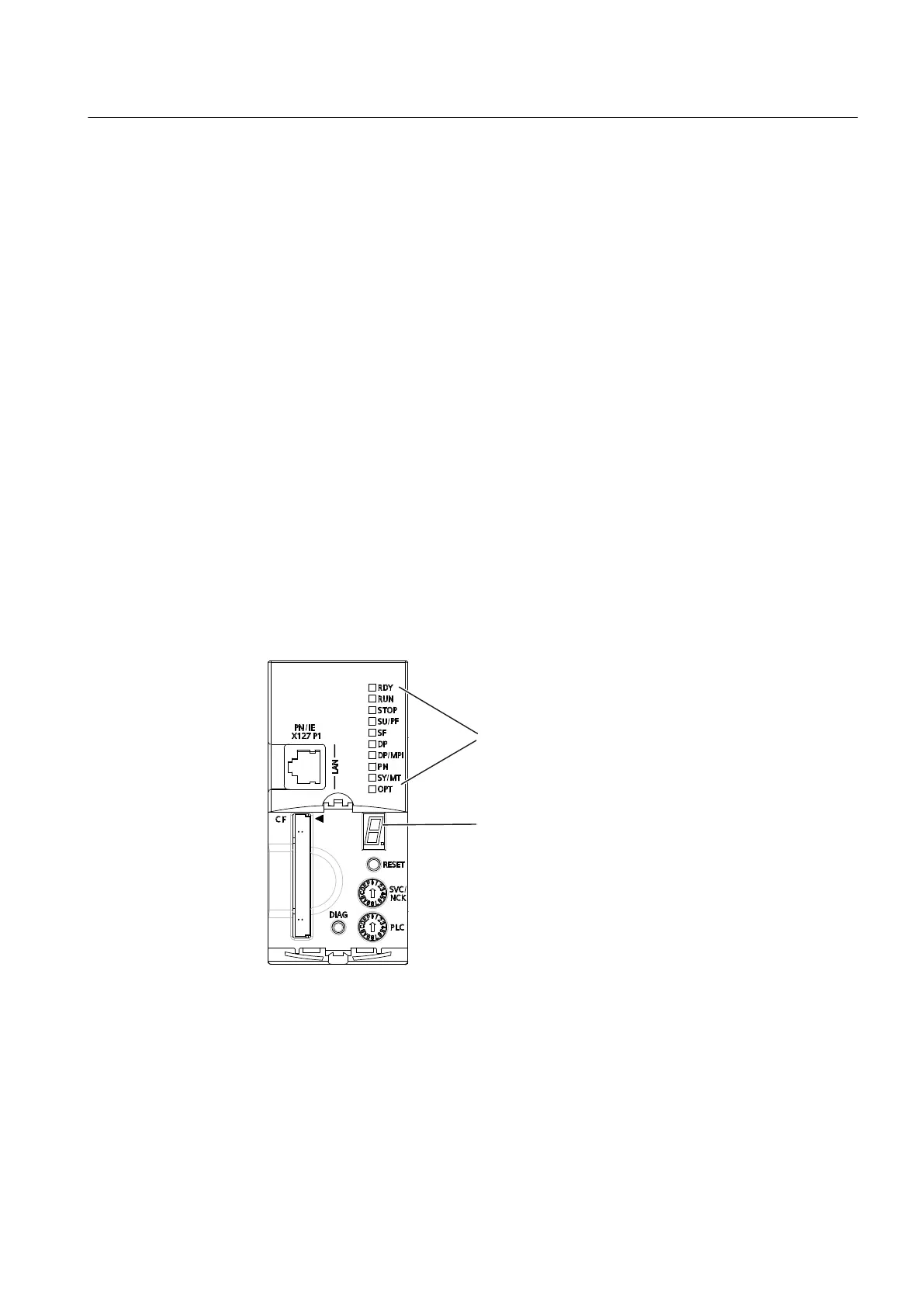

Figure 3-4 7‑segment and LED display on the SIMOTION D4x5‑2
Operator control (hardware)
3.3 7-segment and LED displays
SIMOTION D4x5-2
Manual, 04/2014 49
