Position of power supply interface
0
-XPSH
U
3RZHUVXSSO\FRQQHFWRU

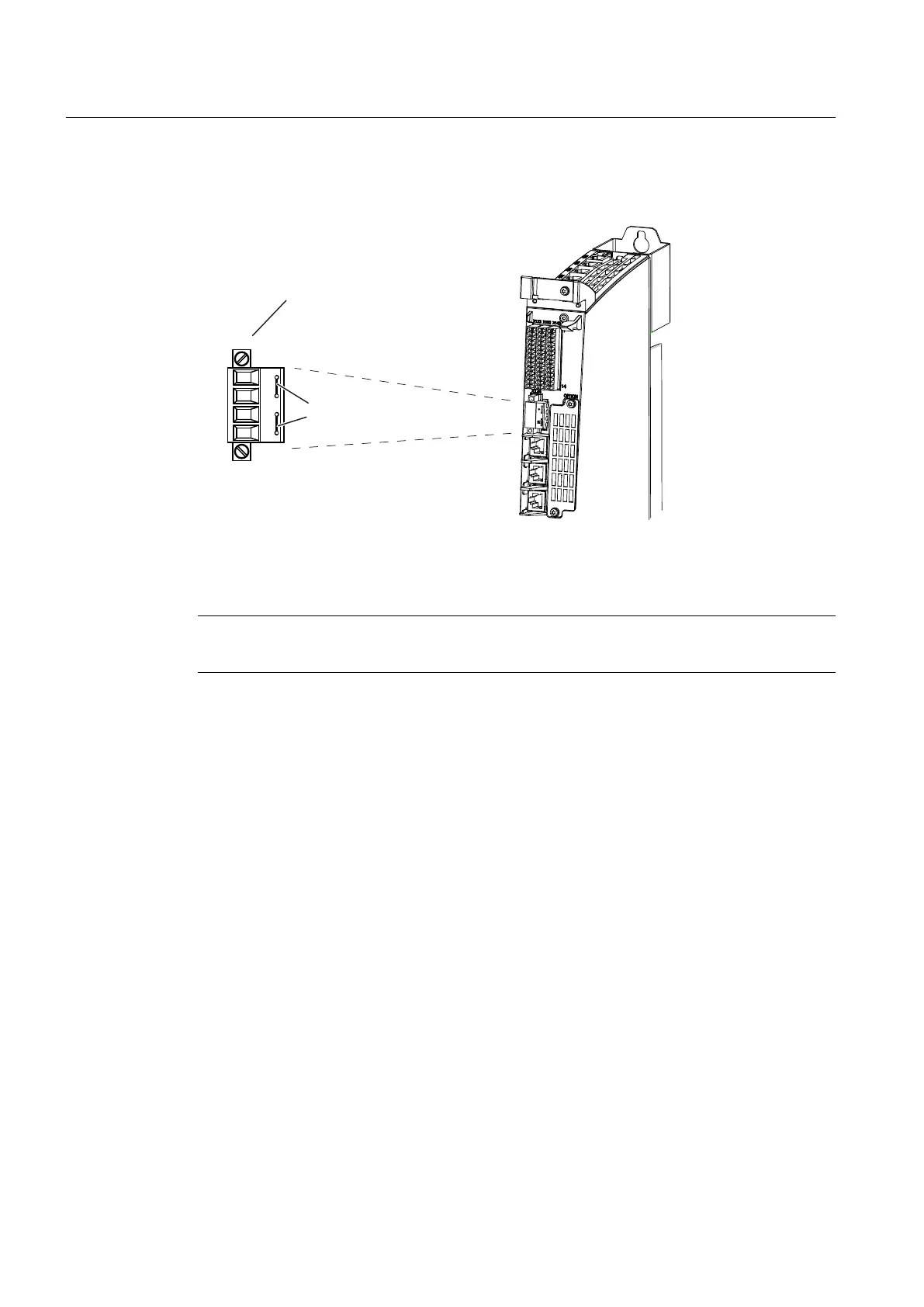

Figure 4-5 Position of the power supply interface (example of SIMOTION D445-2 DP/PN)
Note
The power supply terminal strip must be screwed on tightly using a flat-bladed screwdriver.
4.6 Ethernet interfaces
Interfaces for connection to Industrial Ethernet
Industrial
Ethernet is a communication network with a transmission rate of 10/100/1000 Mbit/s.
SIMOTION D4x5‑2 offers the following functions via Ethernet interfaces:
● Communication with STEP 7 and SIMOTION SCOUT
● Communication between SIMOTION and SIMATIC NET OPC
The following software must be installed on the PG/PC for this function:
"SIMATIC NET SOFTNET‑S7 (S7‑OPC server)"
● Connection of HMI systems
● Communication with other devices over TCP/IP or UDP communication
● IT communication (e.g. via SIMOTION IT OPC XML‑DA).
For more information on the software packages, see
Catalog PM 21
; for the order numbers,
see the
Overview of SIMOTION documentation
(separate document).
Interfaces
4.6 Ethernet interfaces
SIMOTION D4x5-2
66 Manual, 04/2014
