Mounting and Commissioning
3.3 Commissioning
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
172
3.3.9 Creating A Test Fault Record
General
In order to be able to test the stability of the protection during switchon procedures also, switchon trials can also
be carried out at the end. Oscillographic records obtain the maximum information about the behaviour of the
protection.
Requirements
To be able to trip a test fault record, parameter Osc Fault Rec. must be configured to in the Functional Scope.
Apart from the option to store fault records via pickup of the protection function, the 7RW80 also allows for ini-
tiating a measured value recording via the DIGSI operating program, the serial interface and binary input. For
the latter, the information „>Trig.Wave.Cap.“ must have been allocated to a binary input. Triggering for the
oscillographic recording then occurs, for instance, via the binary input when the protection object is energized.
Those that are externally triggered (that is, without a protective element pickup) are processed by the device
as a normal oscillographic record. For each oscillographic record a fault record is created which is given its
individual number to ensure that assignment can be made properly. However, these recordings are not dis-
played in the fault indication buffer, as they are not fault events.
Triggering Oscillographic Recording
To trigger test measurement recording with DIGSI, click on Test in the left part of the window. Double click the
entry Test Wave Form in the list of the window.

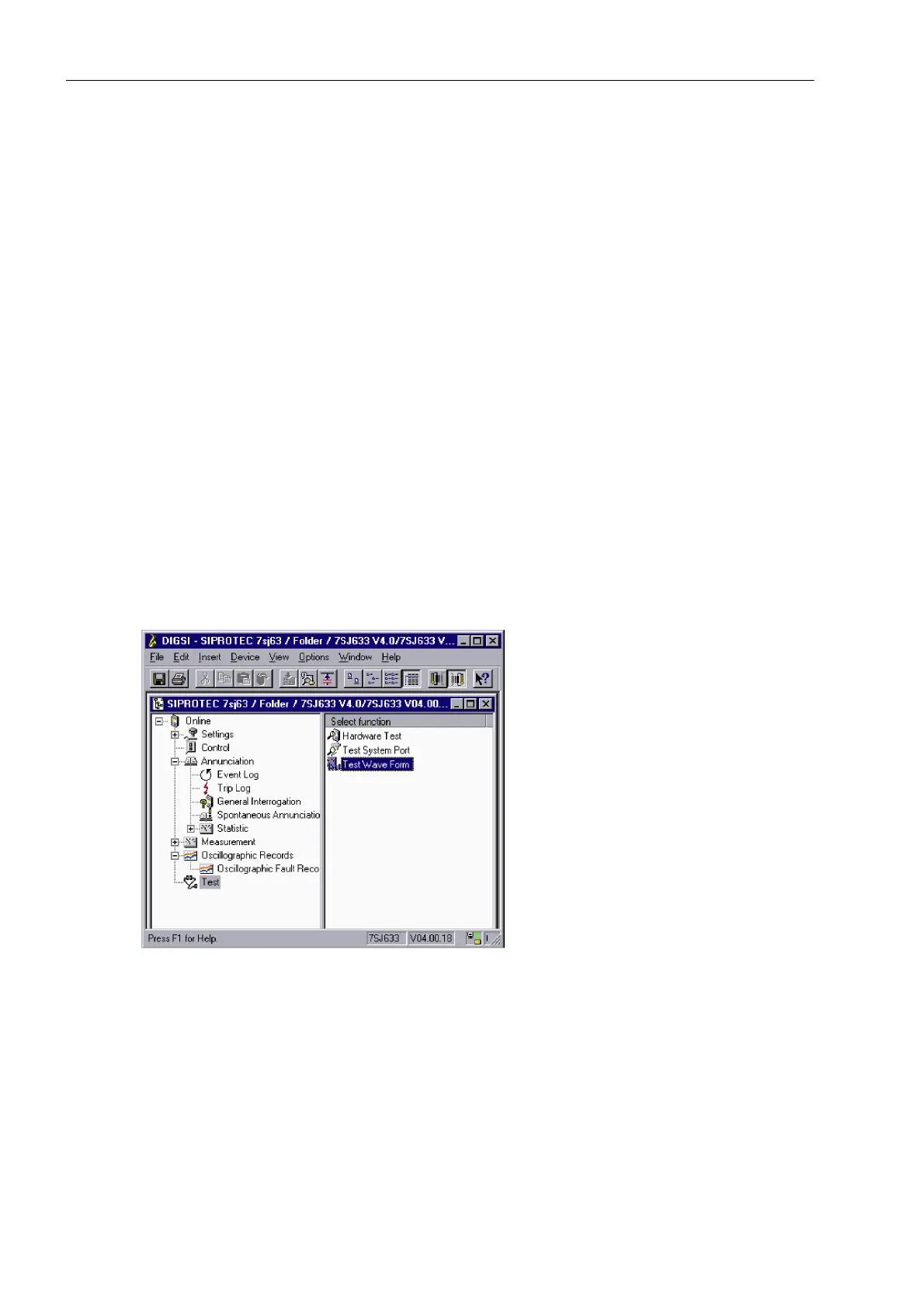

Figure 3-24 Screen for starting the test fault recording in DIGSI
Oscillographic recording is started immediately. During recording, a report is given in the left part of the status
bar. Bar segments additionally indicate the progress of the procedure.
The SIGRA or the Comtrade Viewer program is required to view and analyse the oscillographic data.
