Appendix
A.2 Terminal Assignments
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
213
A.2 Terminal Assignments
A.2.1 7RW80 — Housing for Panel Flush Mounting or Cubicle Mounting
7RW801*

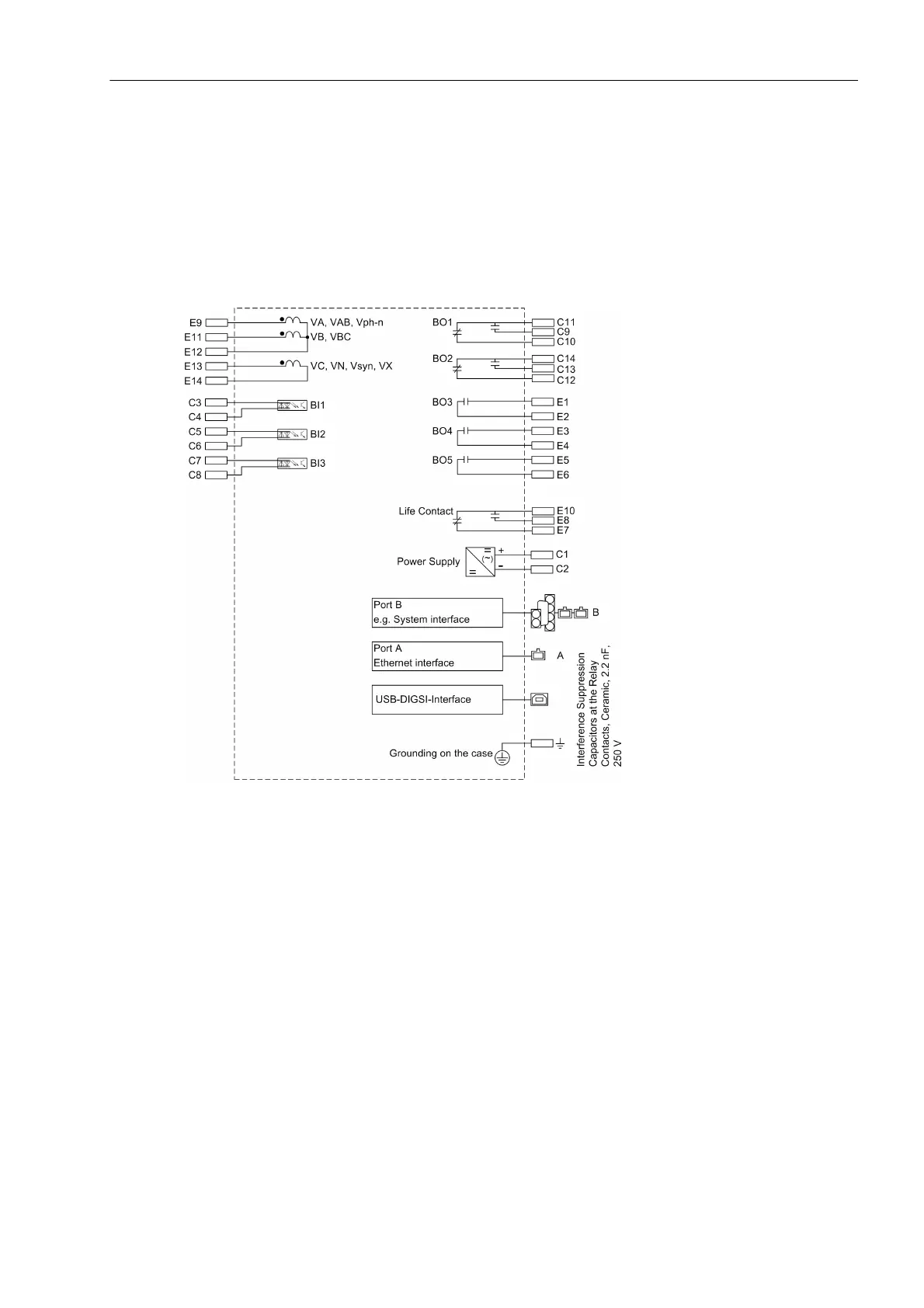

Figure A-1 General diagram 7RW801
