7 - 70
7 Transmission Repair
7E Tuff Torq K210A

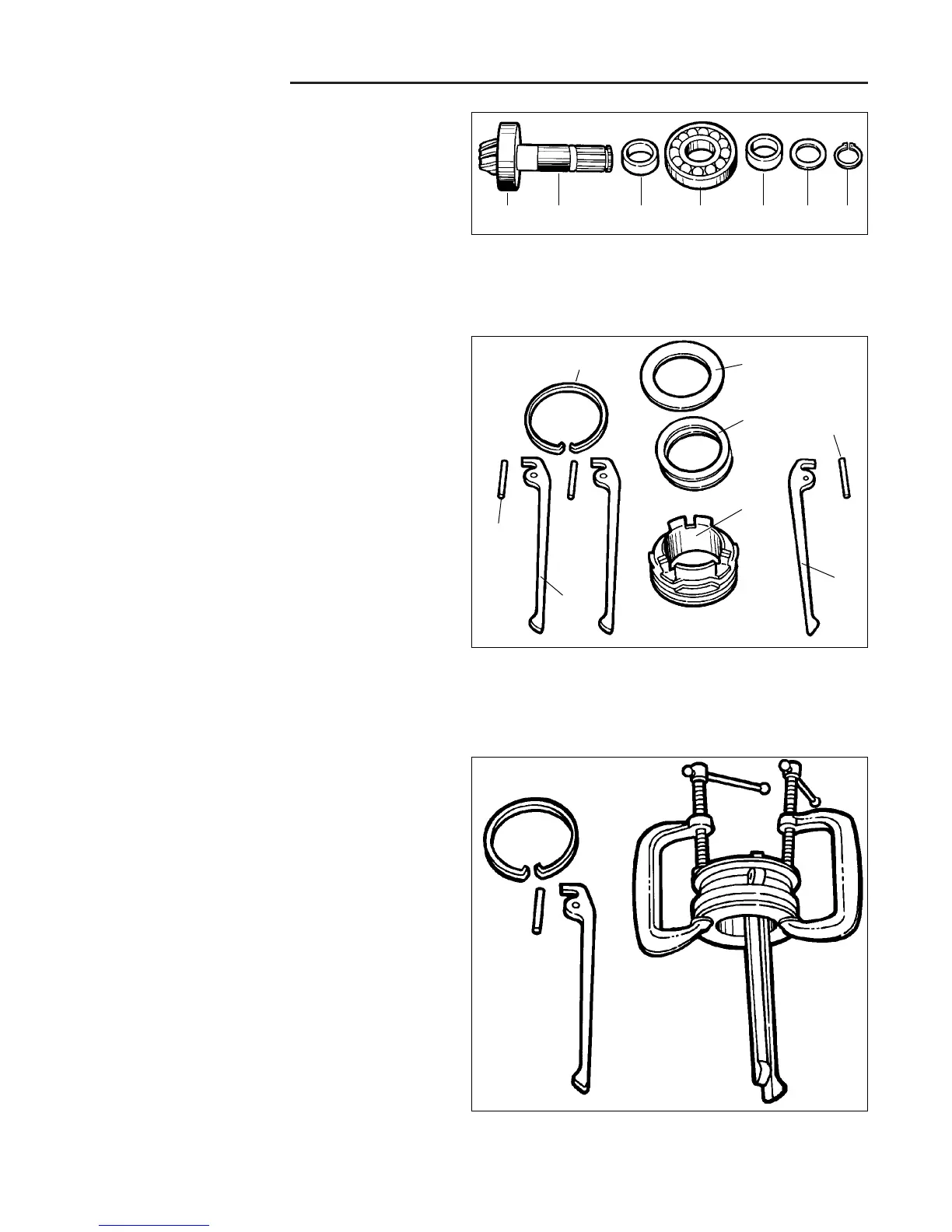

Figure E-36. Shifter Components
A B C A D E F
A. Roller Bearing
B. Input Shaft
C. Collar
D. Sleeve
E. Washer
F. External Snap Ring
Assembly
1. Assemble input shaft bearings using grease on inside
of bearings and sleeves to facilitate assembly.
2. Begin assembling shifter by placing two conical
springs (C) and washers (B) onto shift collar (E).
A
B
C
E
D
F
D
F
3. Compress washer and conical spring with C-clamp.
Install shift key (F) into inside groove of shift collar.
4. Install roll pin (D) through shift collar and shift fork.
Repeat for other two shift forks.
5. Install ring spring (A) over roll pins to retain.
Figure E-35. Assemble Input Shaft
FIgure E-37. Install Shift Key Into Shift Collar
A. Ring Spring
B. Washer Assembly
C. Conical Spring
D. Roll Pin
E. Shift Collar
F. Shift Key
