8 - 15
8 Mower Deck Repair
Arbor Repair
ARBOR REPAIR
ARBOR ASSEMBLY REMOVAL - ALL MODELS
1. Remove the mower deck (see Mower Deck Removal
and Installation).
2. Remove the belt guards as required to access
arbors.
3. Remove the PTO and arbor drive belts. See PTO
and Arbor Drive Belt Replacement.
4. Remove mower blade from the spindle to be rebuilt.
See Mower Blade Service.

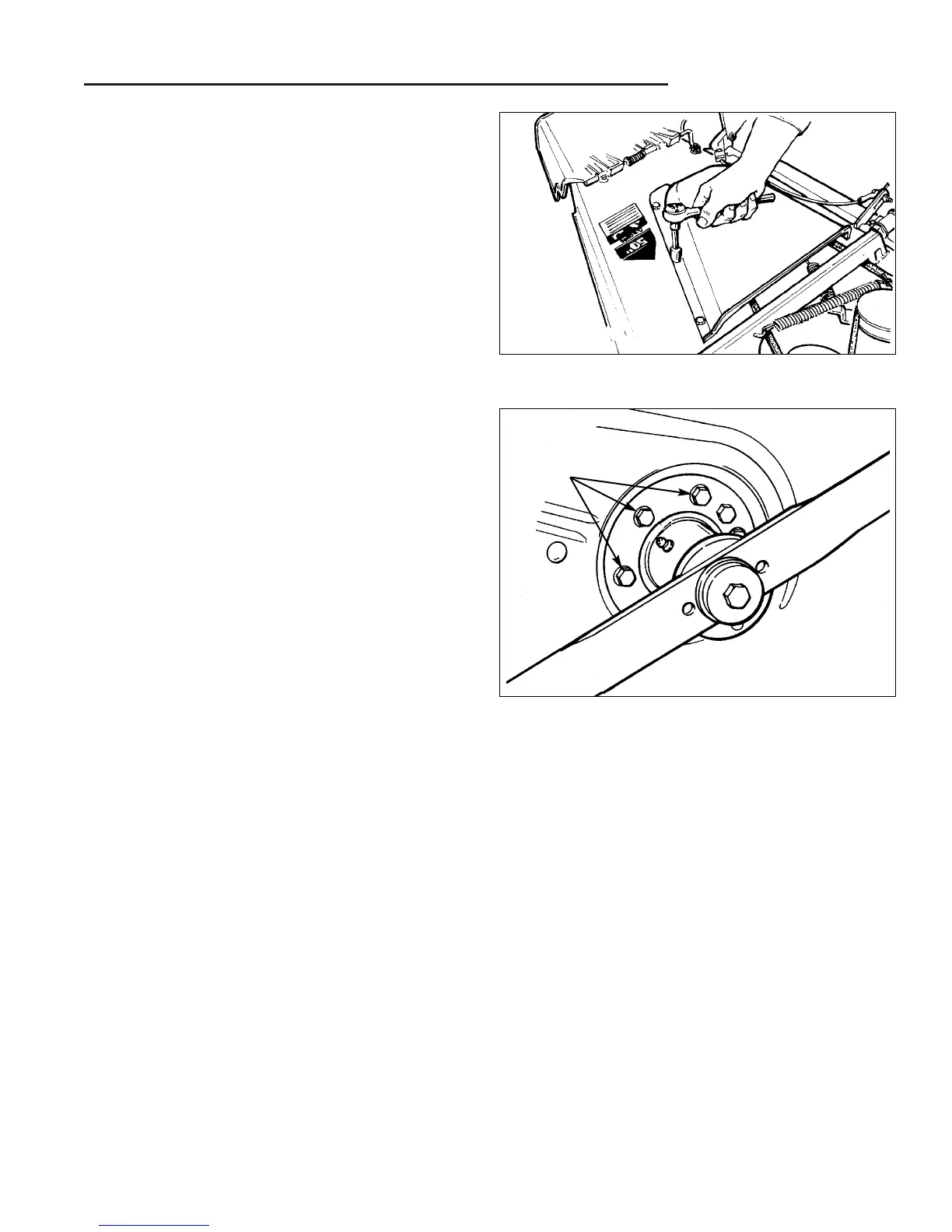

Figure 14. Remove Belt Guard
5. From the bottom of mower deck, remove the six
Taptite hex screws retaining the spindle flange to the
mower deck.
6. Remove the arbor assembly from the deck.
Figure 15. Spindle Removal
Taptite
Hex
Screws
