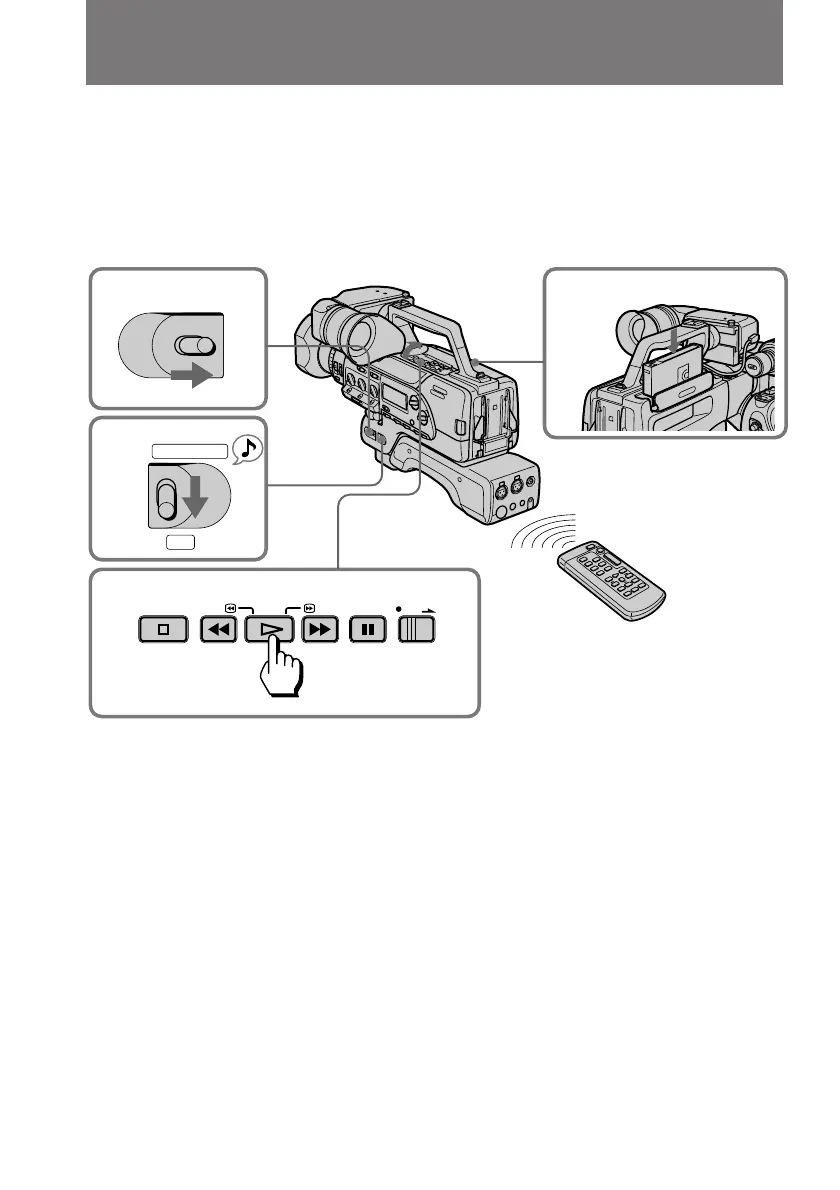

Playing back a tape
You can monitor the playback picture in the viewfinder. You can also monitor the
picture on a monitor screen, after connecting the digital camcorder to a monitor or VCR.
(1) Set the POWER switch to ON.
(2) Set CAMCORDER/VTR to VTR.
(3) Insert the recorded tape with the window facing out.
(4) Open the cover, then press · to start playback.
To stop playback, press π.
To rewind the tape, press 0.
To fast-forward the tape rapidly, press ).
To monitor the sound while viewing the playback picture in
the viewfinder
Connect headphones (not supplied) to the 2 jack or turn on the built-in speaker by
setting SPEAKER to ON.
Using the Remote Commander
You can control playback using the supplied Remote Commander. Before using the
Remote Commander, insert the size AA (R6) batteries.
Note on the DISPLAY button on the remote commander
Press DISPLAY to display the screen indicators on the monitor screen. To erase the
indicators, press DISPLAY again.

Sony DSR-200A Specifications

Lens

zoom	10 x Zoom (f = 5.9 to 59 mm)
digital zoom	20 x
filter diameter	52 mm

Camera

image device	3 CCD 1/3-inch, Interline-Transfer Sensor
picture elements	768 (h) x 494 (v) (effective), 811 (h) x 508 (v) (total)
signal system	EIA standard, NTSC Color system

Power

power requirement	DC 7.2 V (Battery operation), DC 8.4 V (AC adaptor)
power consumption	11.6 W (during camera recording)
external DC input	4-pin for DK-715 cable

Operating Environment

operating temperature	0 C˚ to 40 C˚ (32 F˚ to 104 F˚)
storage temperature	-20 C˚ to 60 C˚ (-4 F˚ to 140 F˚)
viewfinder interface	8-pin connector

Dimensions

width	216 mm
height	237 mm
depth	474 mm

Weight and Dimensions

mass without tape and batteries	3.6 kg
mass with tape and batteries	4.7 kg
dimensions (w x h x d)	216 x 237 x 474 mm
