Audio dubbing
If you recorded in Fs 32k (12 bit) recording mode, you can add stereo narration or music
to the recording.

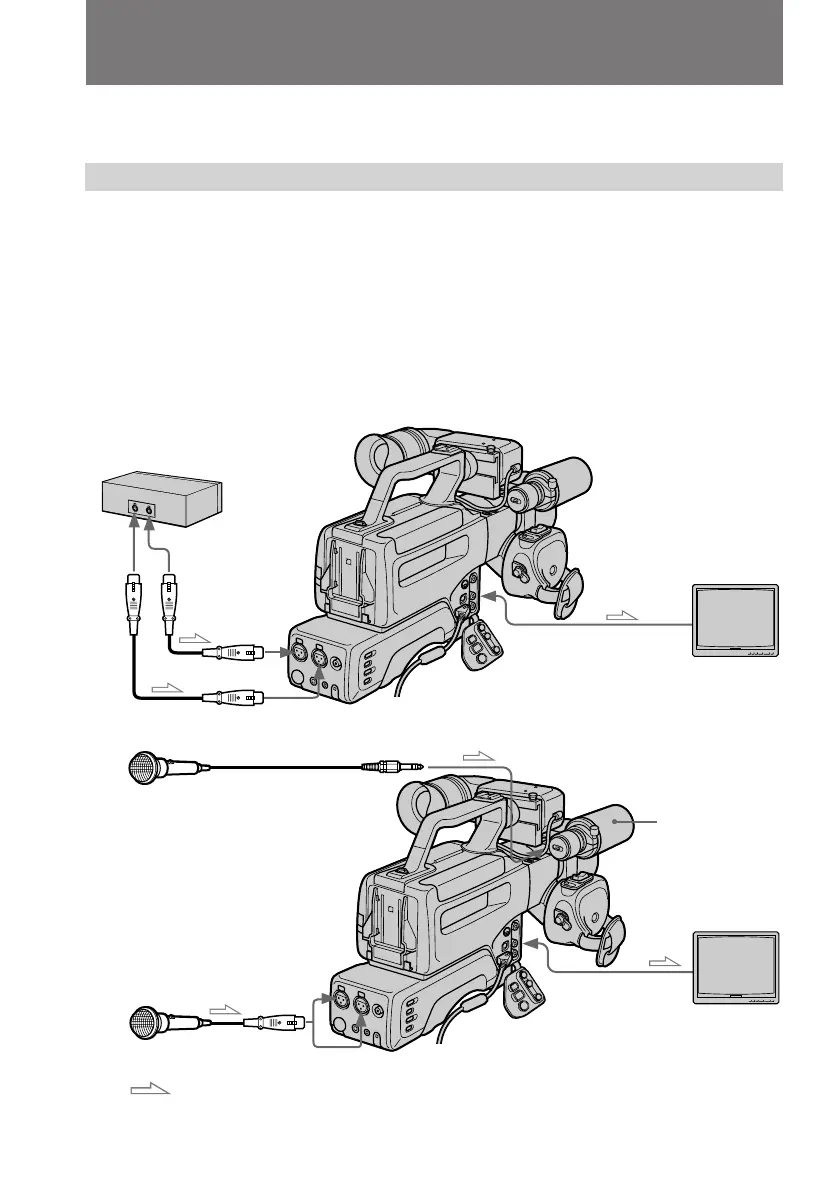

Making connections
To use additional audio line in [a]
Connect the LINE OUT jacks of an audio source to the rear AUDIO IN jacks of the
digital camcorder using an audio connecting cord with the XLR connector (not
supplied) and then set LINE/MIC to LINE.
To use an additional microphone
•Use the built-in microphone [b] or connect an external microphone (not supplied) [c]
to the MIC (PLUG IN POWER) jack, then set LINE/MIC to MIC FRONT.
•Use an external microphone (not supplied) with the XLR connector [d], connect the
rear AUDIO IN jack of the digital camcorder, then set LINE/MIC to MIC REAR.
[d]
[c]
[b]
[a]
: Signal flow
Audio source
MIC
MIC

Sony DSR-200A Specifications

Lens

zoom	10 x Zoom (f = 5.9 to 59 mm)
digital zoom	20 x
filter diameter	52 mm

Camera

image device	3 CCD 1/3-inch, Interline-Transfer Sensor
picture elements	768 (h) x 494 (v) (effective), 811 (h) x 508 (v) (total)
signal system	EIA standard, NTSC Color system

Power

power requirement	DC 7.2 V (Battery operation), DC 8.4 V (AC adaptor)
power consumption	11.6 W (during camera recording)
external DC input	4-pin for DK-715 cable

Operating Environment

operating temperature	0 C˚ to 40 C˚ (32 F˚ to 104 F˚)
storage temperature	-20 C˚ to 60 C˚ (-4 F˚ to 140 F˚)
viewfinder interface	8-pin connector

Dimensions

width	216 mm
height	237 mm
depth	474 mm

Weight and Dimensions

mass without tape and batteries	3.6 kg
mass with tape and batteries	4.7 kg
dimensions (w x h x d)	216 x 237 x 474 mm
