Sony DSR-200A User Manual

40

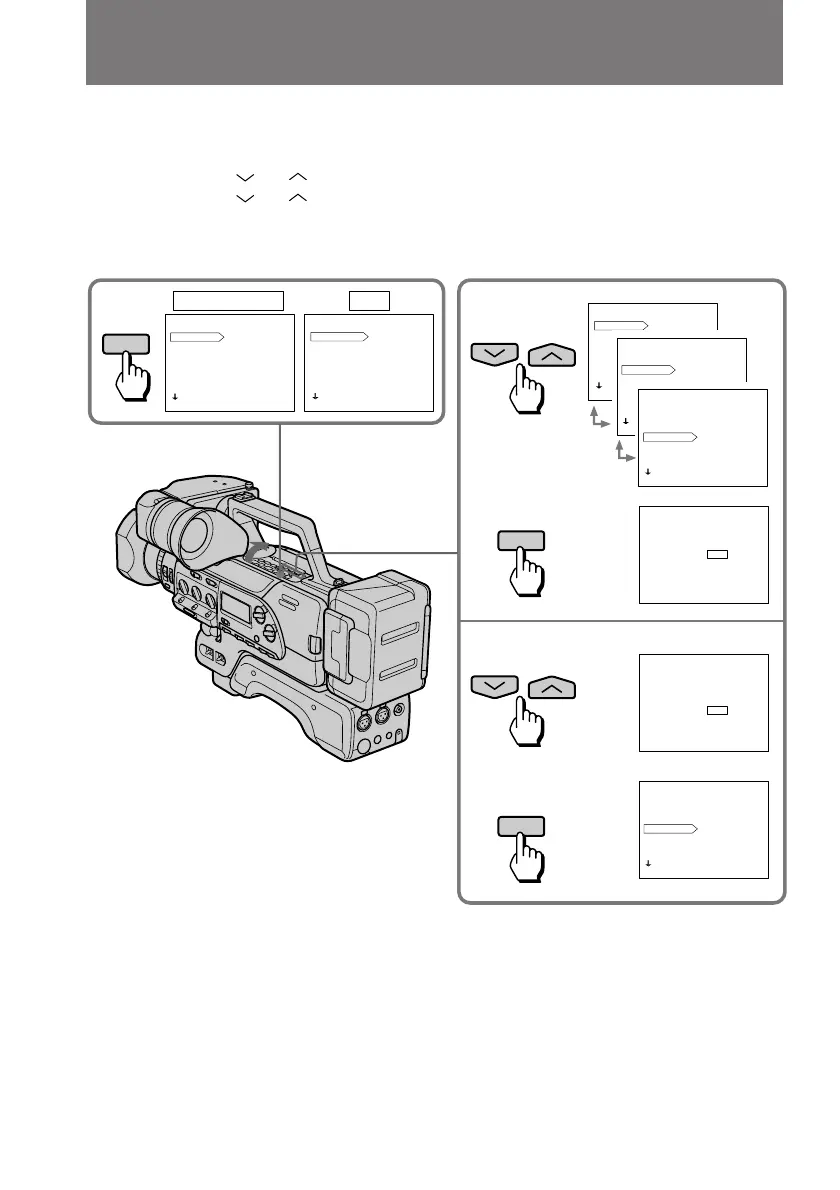

You can change the mode settings in the menu system to further enjoy the features and
functions of the digital camcorder.
(1) Open the cover, then press MENU to display the menu.
(2) Press
or to select the desired item, then press EXECUTE.
(3) Press
or to select the desired setting, then press EXECUTE.
For some items, you may need to repeat steps 2 and 3.
(4) Press MENU to erase the menu display.
Changing the mode settings
1
1
2
1
2
2
3
EXECUTE
EXECUTE
MENU
MENU
DIGITAL F ZOOM/WIDE
D ZOOM
16:9WIDE
ZEBRA
TC IND
DATE/TIME
COMMANDER
[ MENU ] : END
MENU
DIGITAL F
D ZOOM OFF
16:9WIDE
ZEBRA
TC IND
DATE/TIME
COMMANDER
[ MENU ] : END
CAMCORDER
MENU
DIGITAL F ZOOM/WIDE
D ZOOM
16:9WIDE
ZEBRA
TC IND
DATE/TIME
COMMANDER
[ MENU ] : END
VTR
MENU
TC IND ON
COMMANDER
BEEP
AUDIO MIX
WIDE PB
CM SEARCH
DATA CODE
[ MENU ] : END
MENU
DIGITAL F
D ZOOM
16:9WIDE
ZEBRA OFF
TC IND
DATE/TIME
COMMANDER
[ MENU ] : END
MENU
ZEBRA
[ MENU ] : END
OFF
ON
MENU
ZEBRA
[ MENU ] : END
OFF
ON
MENU
DIGITAL F
D ZOOM
16:9WIDE
ZEBRA ON
TC IND
DATE/TIME
COMMANDER
[ MENU ] : END

Sony DSR-200A Specifications

Lens

zoom	10 x Zoom (f = 5.9 to 59 mm)
digital zoom	20 x
filter diameter	52 mm

Camera

image device	3 CCD 1/3-inch, Interline-Transfer Sensor
picture elements	768 (h) x 494 (v) (effective), 811 (h) x 508 (v) (total)
signal system	EIA standard, NTSC Color system

Power

power requirement	DC 7.2 V (Battery operation), DC 8.4 V (AC adaptor)
power consumption	11.6 W (during camera recording)
external DC input	4-pin for DK-715 cable

Operating Environment

operating temperature	0 C˚ to 40 C˚ (32 F˚ to 104 F˚)
storage temperature	-20 C˚ to 60 C˚ (-4 F˚ to 140 F˚)
viewfinder interface	8-pin connector

Dimensions

width	216 mm
height	237 mm
depth	474 mm

Weight and Dimensions

mass without tape and batteries	3.6 kg
mass with tape and batteries	4.7 kg
dimensions (w x h x d)	216 x 237 x 474 mm
