Sony DSR-200A User Manual

38
Advanced operations
Using alternative power sources
Place
Indoors
Outdoors
Accessory to be used (not supplied)
AC power adaptor AC-V615
Battery pack NP-F950, NP-F750
Battery adaptor NPA-10000
Power source
House current
Battery pack
Note on AC power adaptor
Use the recommended AC power adaptor, such as AC-V615.
Note on power sources
Disconnecting the power source or removing the battery pack during recording or
playback may damage the inserted tape. If this happens, restore the power supply again
immediately.
Using the house current

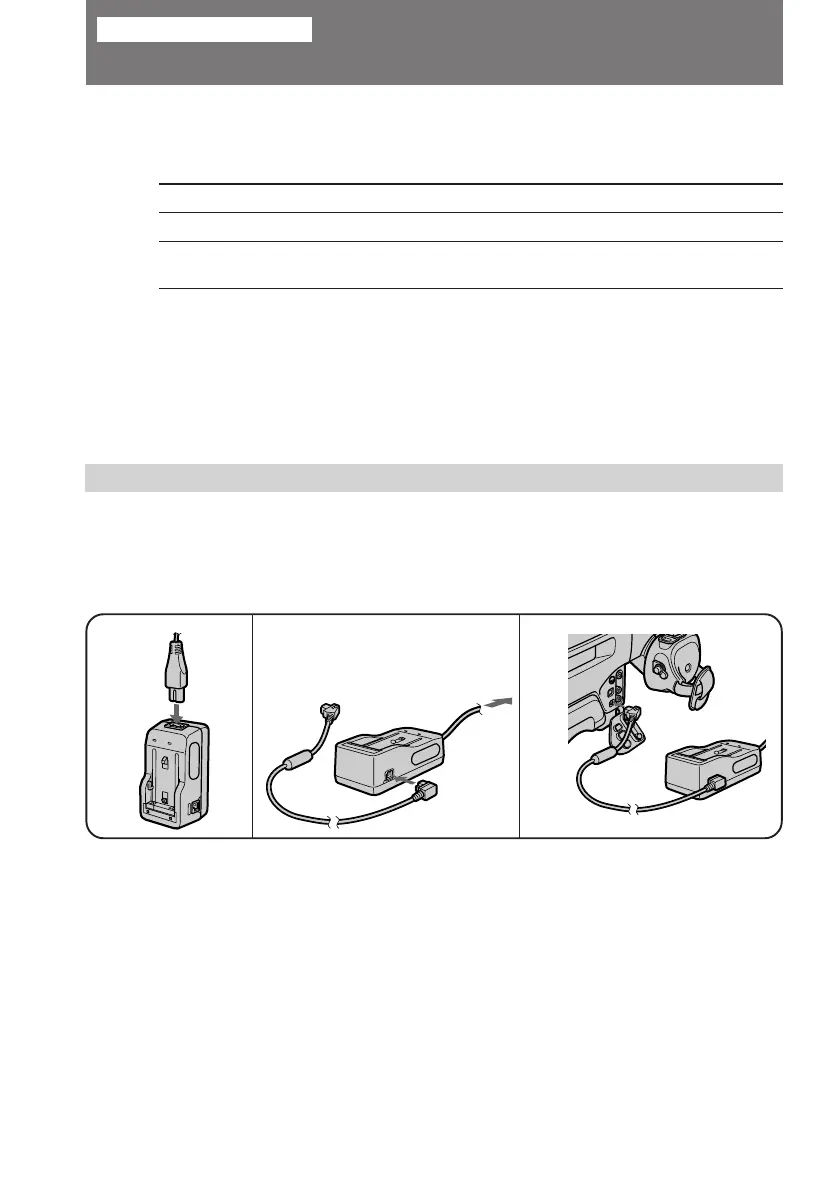

(1) Connect the power cord to the AC power adaptor.
(2) Connect the power cord to a wall outlet, then connect the connecting cord (not
supplied) to the DC OUT jack on the AC power adaptor.
(3) Connect the connecting cord to the DC IN jack on the digital camcorder.
1
2 3
DC IN
DC OUT
You can choose any of the following power sources for your digital camcorder: battery
pack and the house current. Choose the appropriate power source depending on where
you want to use your digital camcorder.

Sony DSR-200A Specifications

Lens

zoom	10 x Zoom (f = 5.9 to 59 mm)
digital zoom	20 x
filter diameter	52 mm

Camera

image device	3 CCD 1/3-inch, Interline-Transfer Sensor
picture elements	768 (h) x 494 (v) (effective), 811 (h) x 508 (v) (total)
signal system	EIA standard, NTSC Color system

Power

power requirement	DC 7.2 V (Battery operation), DC 8.4 V (AC adaptor)
power consumption	11.6 W (during camera recording)
external DC input	4-pin for DK-715 cable

Operating Environment

operating temperature	0 C˚ to 40 C˚ (32 F˚ to 104 F˚)
storage temperature	-20 C˚ to 60 C˚ (-4 F˚ to 140 F˚)
viewfinder interface	8-pin connector

Dimensions

width	216 mm
height	237 mm
depth	474 mm

Weight and Dimensions

mass without tape and batteries	3.6 kg
mass with tape and batteries	4.7 kg
dimensions (w x h x d)	216 x 237 x 474 mm
