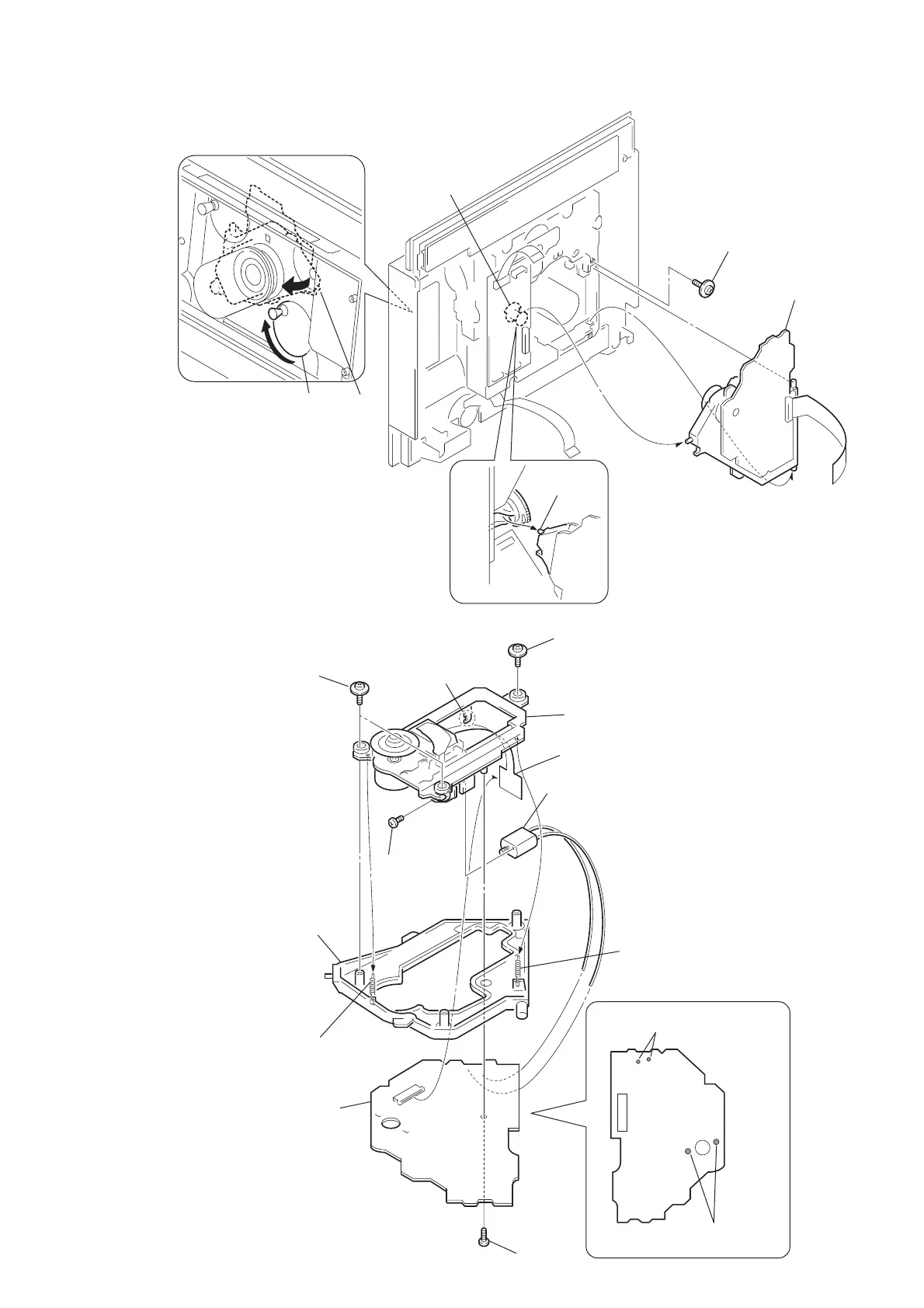

3-17. Base Unit (BU-31BD63A)
3-18. Holder Assy, Sled Motor Assy
5 base unit
(BU-31BD)
2 screw
(+PTPWH M2.6)
cam
shaft
SPT pulley assy
shaft
1
1
4
3
Rotate the SPT pulley assy in the direction of to move the Base unit shaft
forward.
(BLK)
9 two screws
(+PTPWH M2.6)
8 screw
(+PTPWH M2.6)
qs screw
(+P 2
× 3)
qd sled motor assy
q; h ook
qa base unit
holder assy
6 tension coil spring (holder)
7 tension coil spring (holder)
5 BD board
1 Remove solder
(two portions ).
2 Remove solder
(two portions ).
4 flxible board
3 screw
(+BTP 2
× 8 )
(RED)
