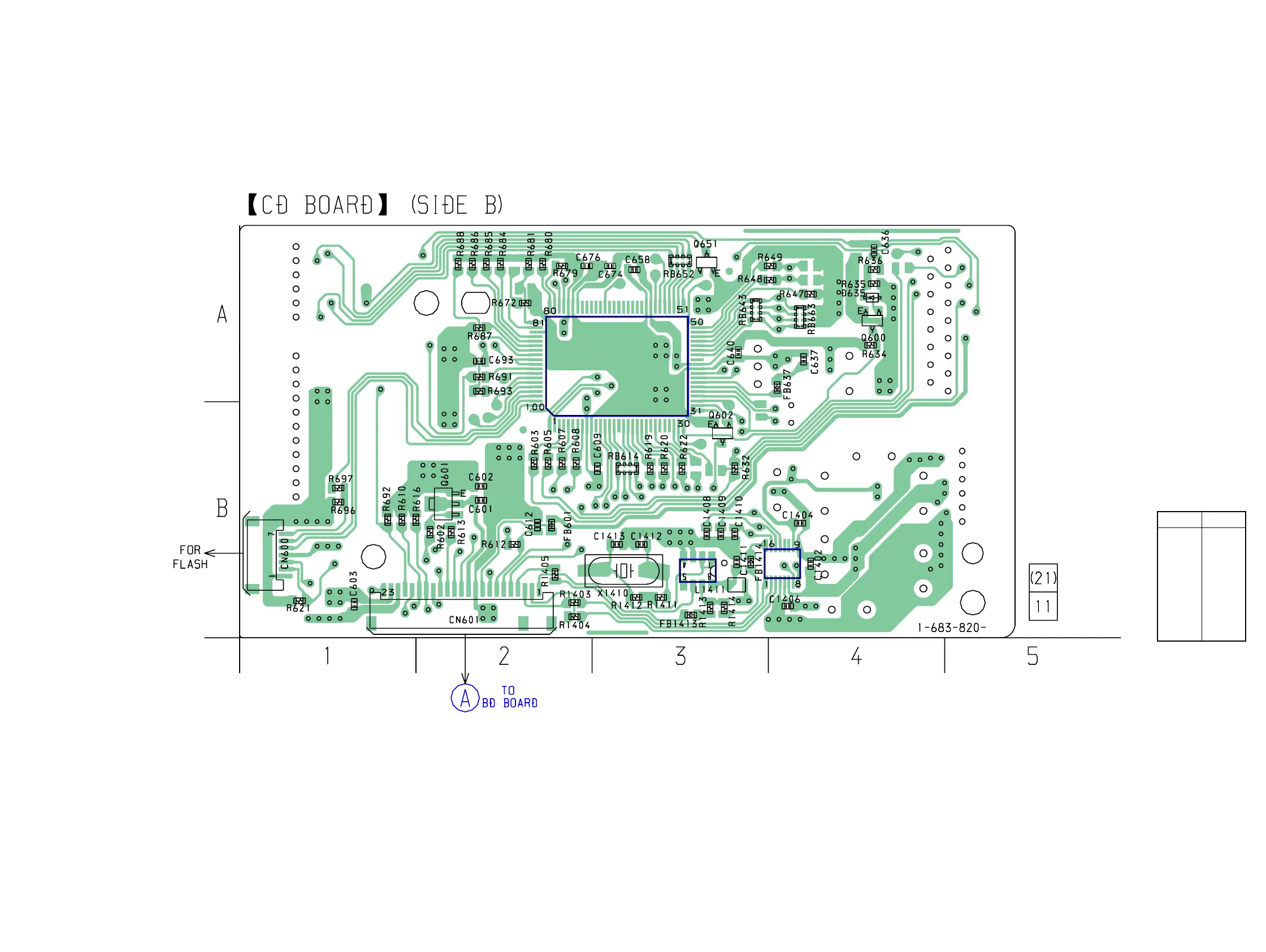

6-8. Printed Wiring Board CD Section (Side B)
• See page 25 for Circuit Boards Location.
Ref. No. Location
D635 A-4
IC600 A-3
IC1400 B-4
IC1410 B-3
Q600 A-4
Q601 B-2
Q602 B-3
Q651 A-3
• Semiconductor
Location
(Page 26)
IC600
IC1410
IC1400
