18
HCD-L1

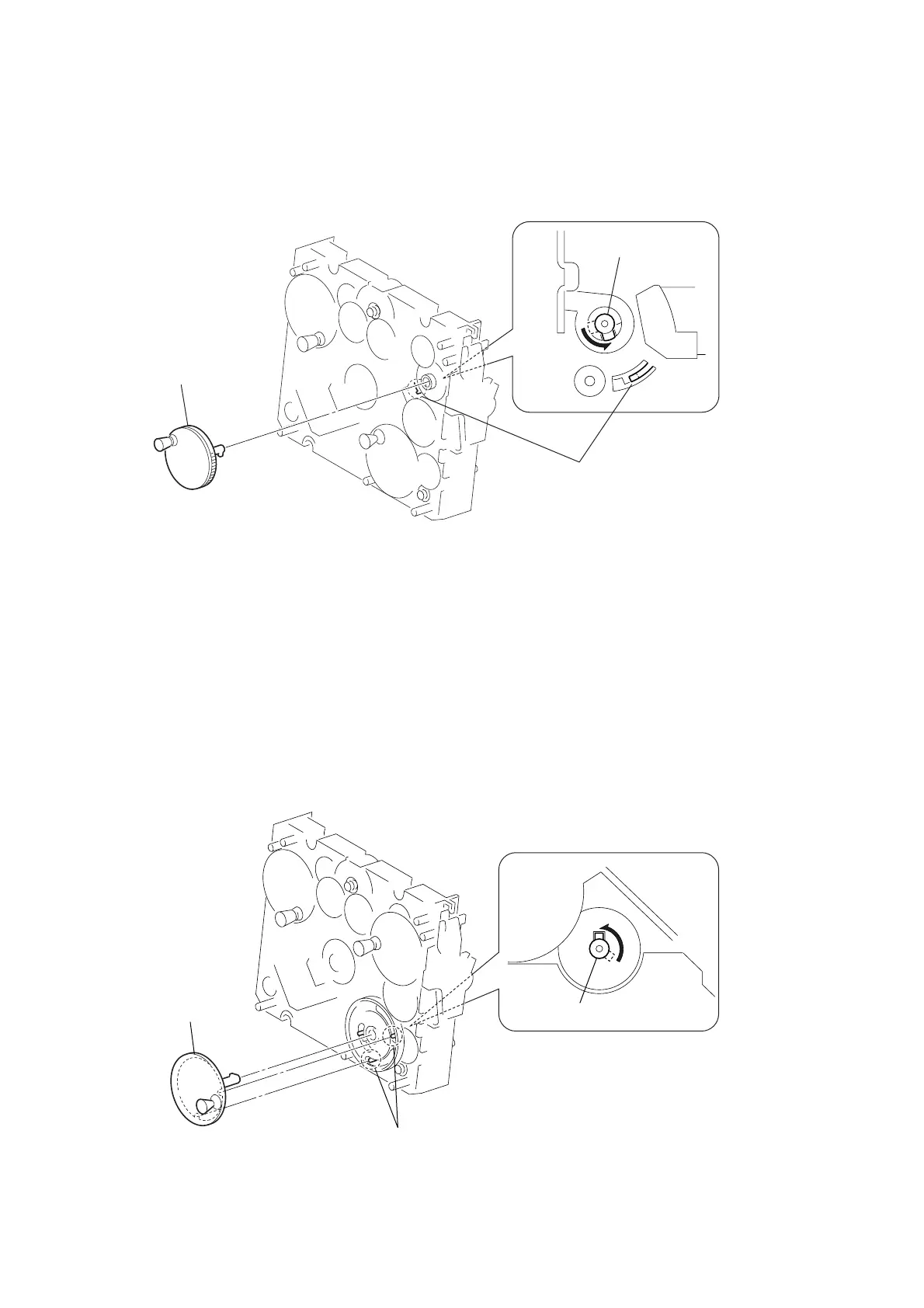

3-19. RTR Pulley Assy
3-20. SPT Pulley Assy
3 RTR pulley assy
RTR pulley assy
1 claw
2
2
Disengage the claw and rotate the RTR pulley assy in the direction of , and
remove your hands at the position where the shaft agrees with the hole shape on the
chassis.
2 SPT pulley assy
SPT pulley assy
1
1
When installing, align the protruded portion of the KT gear with groove of the SPT
pulley assy.
Rotate the SPT pulley assy in the direction of , and remove your hands
at the position where the shaft agrees with the hole shape on the chassis.
