Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

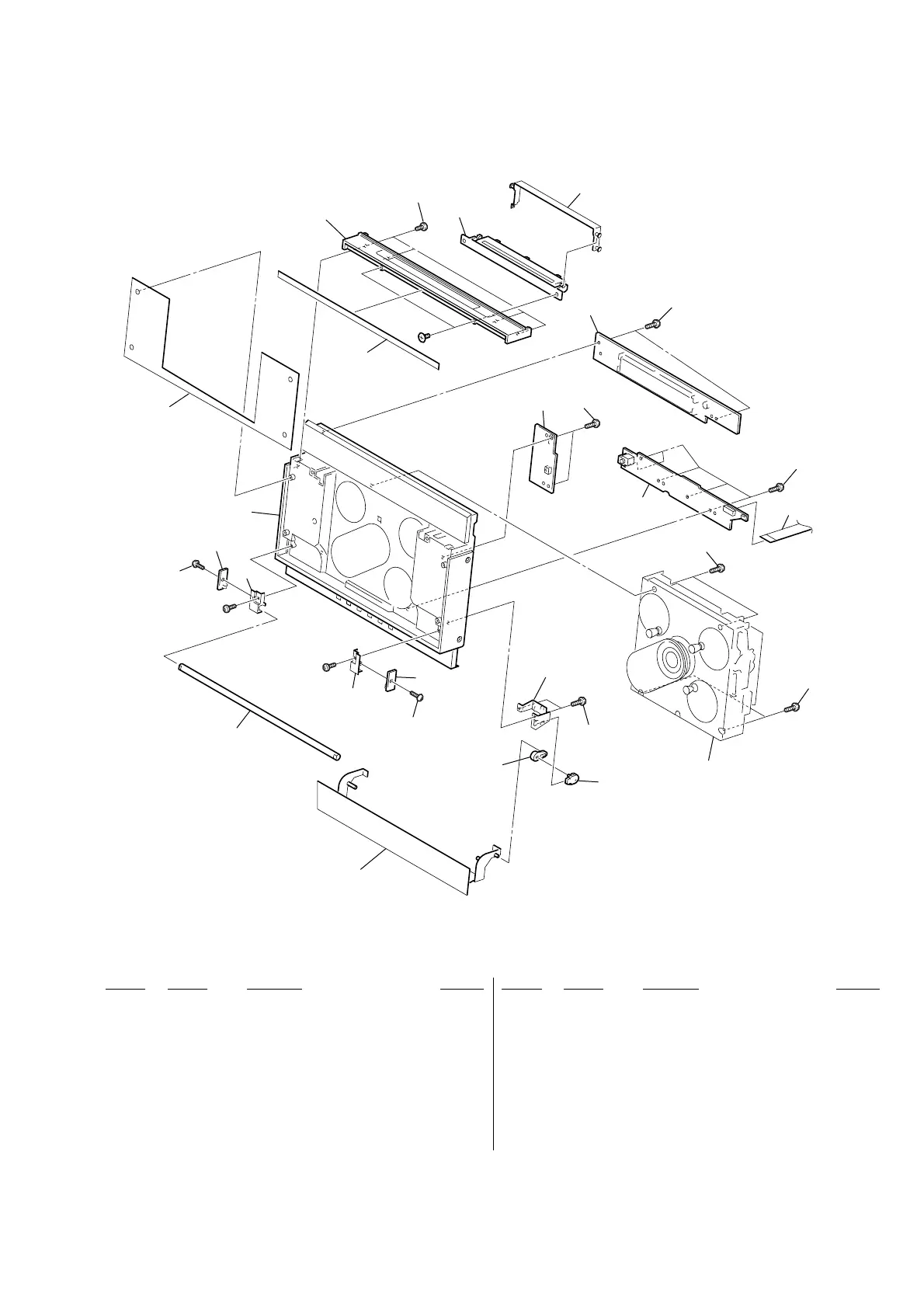

7-3. Frot Panel Section
not supplied
not supplied
not supplied
not supplied
CD mechanism section
(CDM71A)
103
104
106
102
102
114
115
102
102
113
102
112
108
110
102
107
111
116
102
105
101
#8
#9
#8
109
102
102
101 4-238-506-01 INDICATOR (BS)
102 4-951-620-01 SCREW (2.6X8), +BVTP
103 1-683-826-11 LED (R) BOARD
104 4-238-505-01 HOLDER (LED-R)
105 4-238-504-01 HOLDER (LED-L)
106 1-683-825-11 LED (L) BOARD
107 X-4954-490-1 PANEL ASSY, FRONT (AEP,UK,SP)
107 X-4954-511-1 PANEL ASSY, FRONT (US,CND)
108 A-4728-114-A TOUCH SWITCH BOARD, COMPLETE
109 A-4728-112-A FL (L1) BOARD, COMPLETE
110 A-4728-113-A SWITCH BOARD, COMPLETE
111 4-239-086-02 PLATE (CD-LID), INTERCEPTION
112 4-238-544-01 DAMPER
113 1-769-947-11 WIRE (FLAT TYPE) (11 CORE)
114 X-4954-491-1 LID (CD) ASSY
115 X-4954-491-1 ASSY, HOLDER (CD LID)
116 4-238-508-01 PLATE (CD-LID), ORAMENTAL
#8 7-685-533-19 SCREW +BT2.6X6 TYPE2 N-S
