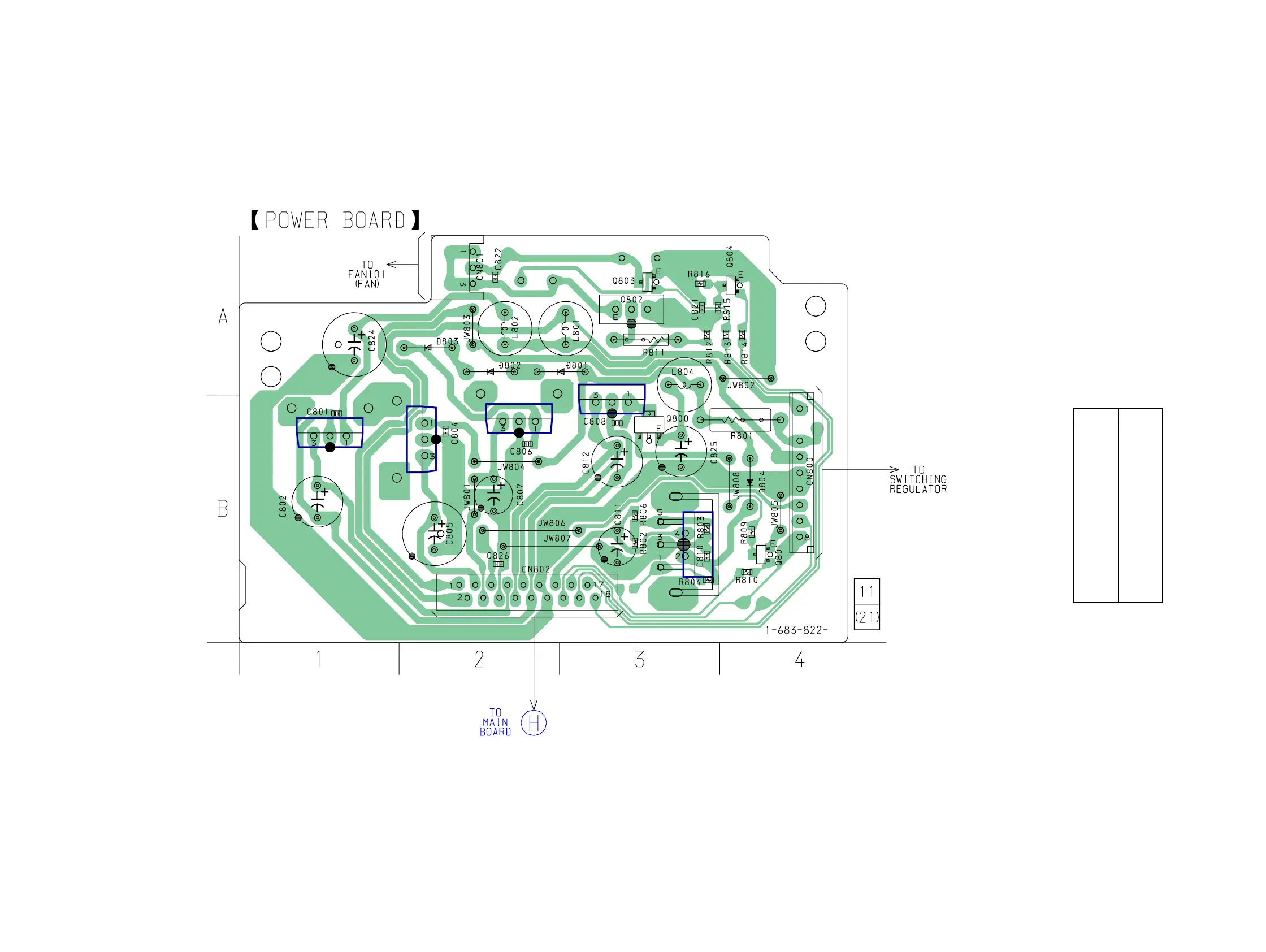

6-23. Printed Wiring Board POWER Section
• See page 25 for Circuit Boards Location.
Ref. No. Location
IC 800 B-1
IC 801 B-2
IC 802 B-2
IC 803 B-3
IC 804 B-3
D801 A-3
D802 A-2
D803 A-2
D804 B-4
Q800 B-3
Q801 B-4
Q802 A-3
Q803 A-3
Q804 A-4
• Semiconductor
Location
(Page 34)
IC804
IC800
IC801
IC802
IC803
