2727
HCD-L1
• See page 25 for Circuit Boards Location.

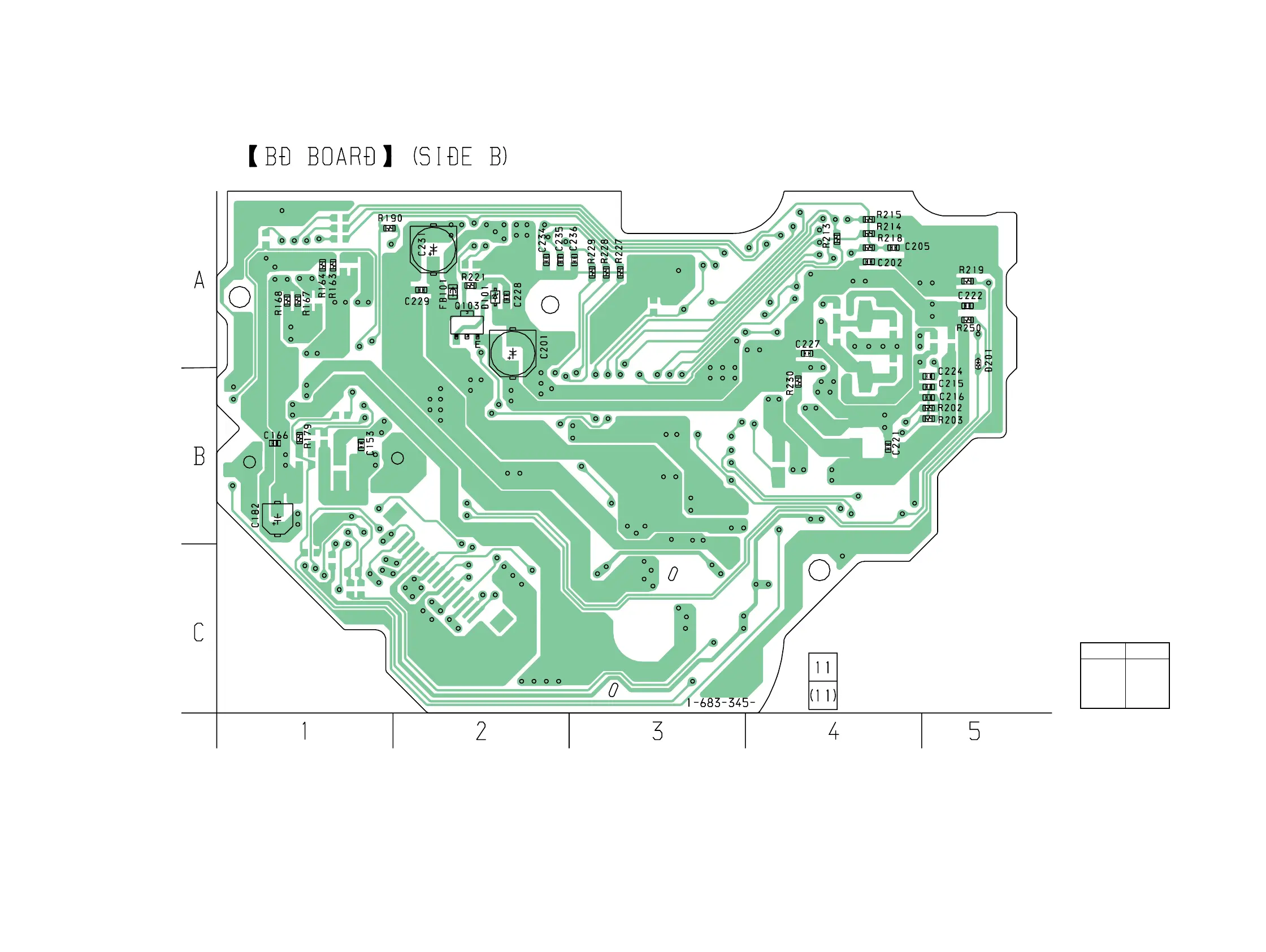

6-4. Printed Wiring Board BD Section (Side B)
Ref. No. Location
D101 A-2
D201 A-5
Q103 A-2
• Semiconductor
Location
