52
HCD-L1

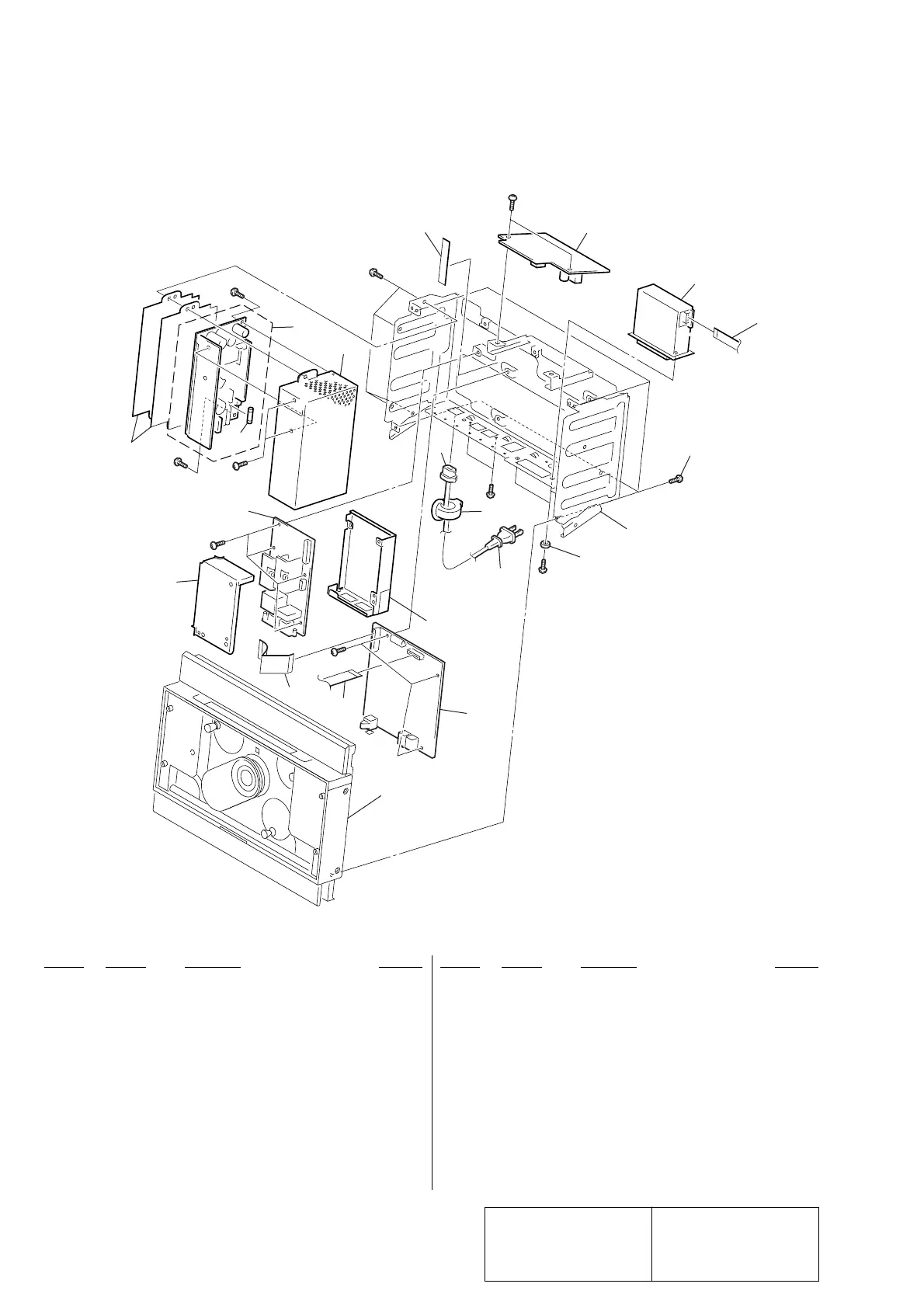

7-2. Chassis Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
F901
59
53
51
52
63
58
62
56
54
60
55
57
#3
#3
#3
#3
#3
#3
#3
#3
#3
61
front panel section
51 A-4728-100-A MAIN BOARD, COMPLETE (AEP,UK)
51 A-4728-120-A MAIN BOARD, COMPLETE (US,CND)
51 A-4728-124-A MAIN BOARD, COMPLETE (SP)
52 1-769-969-11 WIRE (FLAT TYPE) (13 CORE)
53 A-4728-118-A AMP BOARD, COMPLETE
0 54 1-468-654-11 REGULATOR, SWITCHING (US,CND)
0 54 1-468-655-11 REGULATOR, SWITCHING (AEP,UK)
0 54 1-468-656-11 REGULATOR, SWITCHING (SP)
55 1-693-529-51 TUNER (FM/AM) (AEP,UK)
55 1-693-531-11 TUNER (FM/AM) (SP)
55 1-693-534-11 TUNER (FM/AM) (US,CND)
56 3-831-441-99 CUSHION, SPEAKER
57 A-4728-117-A POWER BOARD, COMPLETE
58 3-703-244-11 BUSHING (2104), CORD
0 59 1-777-071-81 CORD, POWER (UK)
0 59 1-824-023-11 CORD, POWER (AEP,SP)
0 59 1-824-025-11 CORD, POWER (US,CND)
60 4-951-620-01 SCREW (2.6X8), +BVTP
61 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)(US,CND,SP)
61 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
62 1-543-982-12 CORE, FERRITE
63 1-824-249-11 WIRE (FLAT TYPE) (23 CORE)
0 F901 1-576-233-11 FUSE (H, B, C)
#3 7-685-646-79 SCREW +BVTP3X8 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
